Chart C-8 - Acceleration Correction Check
Chart C-8 - Acceleration Correction Check

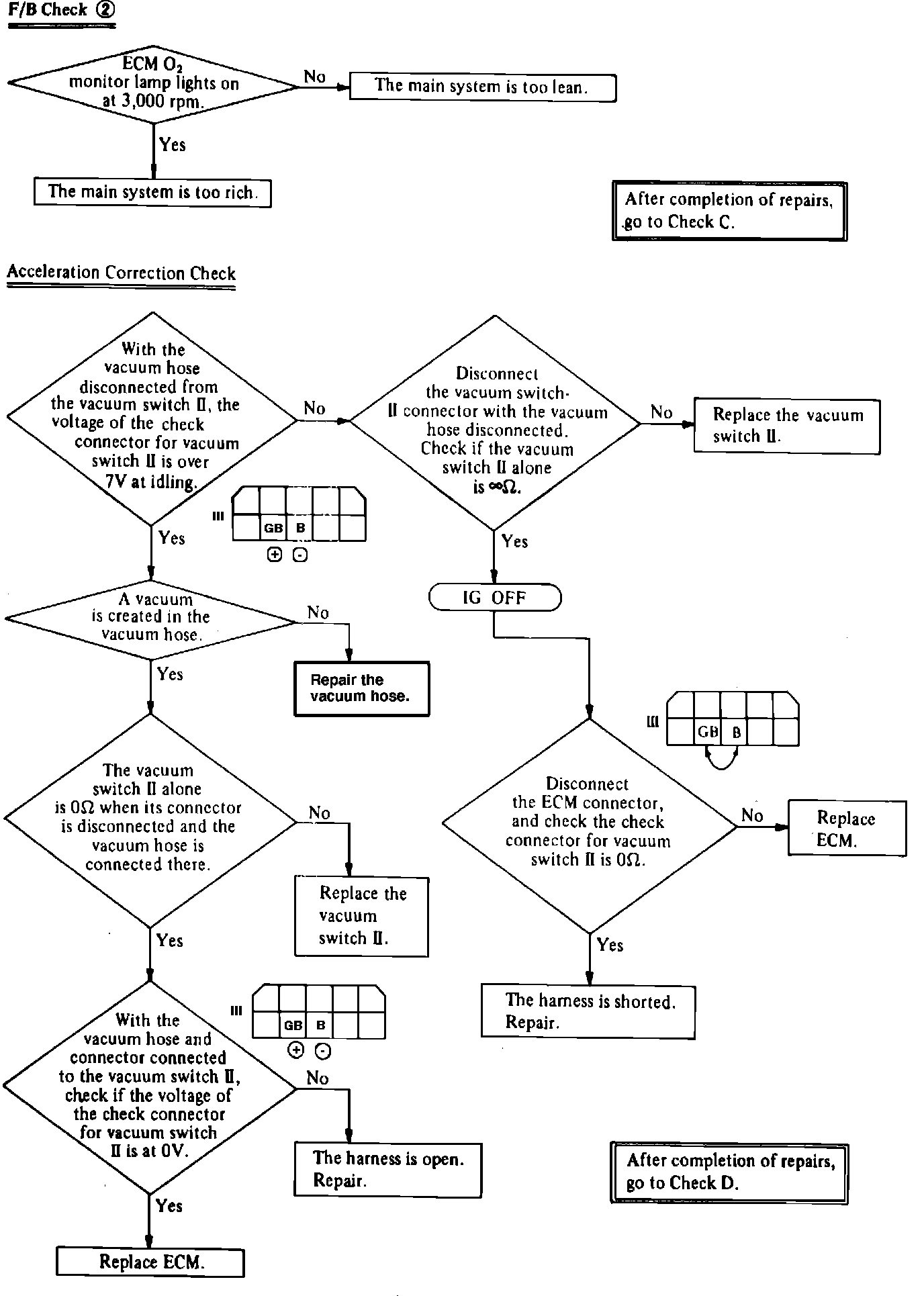

Fig.10 Electronically controlled carburetor troubleshoooting. Chart C-8:
