Information Bus: Diagrams

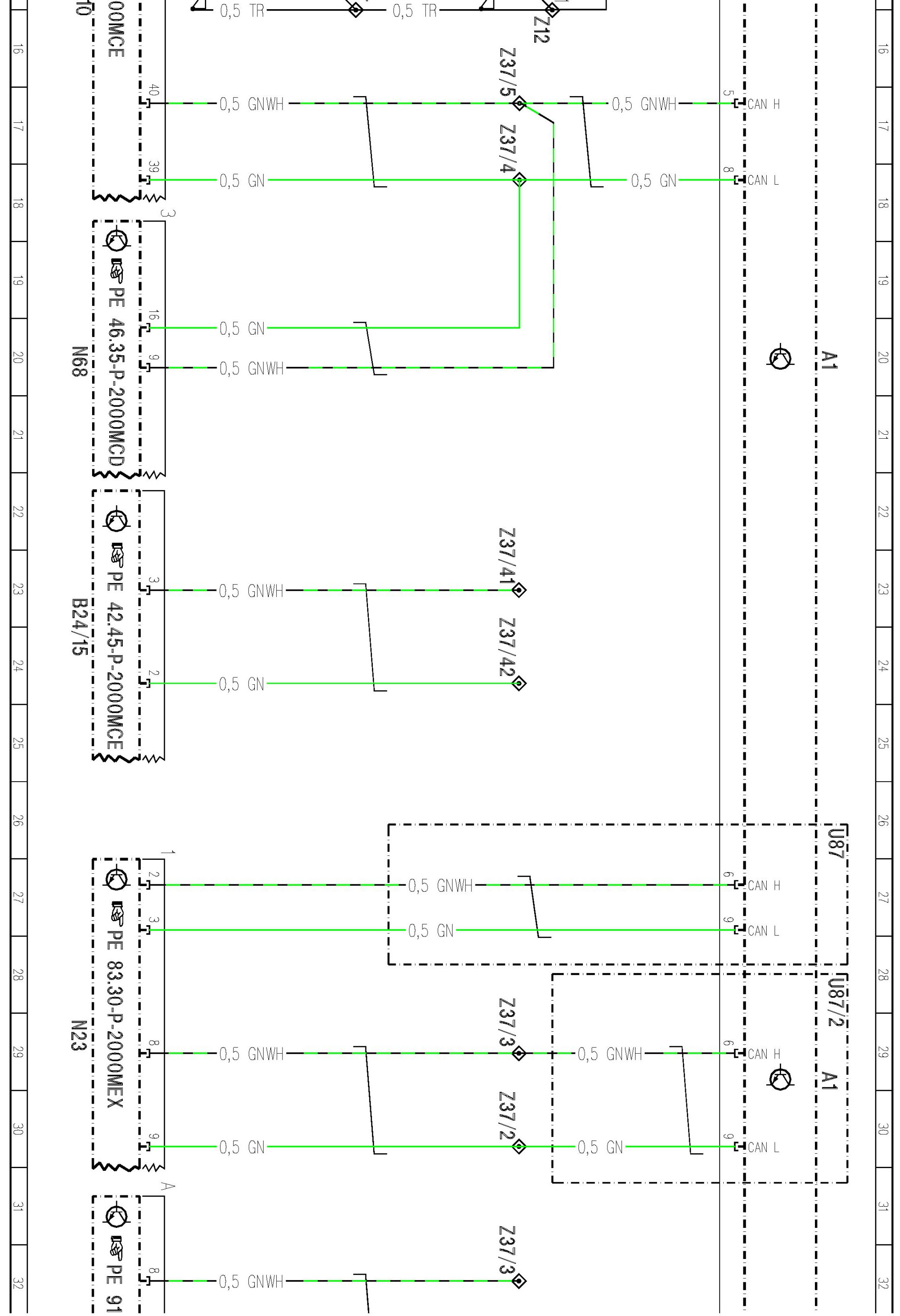

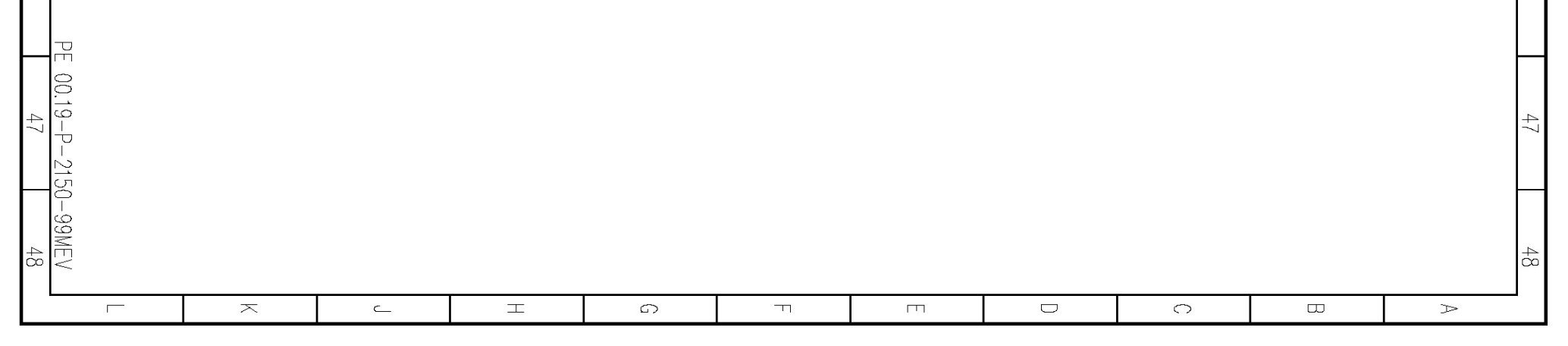

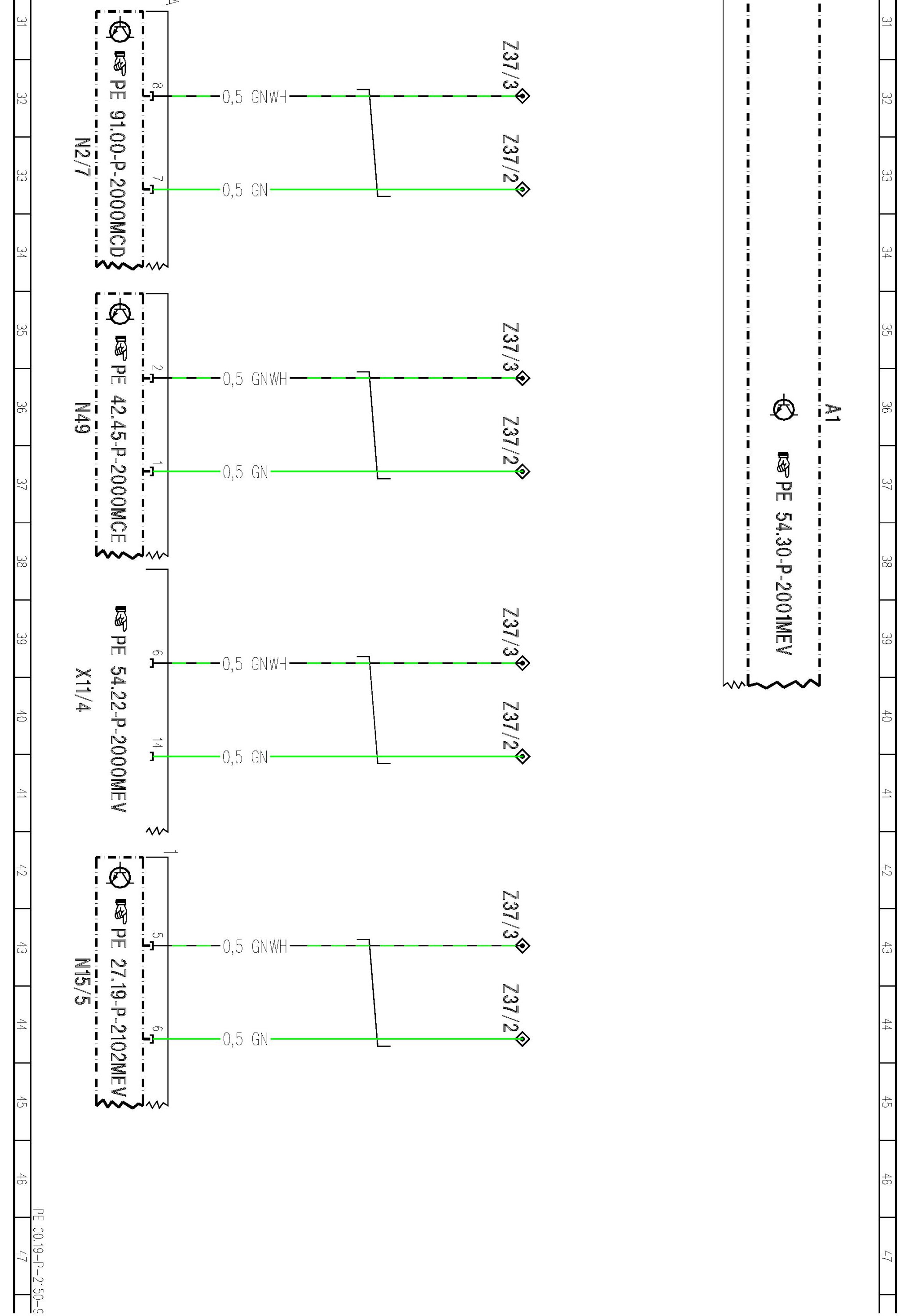

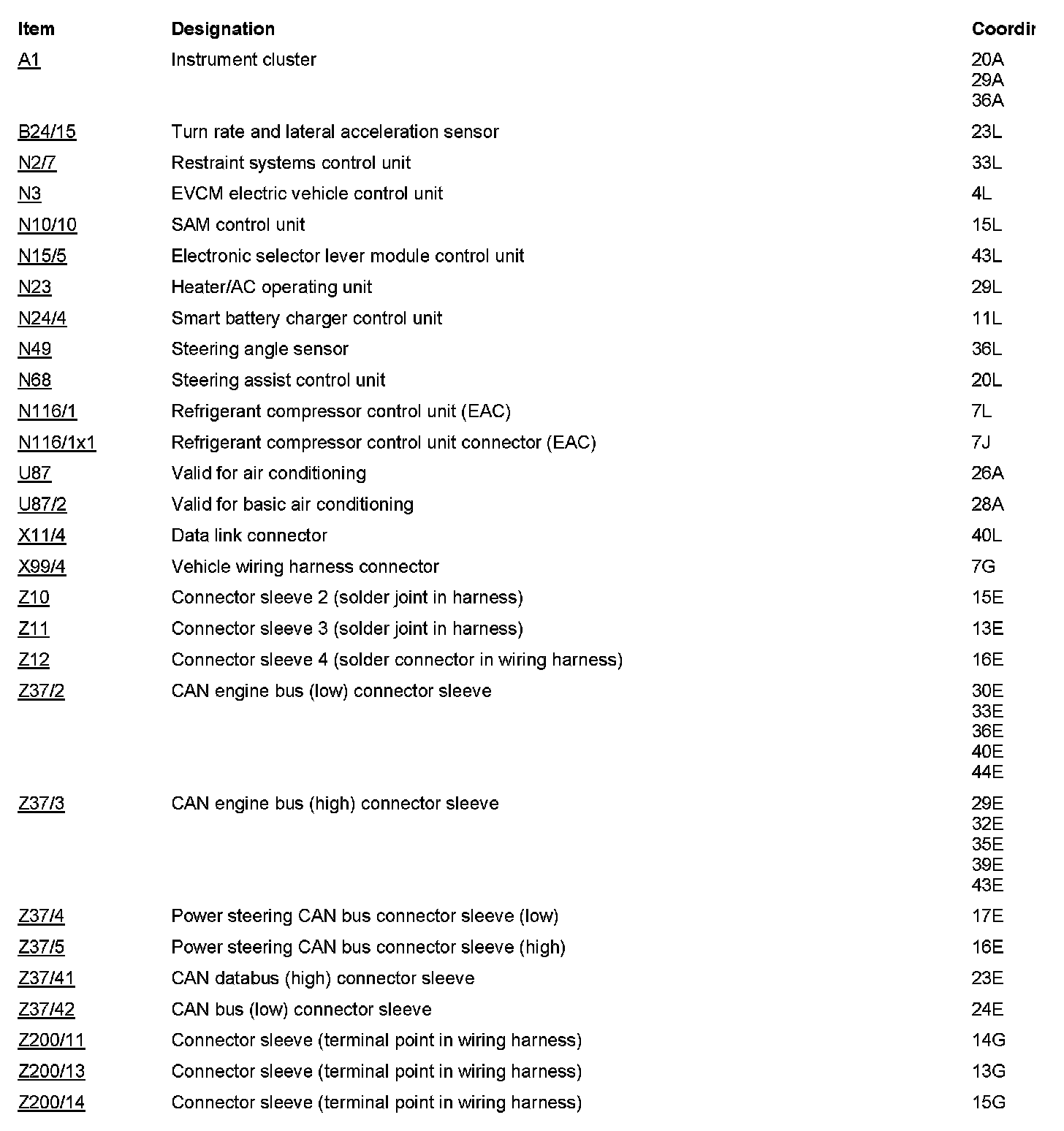

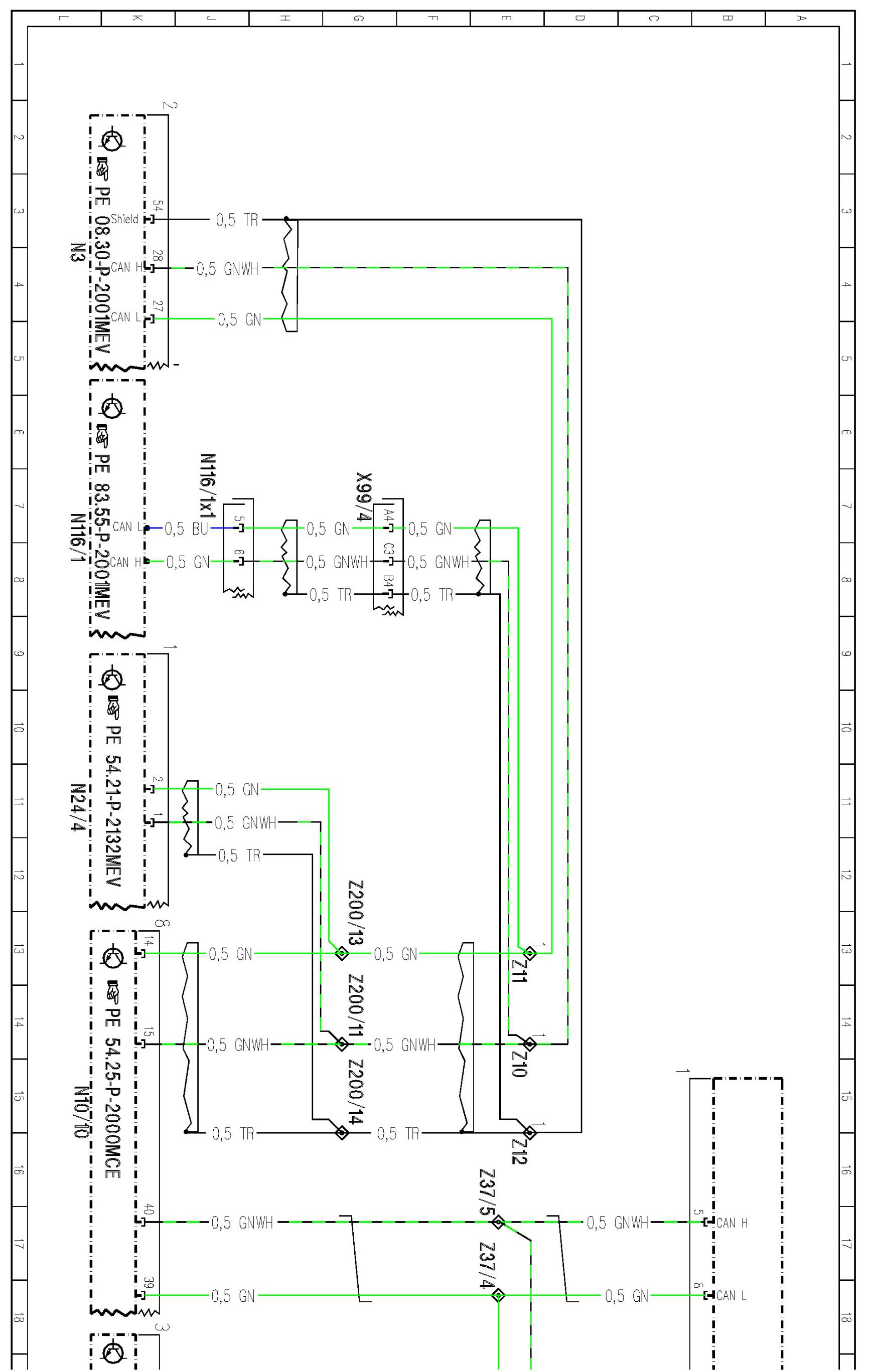

PE00.19-P-2150MEV CAN Bus

451 00 Multi-function Circuits
Model 451.391/ 491
