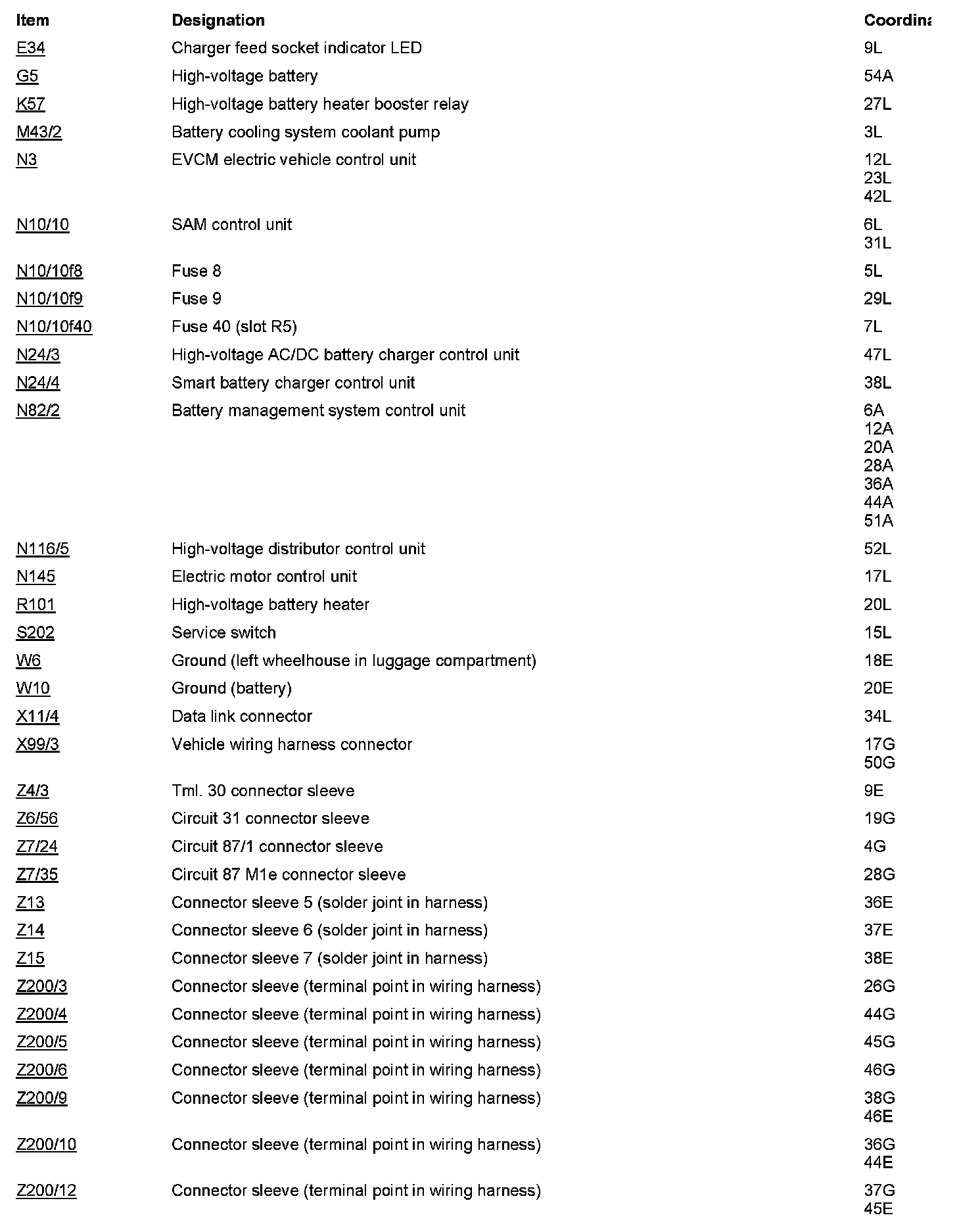

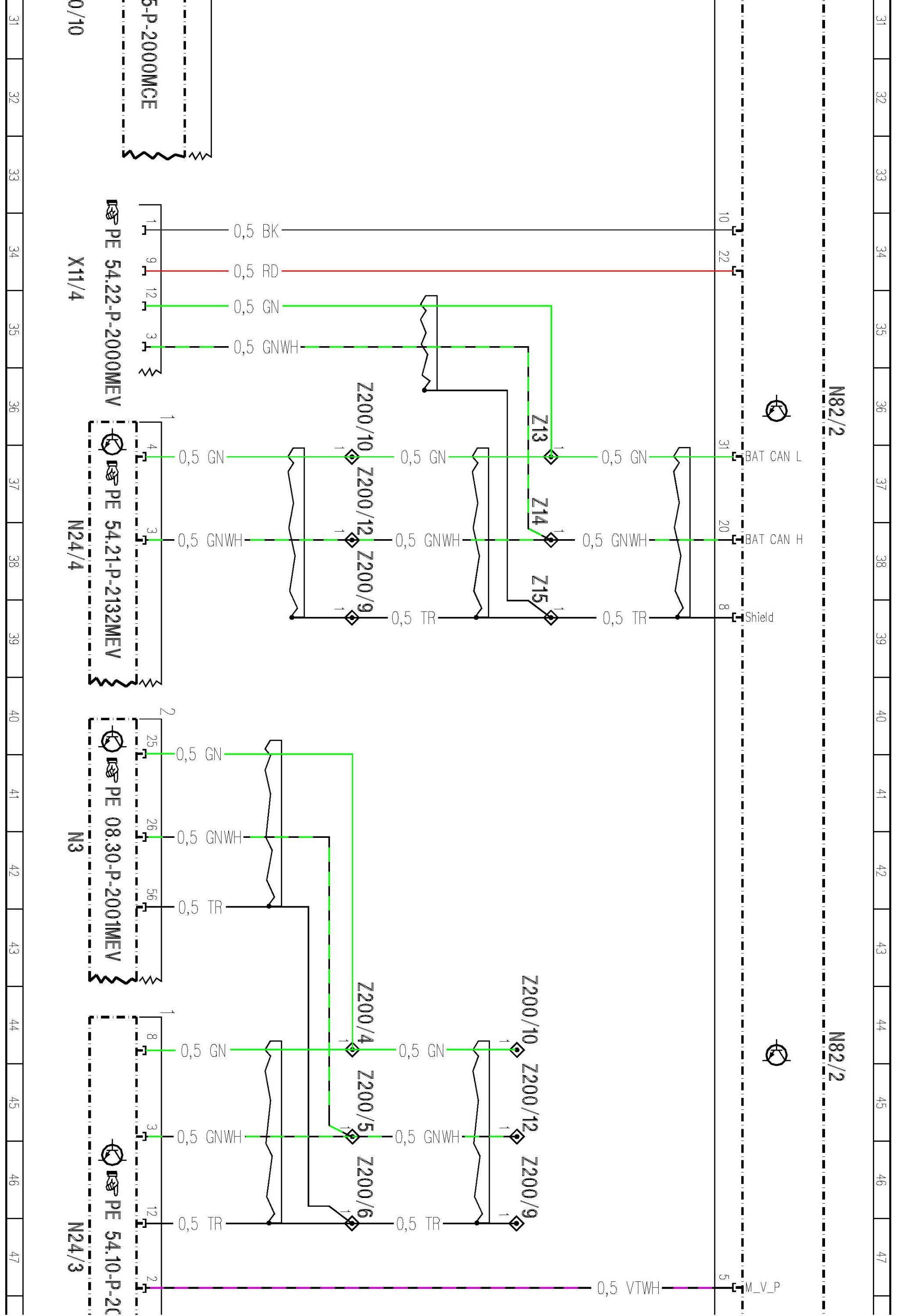

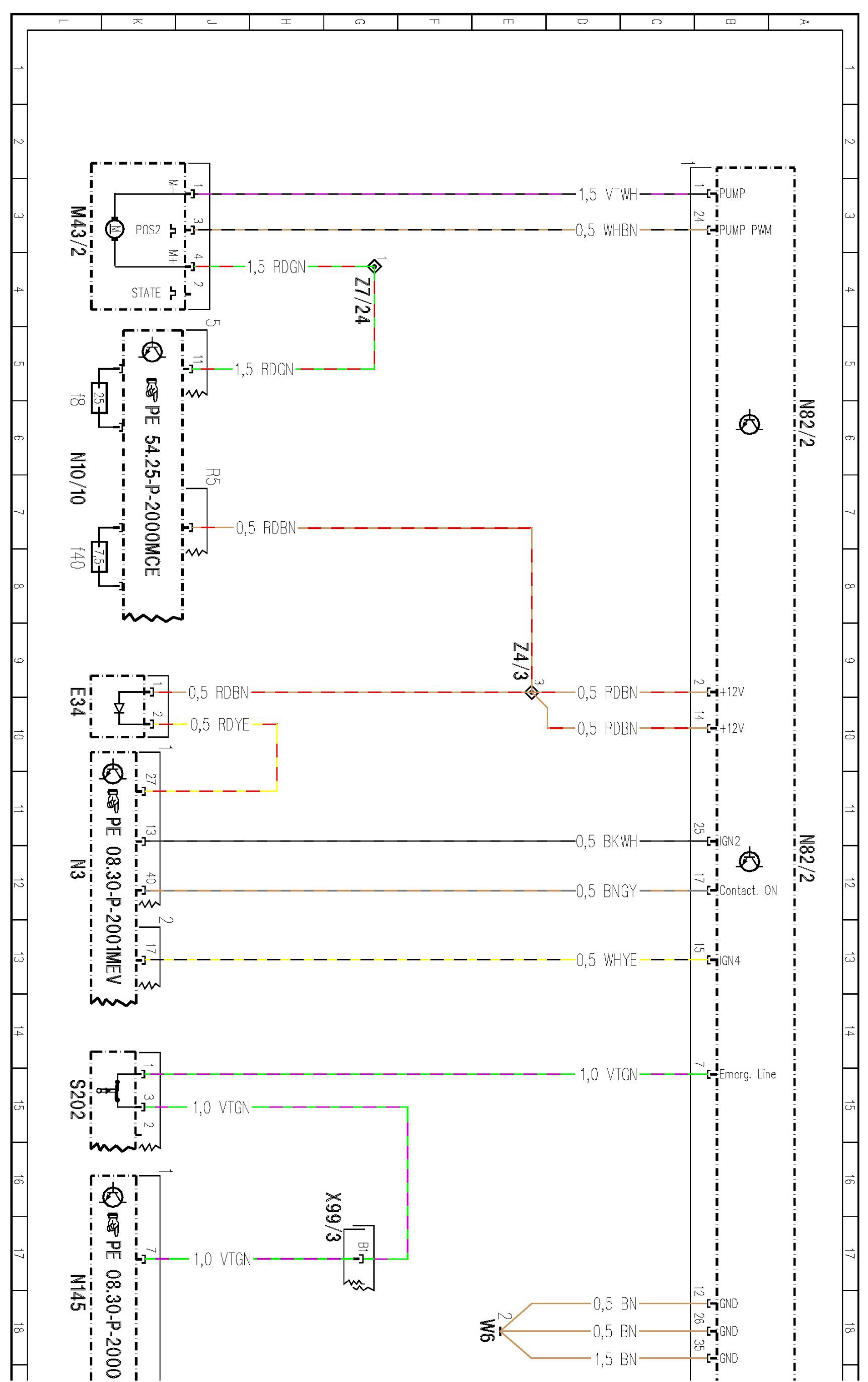

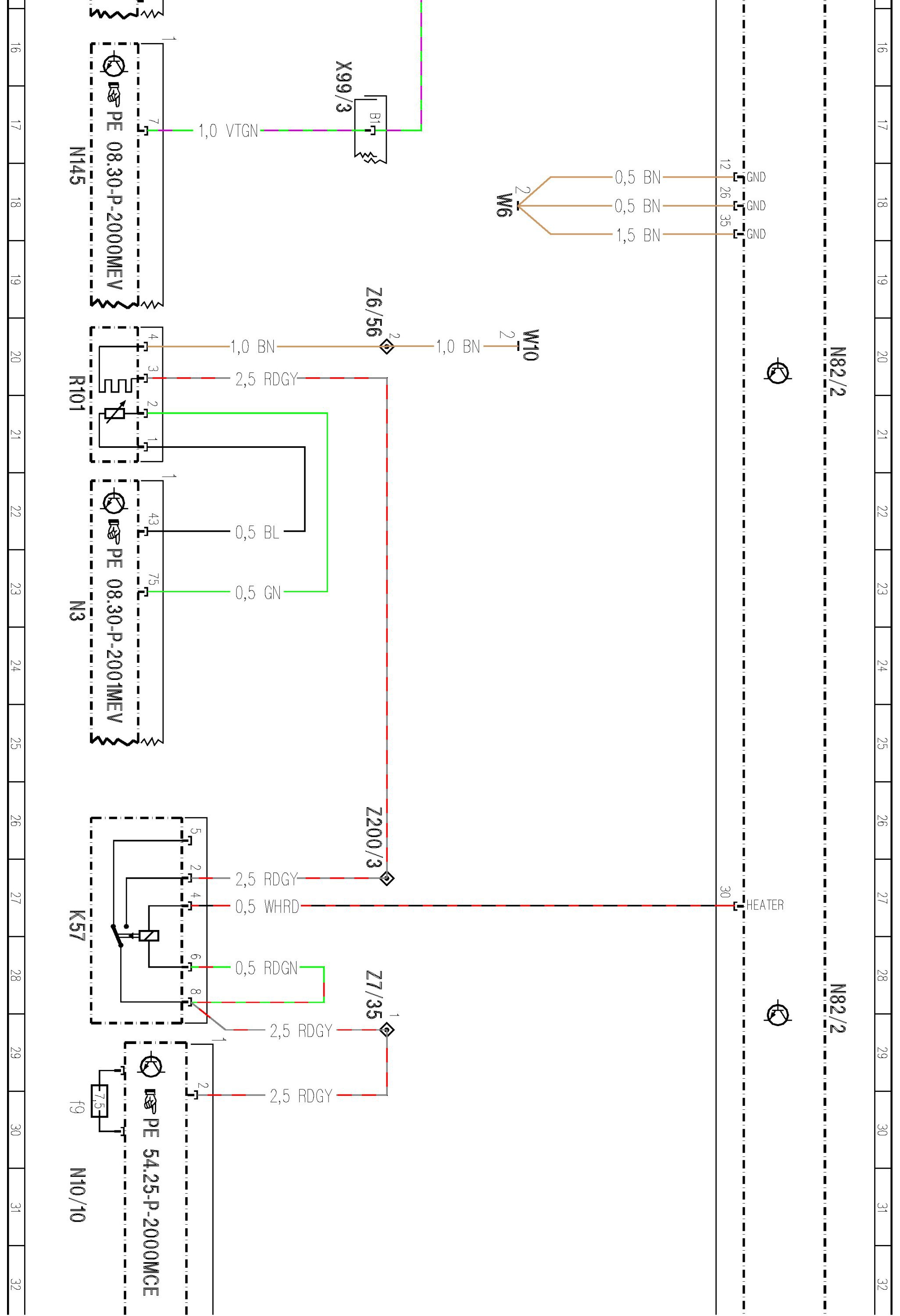

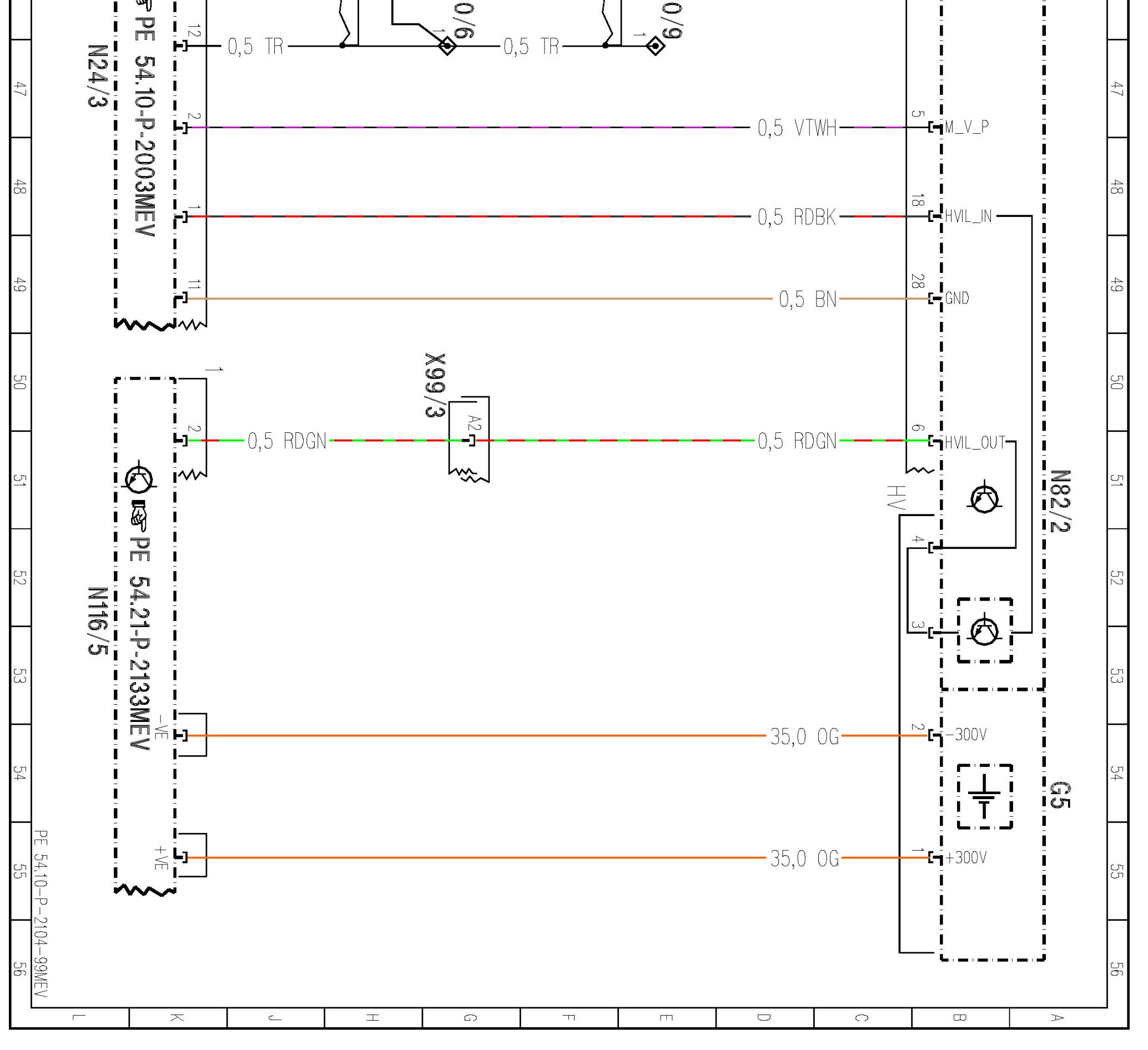

PE54.10-P-2104MEV Battery Management Control Unit

PE54.10-P-2104MEV Battery Management Control Unit

451 54 Electrical Systems - Equipment and Instruments
MODEL 451.391/ 491
