Home >> Scion >> 2013 >> FR-S F4-2.0L (FA20) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

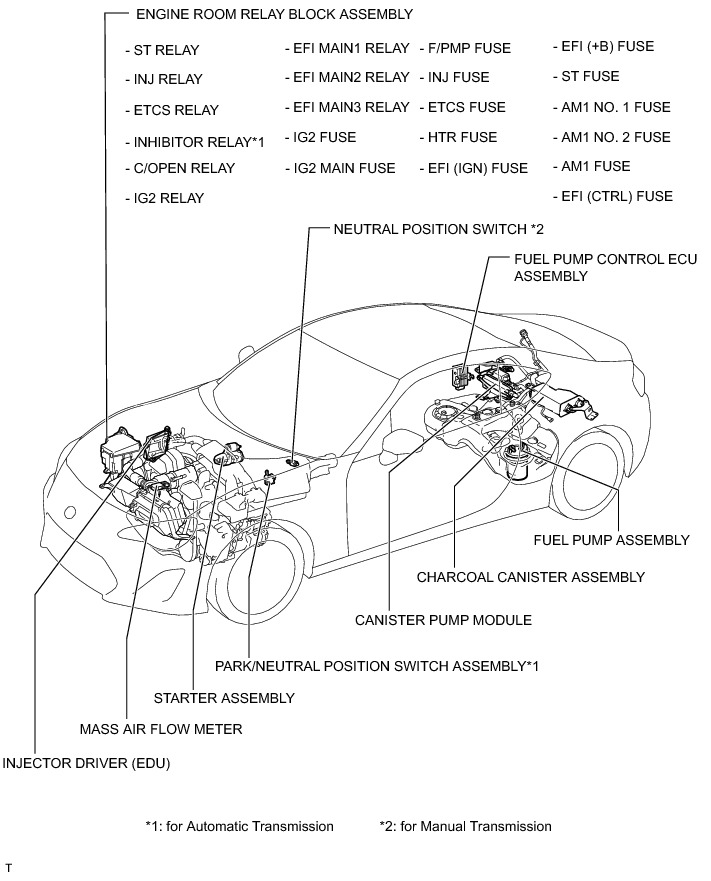

FA20 ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION; 2013 MY FR-S [03/2012 -]
