Electric Power Control System
Electric Power Control System

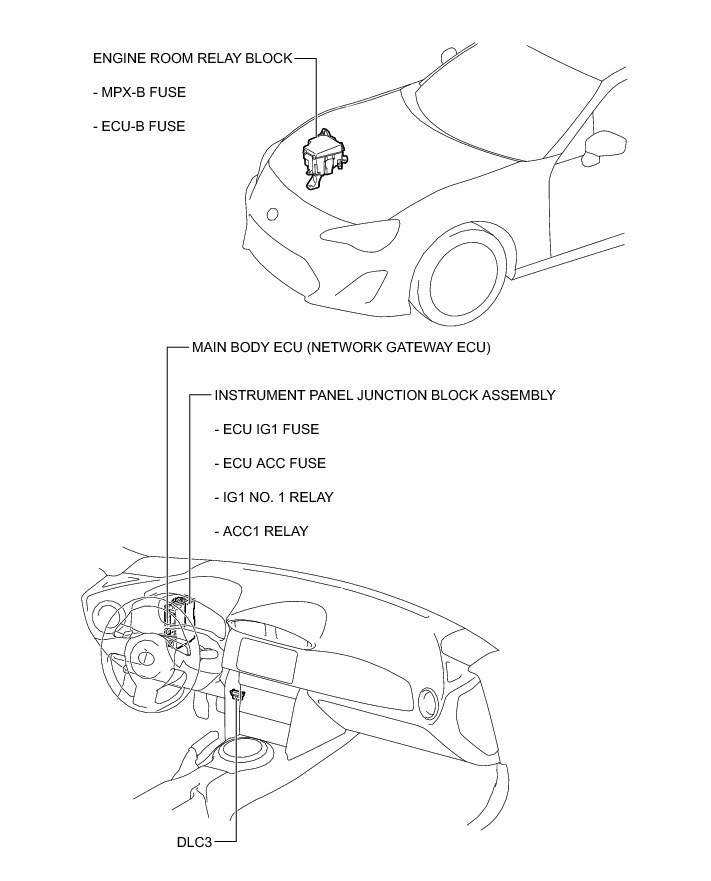

POWER DISTRIBUTION: ELECTRIC POWER CONTROL SYSTEM: PARTS LOCATION; 2013 MY FR-S [03/2012 -]
