Home >> Scion >> 2012 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications

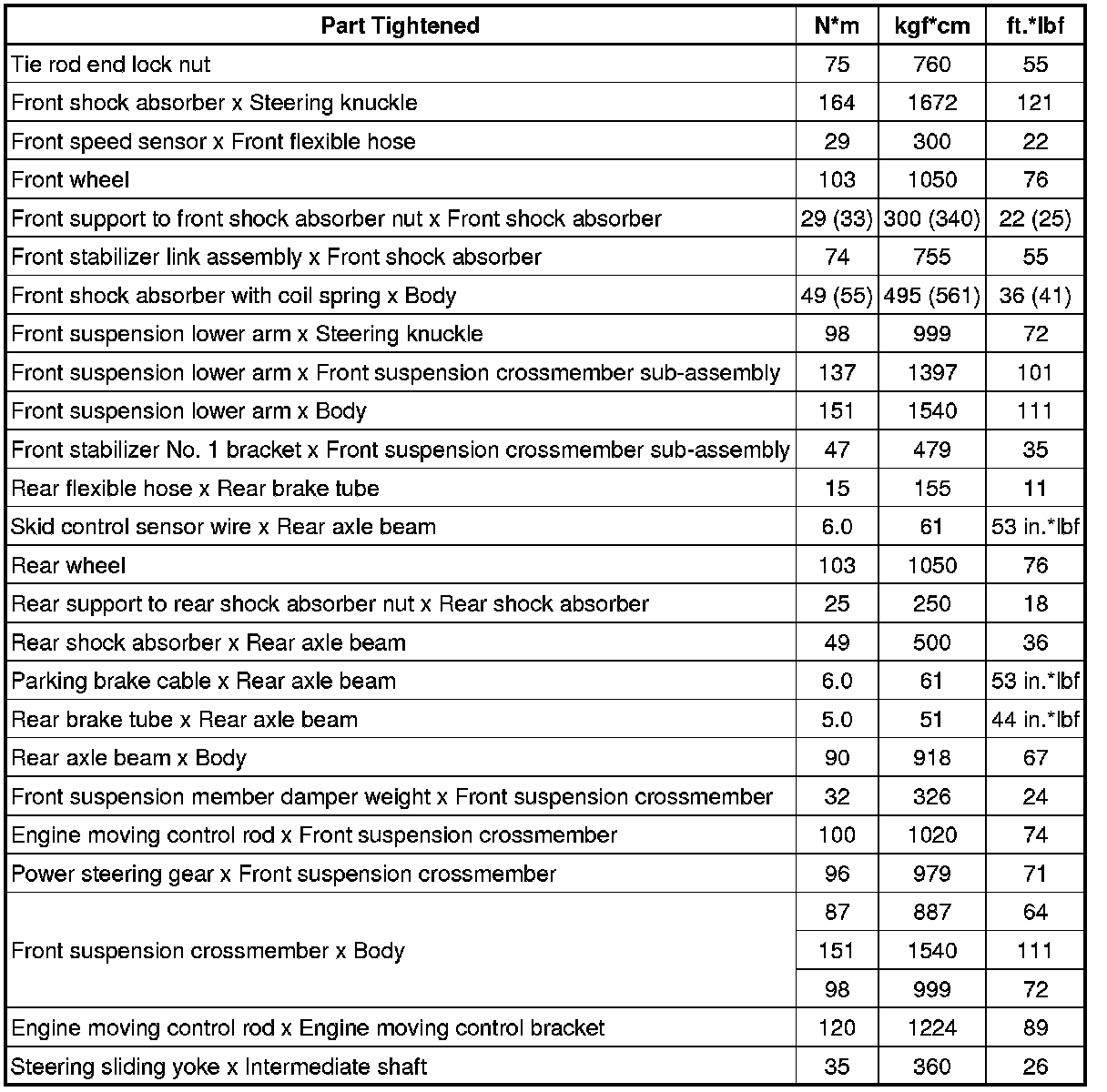

SERVICE SPECIFICATIONS: SUSPENSION: TORQUE SPECIFICATIONS





( ): For use without SST
