Home >> Scion >> 2012 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations

Transmission Control Systems: Locations

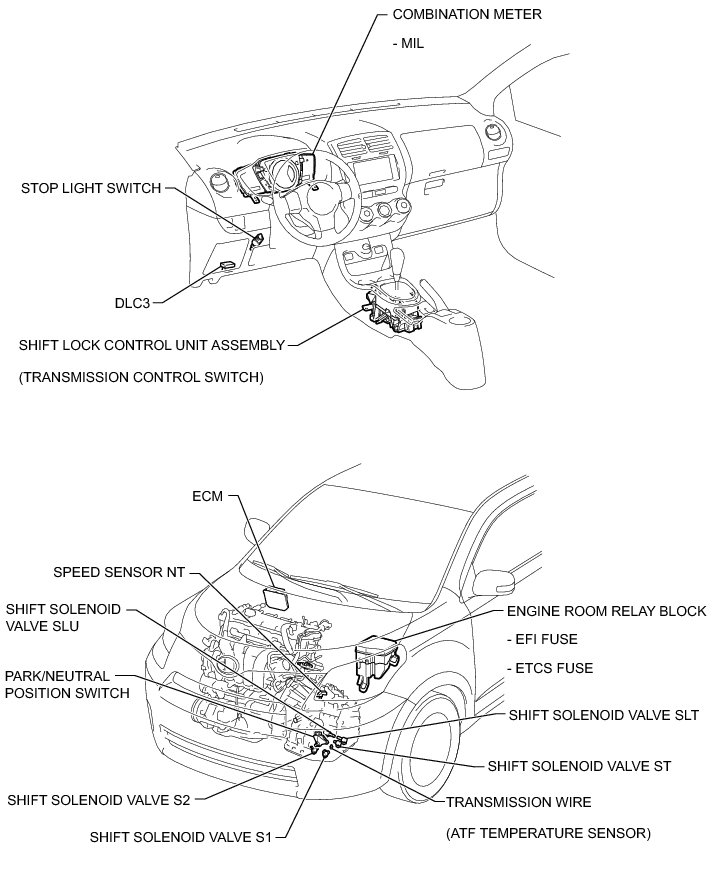

U341E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION
