Power Distribution Relay: Testing and Inspection

2ZR-FE STARTING: ACC CUT RELAY: INSPECTION

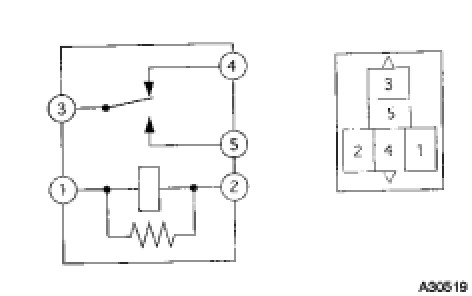

1. INSPECT ACC CUT RELAY

(a) Check the resistance.

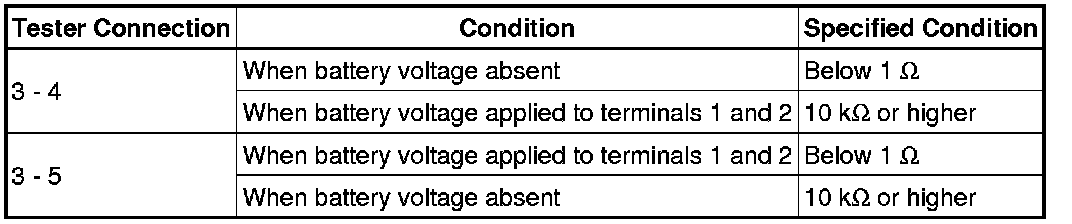

(1) Measure the resistance according to the value (s) in the table below.

Standard resistance:





If the result is not as specified, replace the relay.
