Ignition Switch: Testing and Inspection

2AZ-FE STARTING: IGNITION SWITCH: INSPECTION

1. INSPECT IGNITION SWITCH ASSEMBLY





(a) Check the resistance.

(1) Measure the resistance between the terminals.

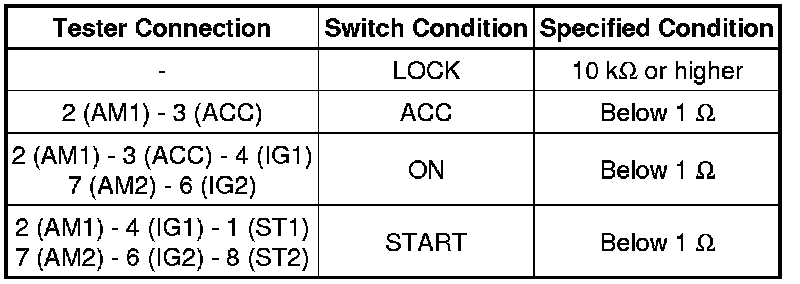

Standard resistance:





If the result is not as specified, replace the ignition switch assembly.
