Transmission Control Systems: Locations

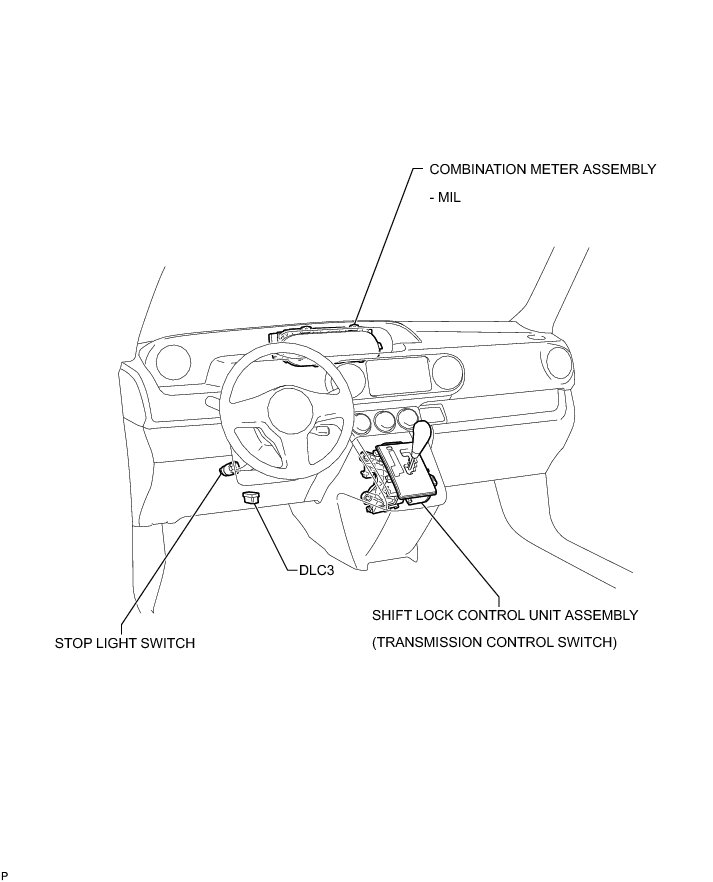

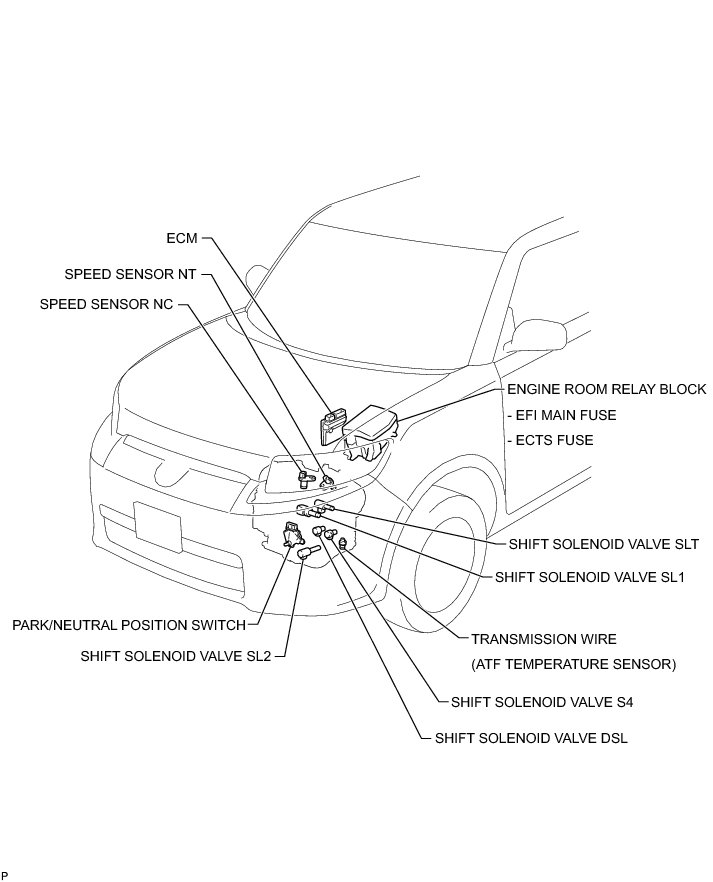

U241E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION
