Torque Specifications

SPECIFICATIONS: EB60 MANUAL TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

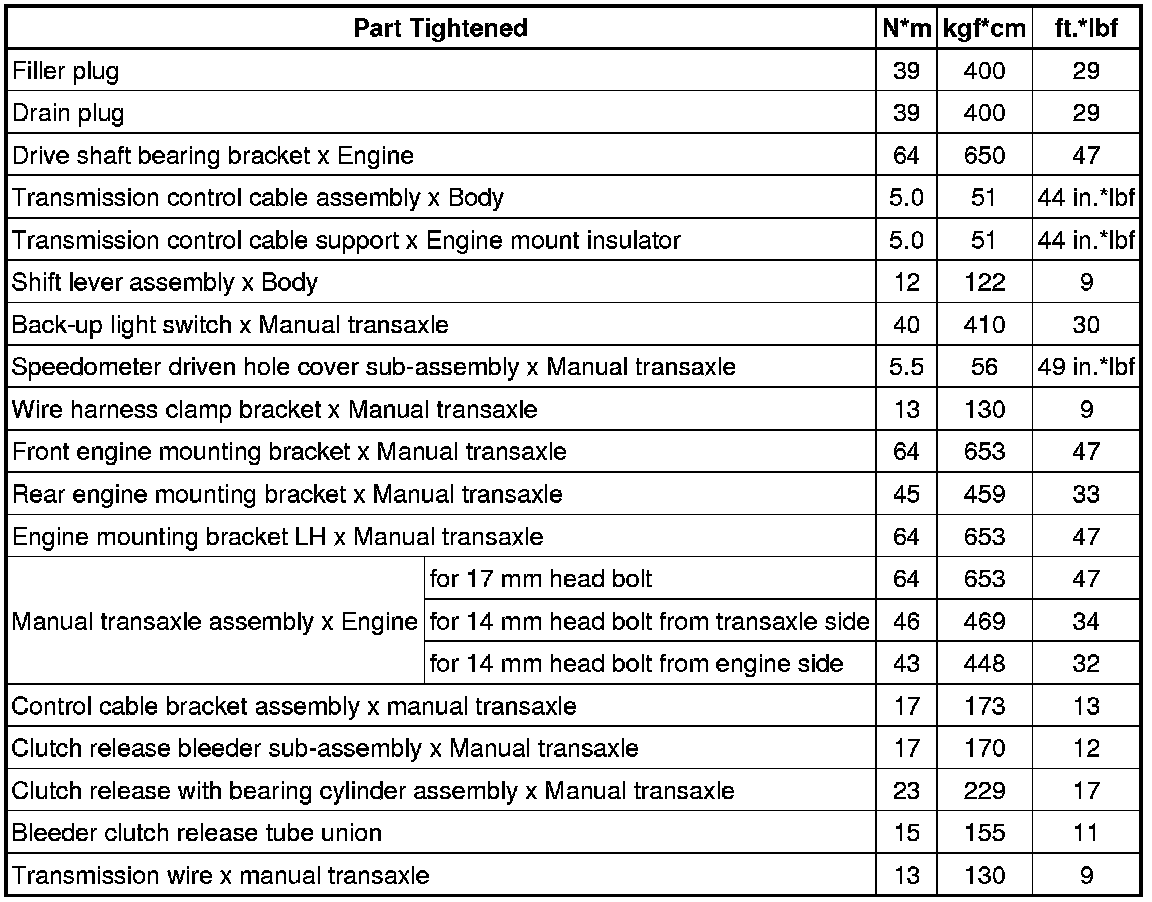

Manual Transaxle Assembly

Manual Transaxle Unit

Differential Case
