System Diagram
U760E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM

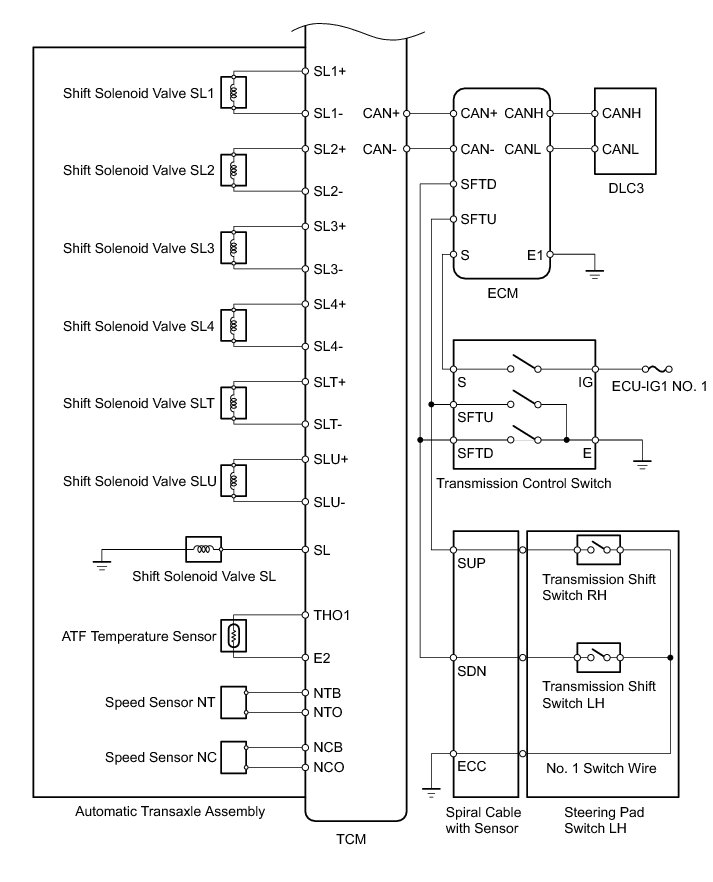

The configuration of the electronic control system for the U760E automatic transaxle is as shown in the following chart.
U760E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: SYSTEM DIAGRAM

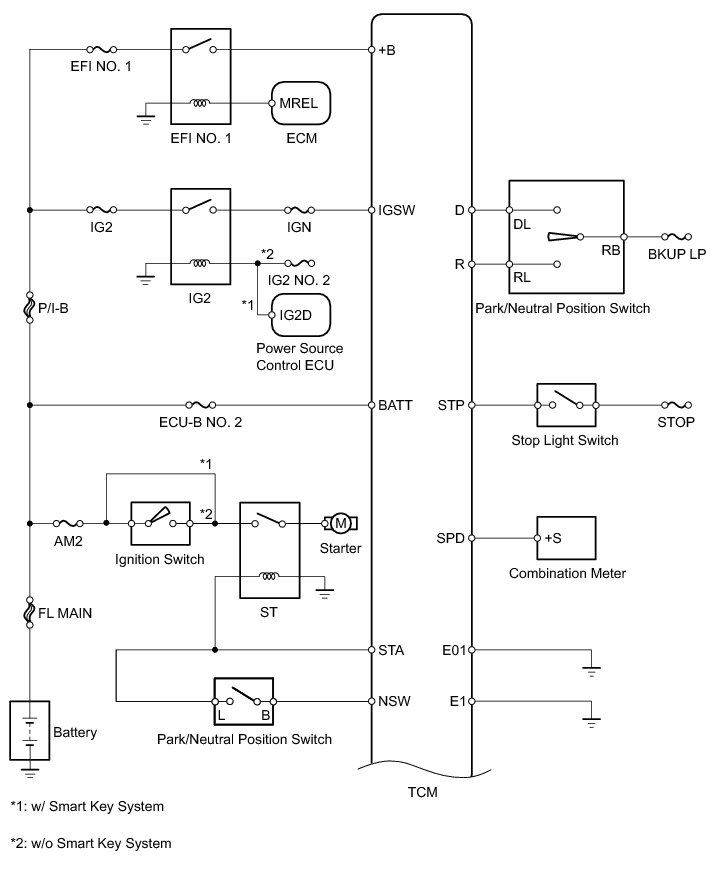

The configuration of the electronic control system for the U760E automatic transaxle is as shown in the following chart.
