Home >> Scion >> 2012 >> tC L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

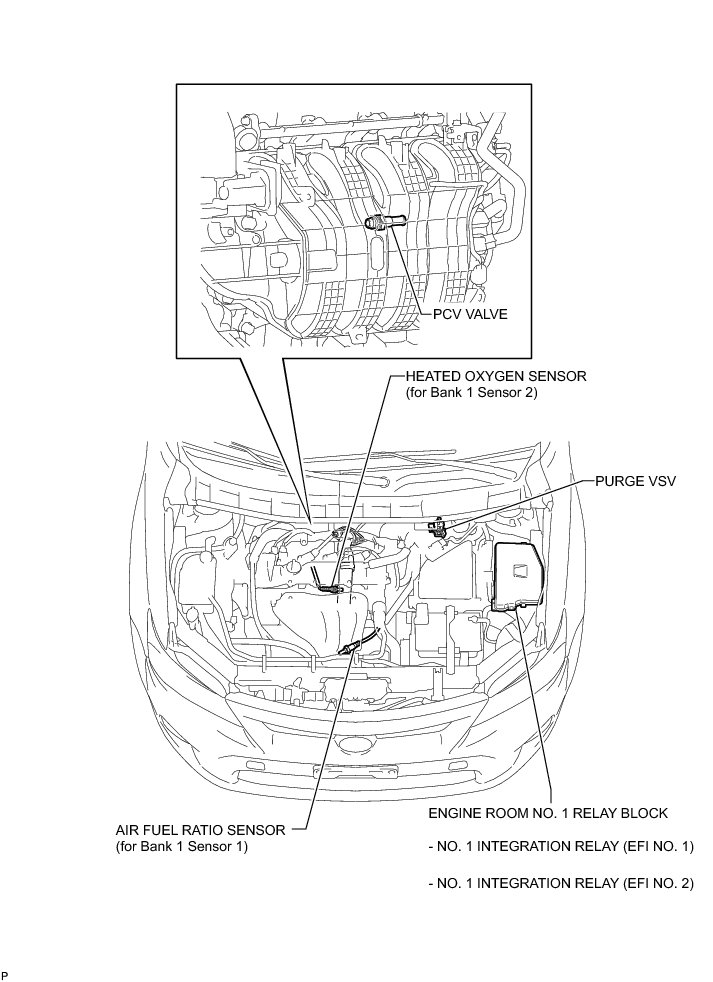

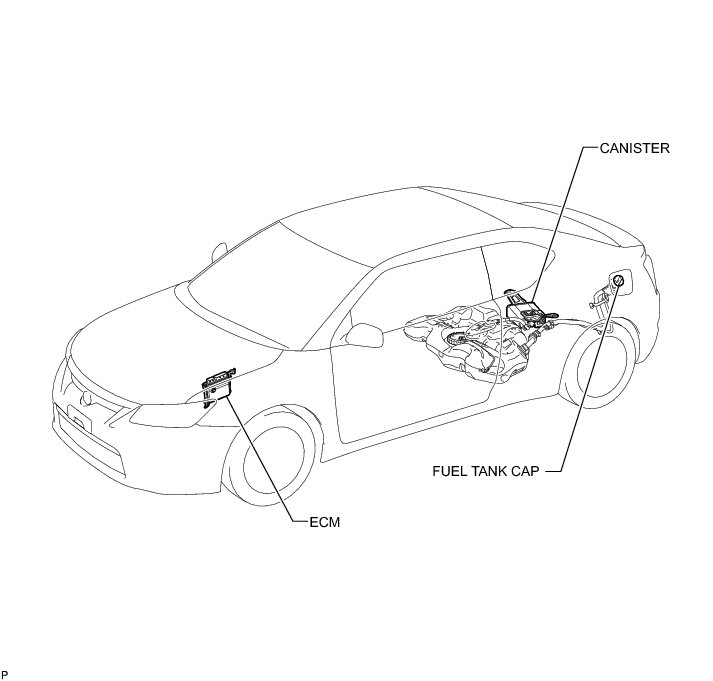

2AR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION
