Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Engine >> System Specifications

System Specifications

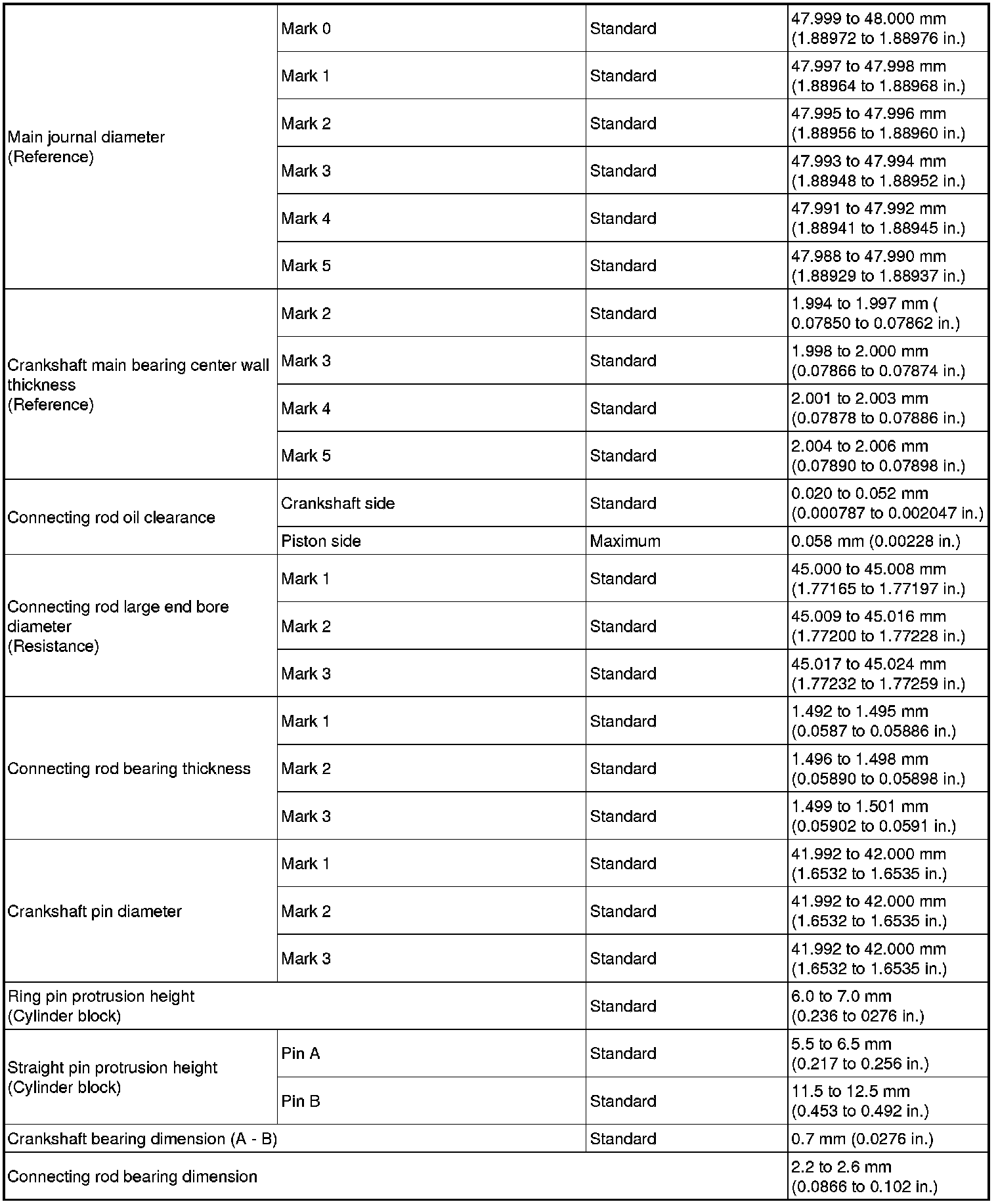

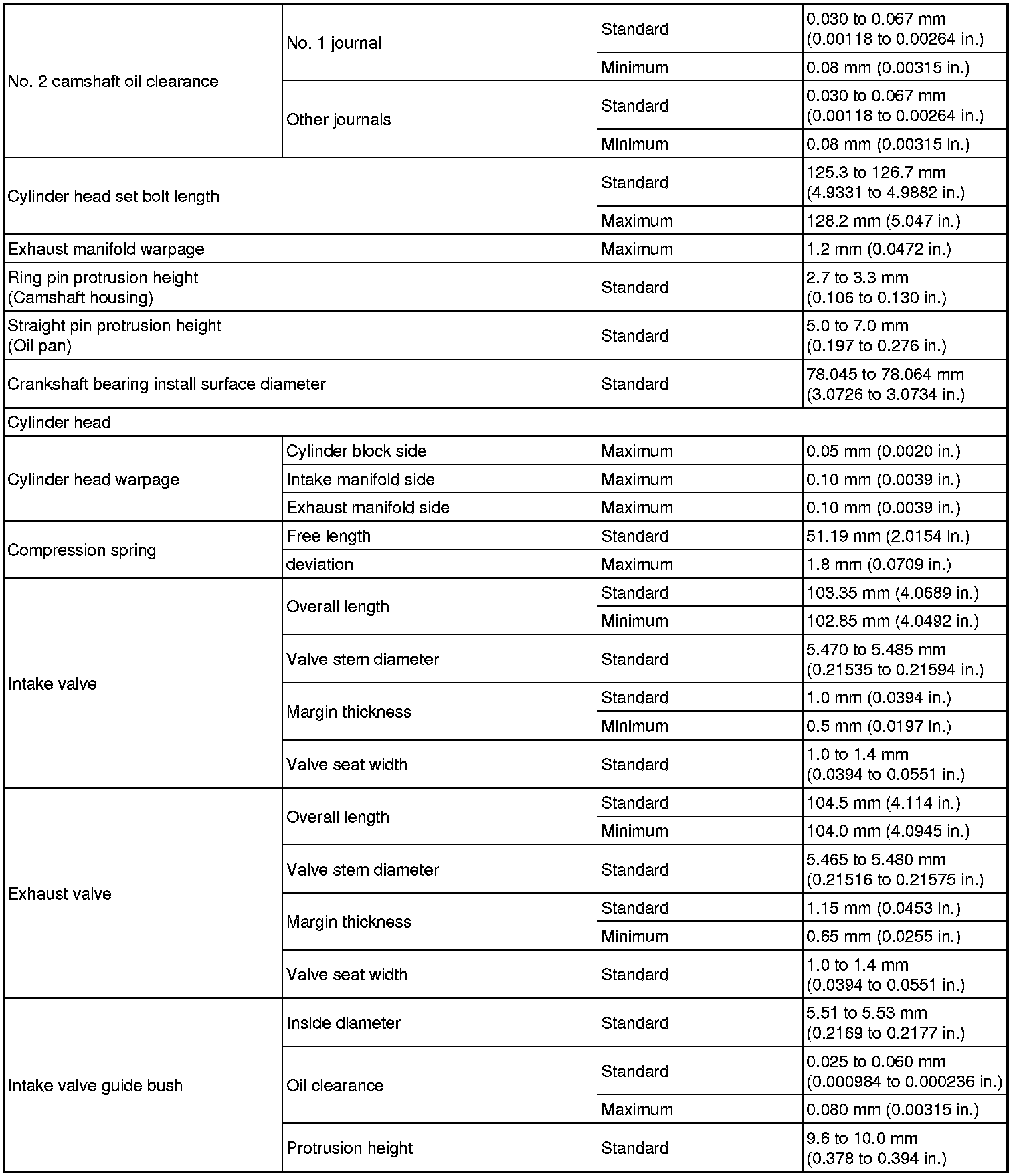

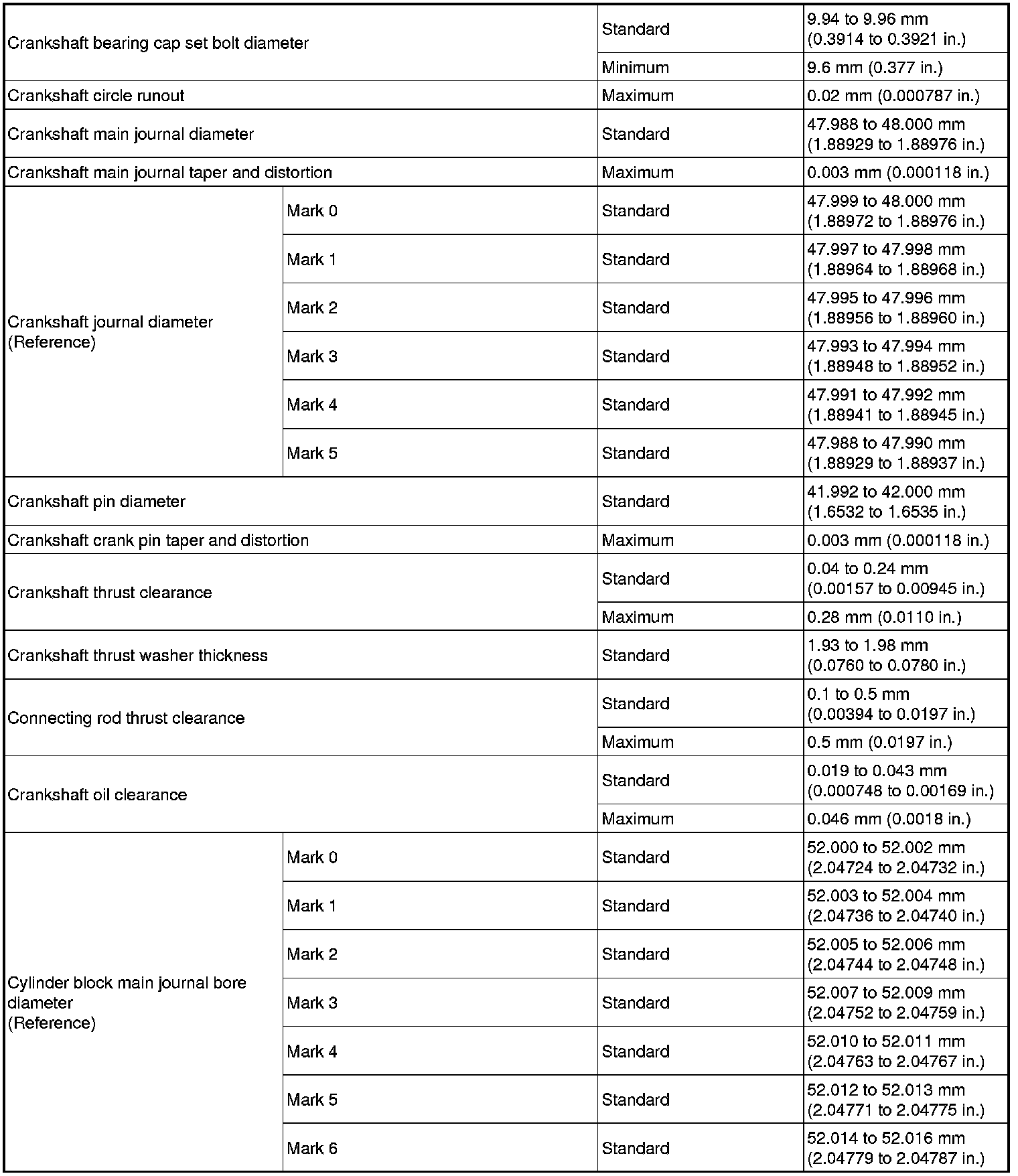

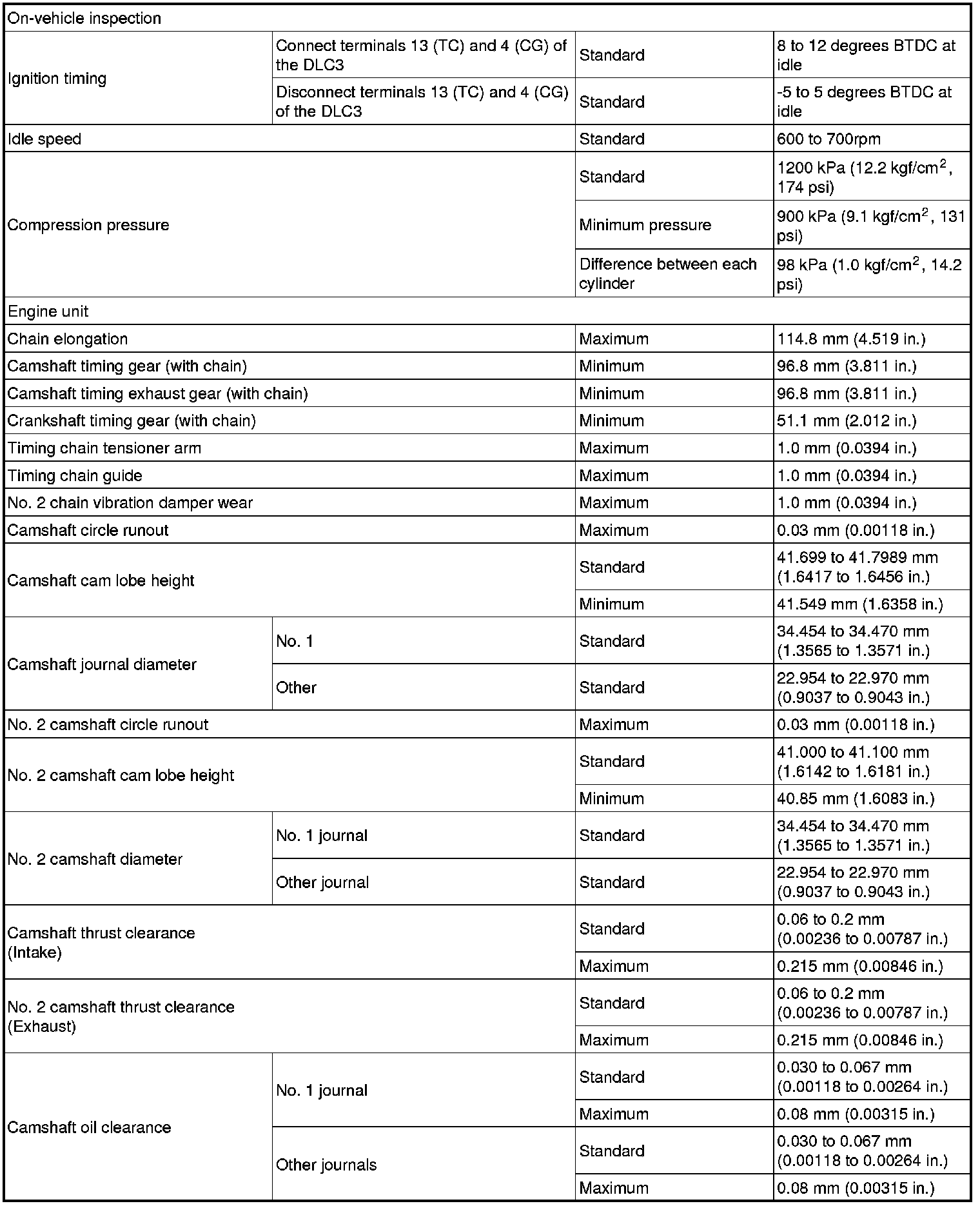

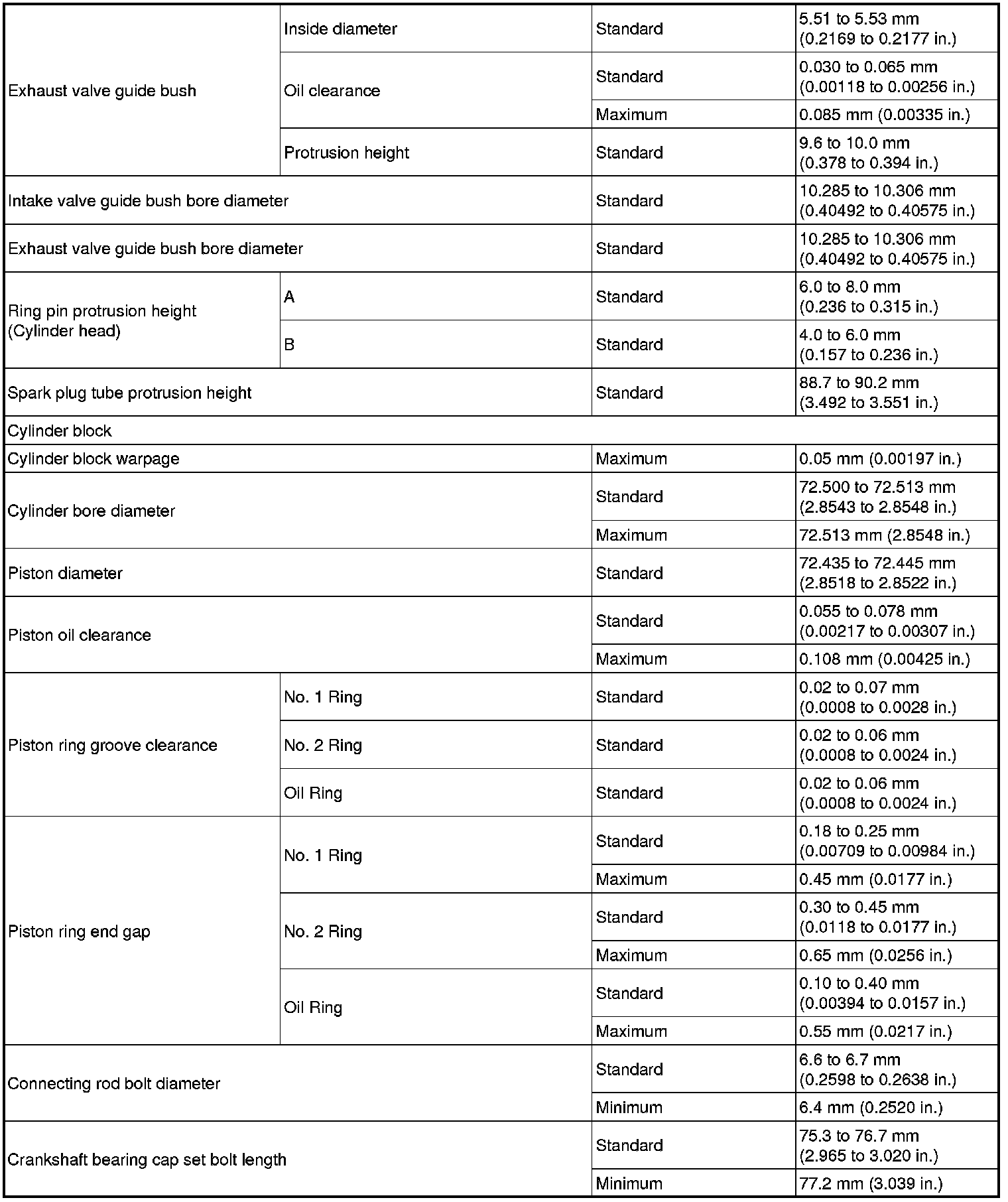

SPECIFICATIONS: 1NR-FE ENGINE MECHANICAL: SERVICE DATA
