Transmission Control Systems: Locations

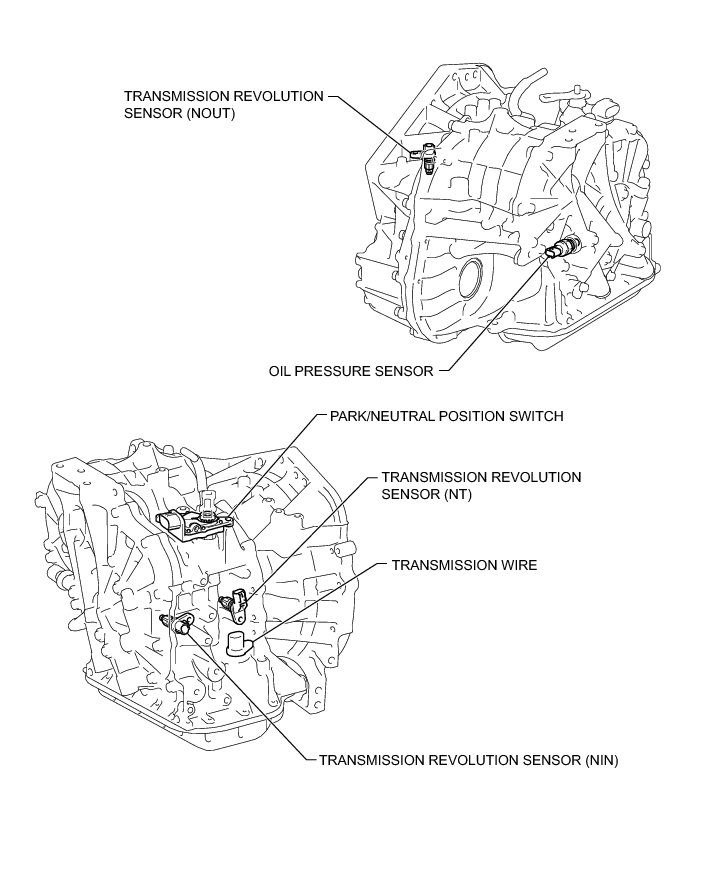

K41B CVT: CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM: PARTS LOCATION
