Section 107 (OEM System Circuits): Starting: Notes
WARNING:
This page is about a different car, the 2010 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

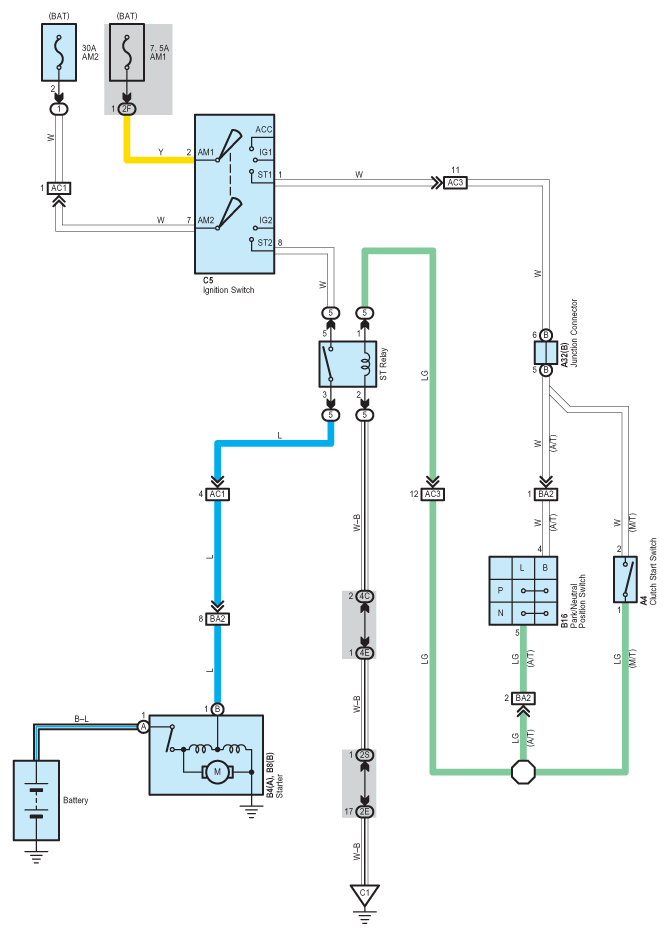

Fig 1: Starting - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
