Home >> Scion >> 2011 >> tC L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block

Fuse Block

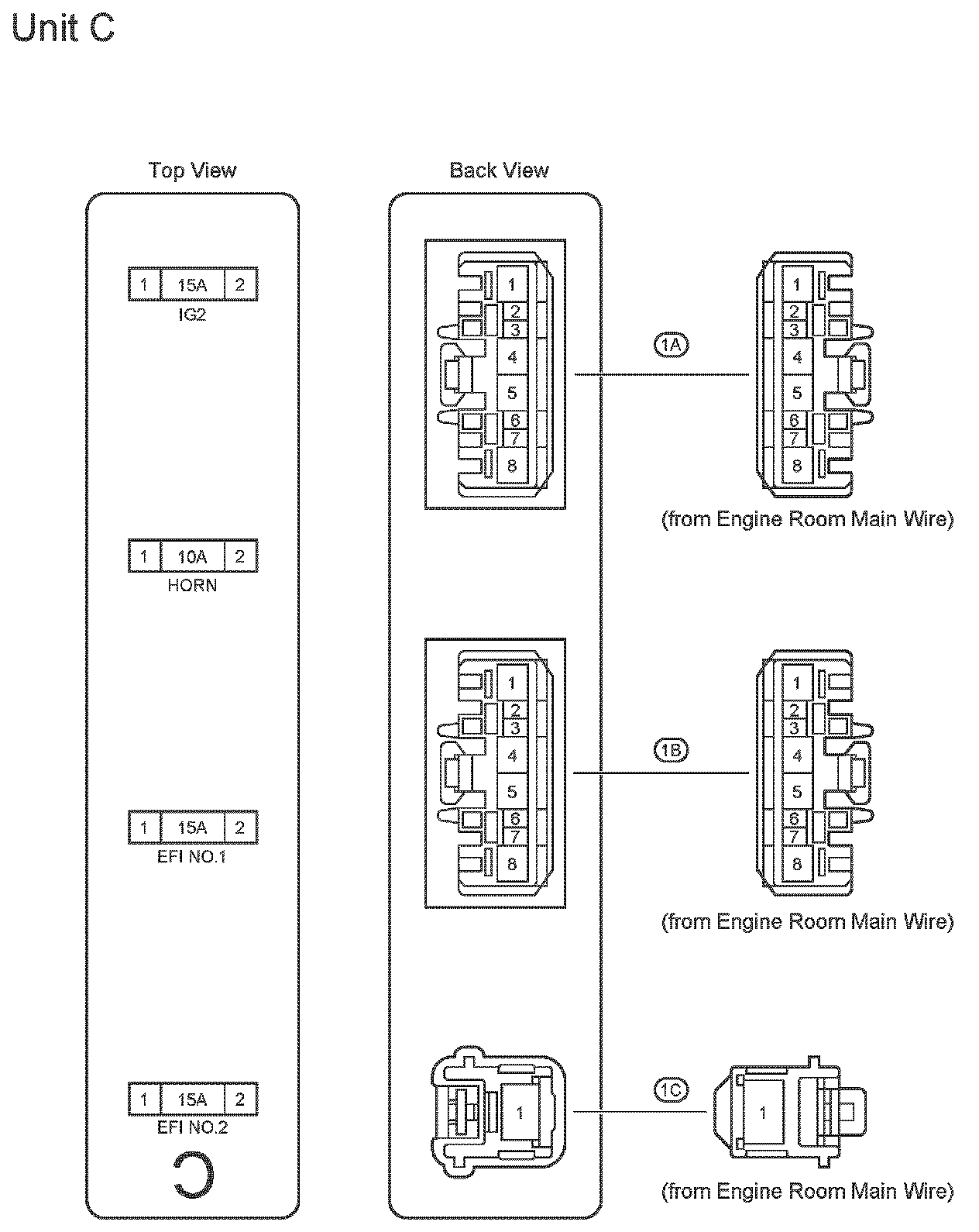

Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:

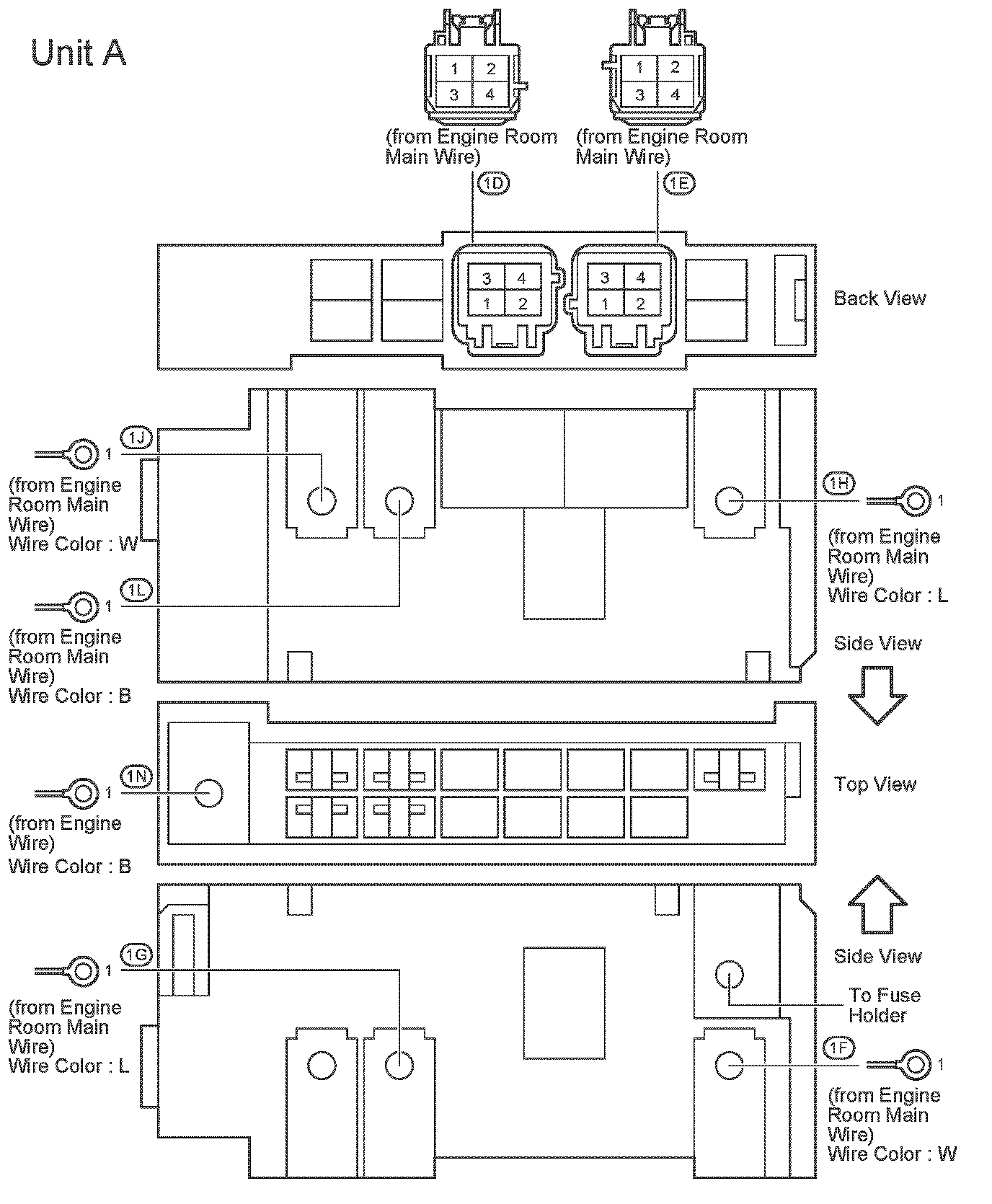

Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:

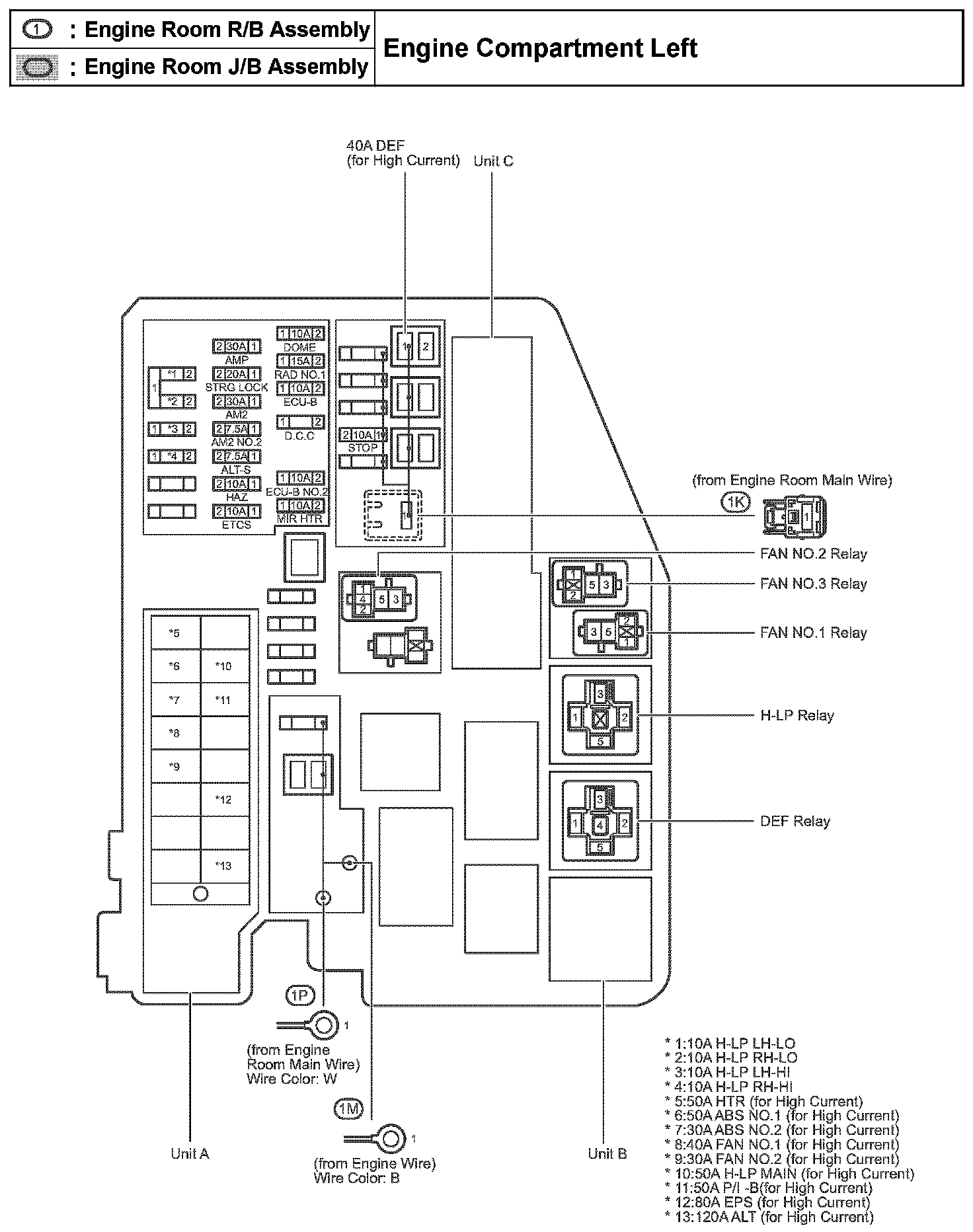

Engine Room R/B Assembly, Engine Room J/B Assembly - Engine Compartment Left:

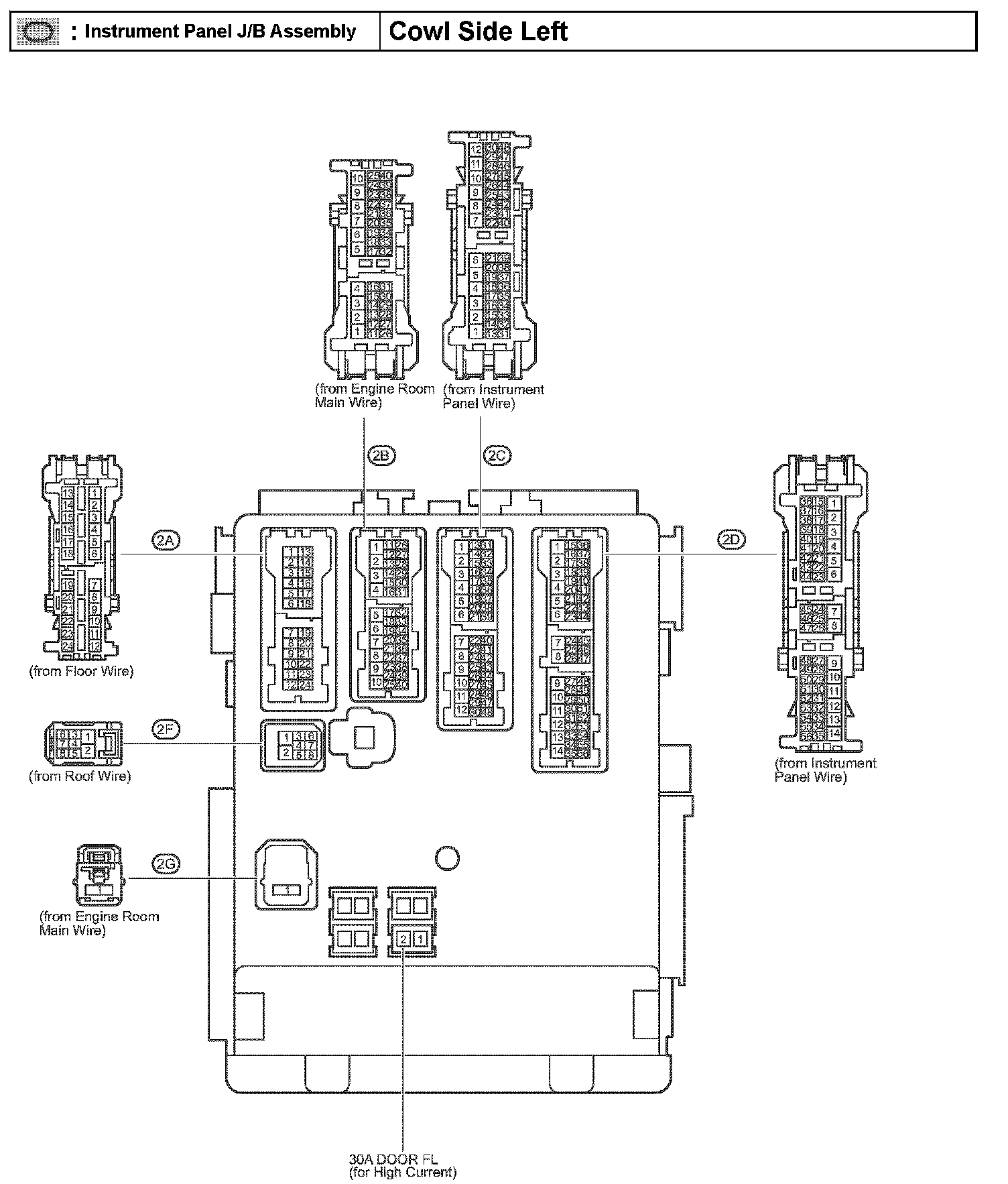

Instrument Panel J/B Assembly - Cowl Side Left:






Instrument Panel J/B Assembly - Cowl Side Left:
