Service Data

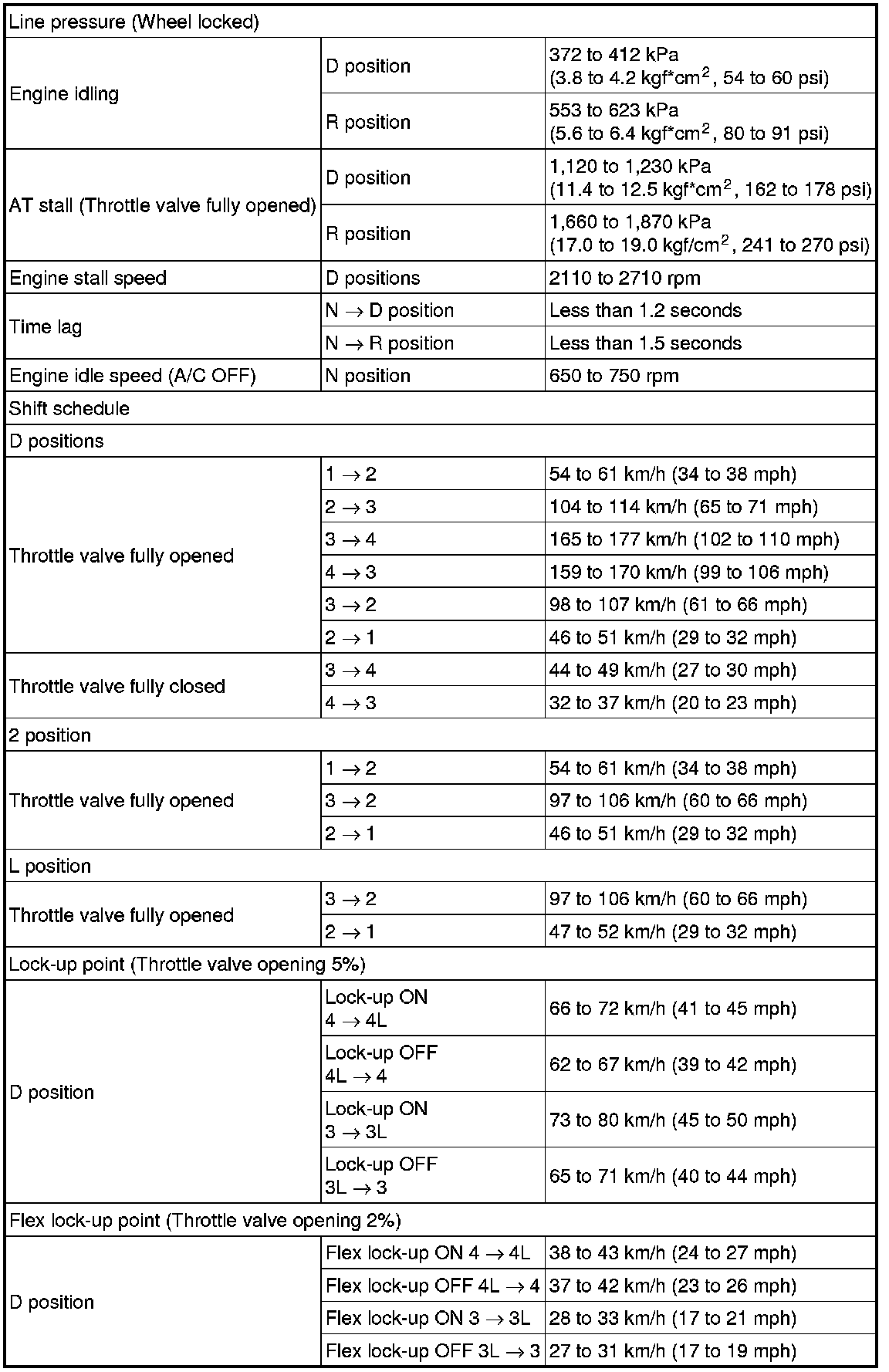

Automatic Transaxle System:

Differential Oil Seal:

Torque Converter Clutch and Drive Plate:

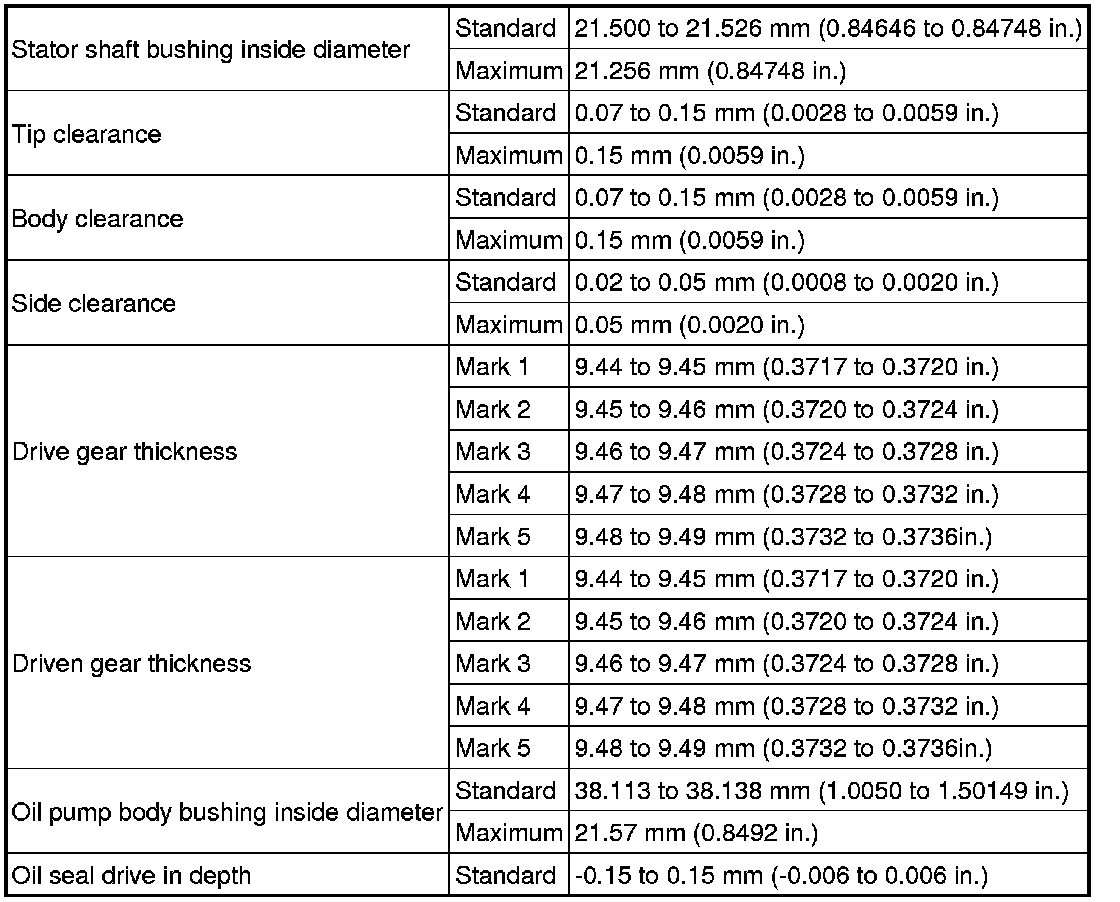

Oil Pump:

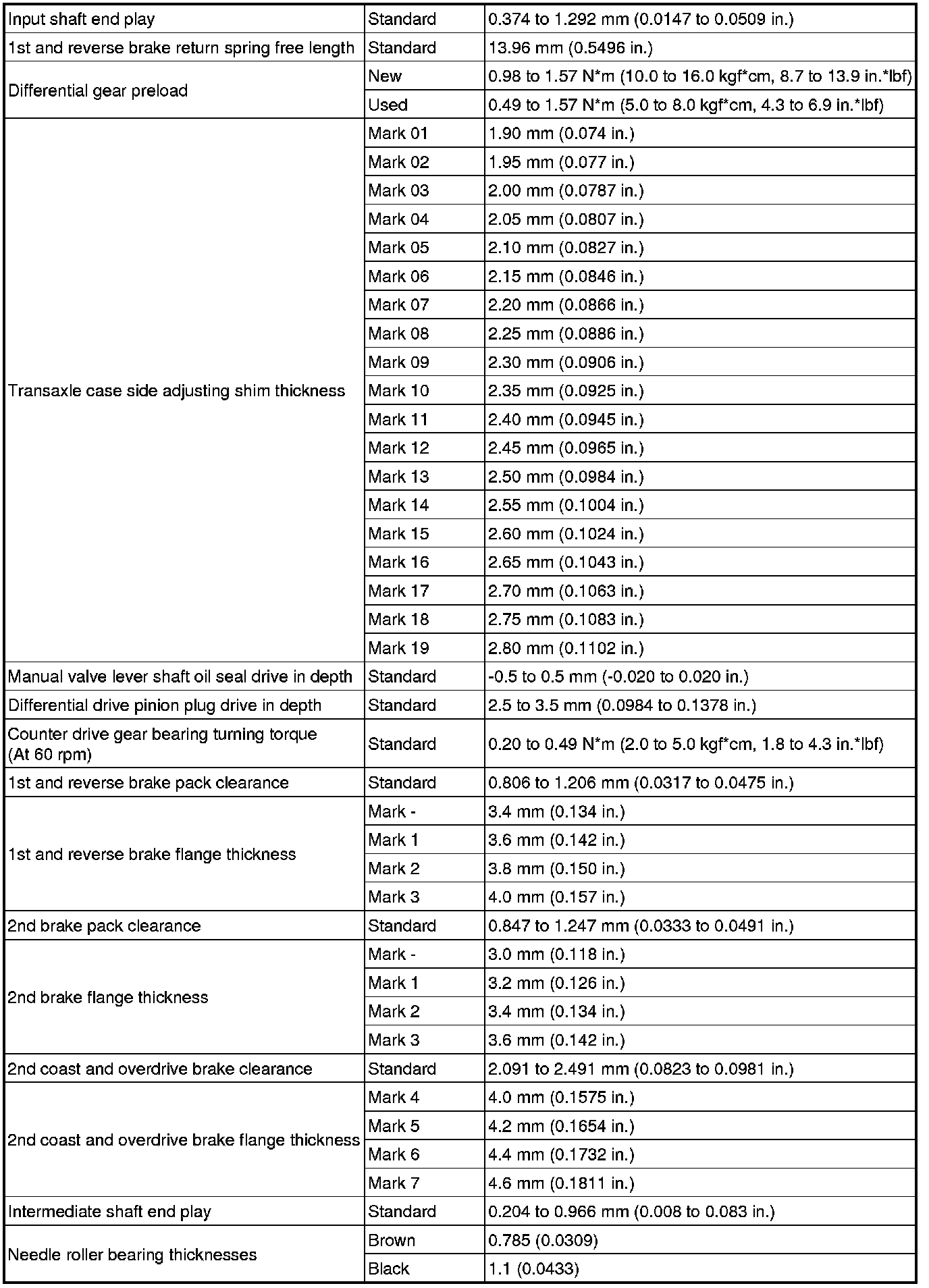

Input Shaft:

Second Brake Piston:

Intermediate Shaft:

Transaxle Rear Cover:

Differential Case:
