Parts Location: Illustration

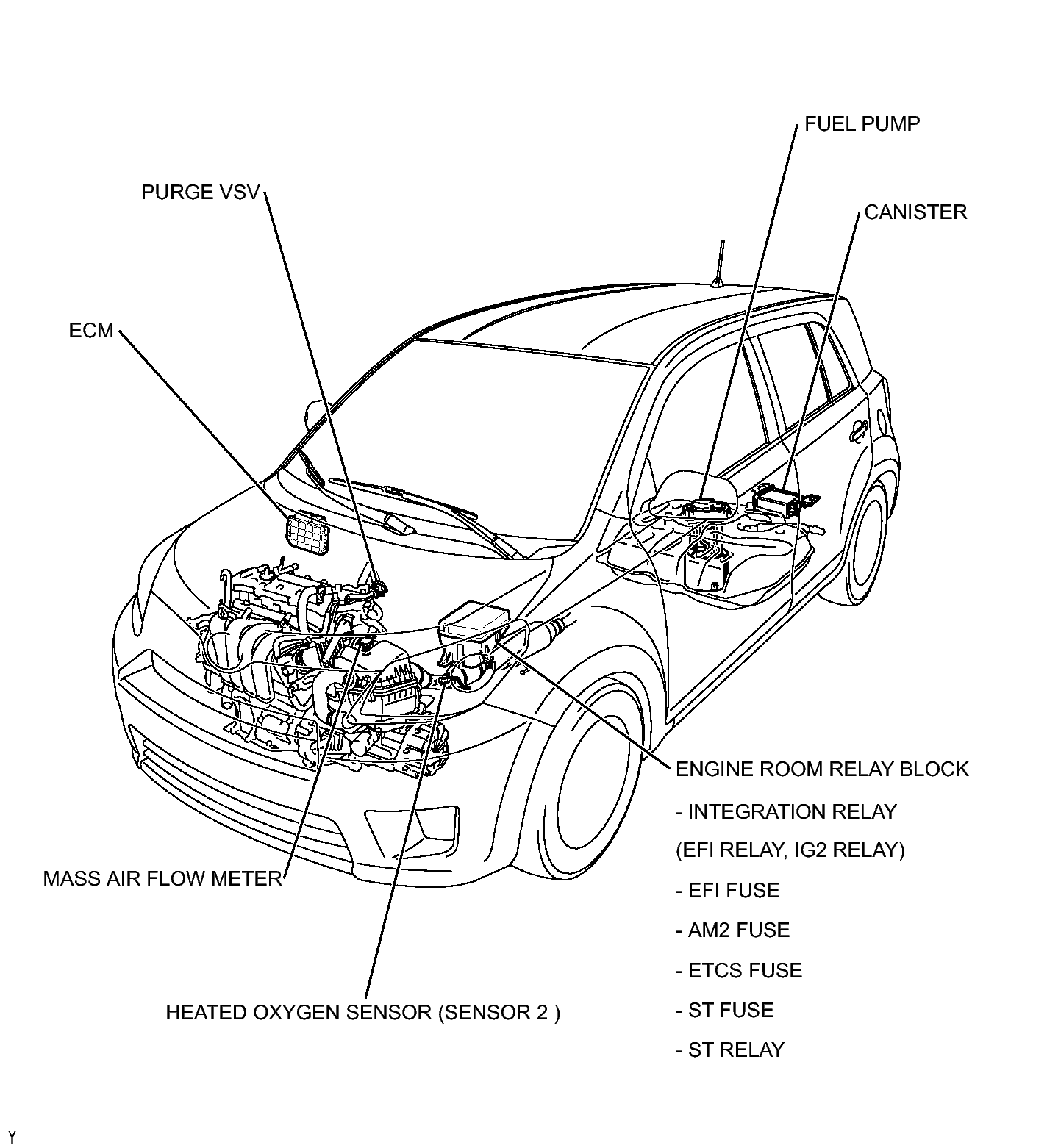

Fig 1: Identifying Engine Control System Components Location (1 Of 3)
GTY160766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

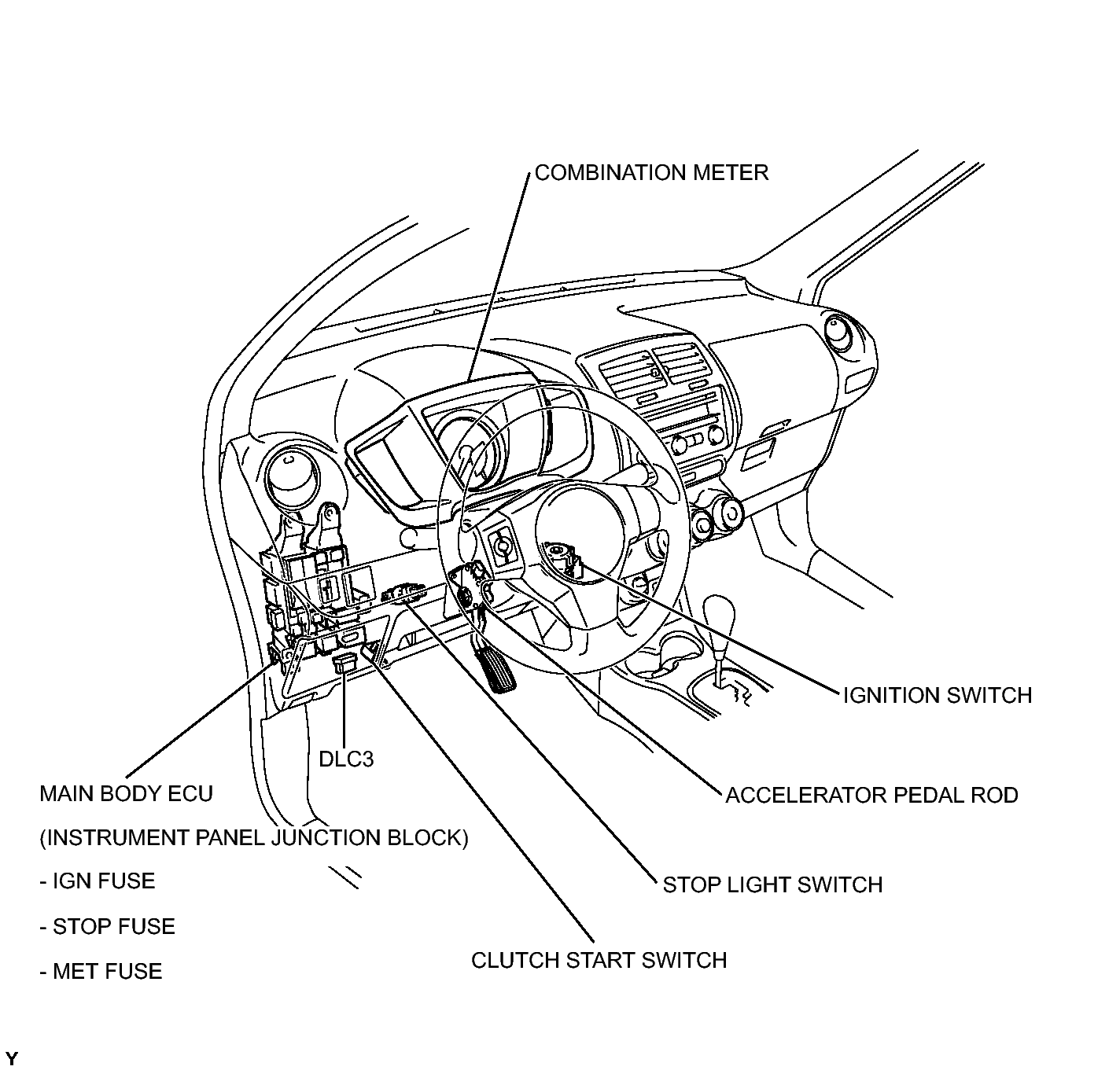

Fig 1: Identifying Engine Control System Components Location (2 Of 3)
GTY166750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

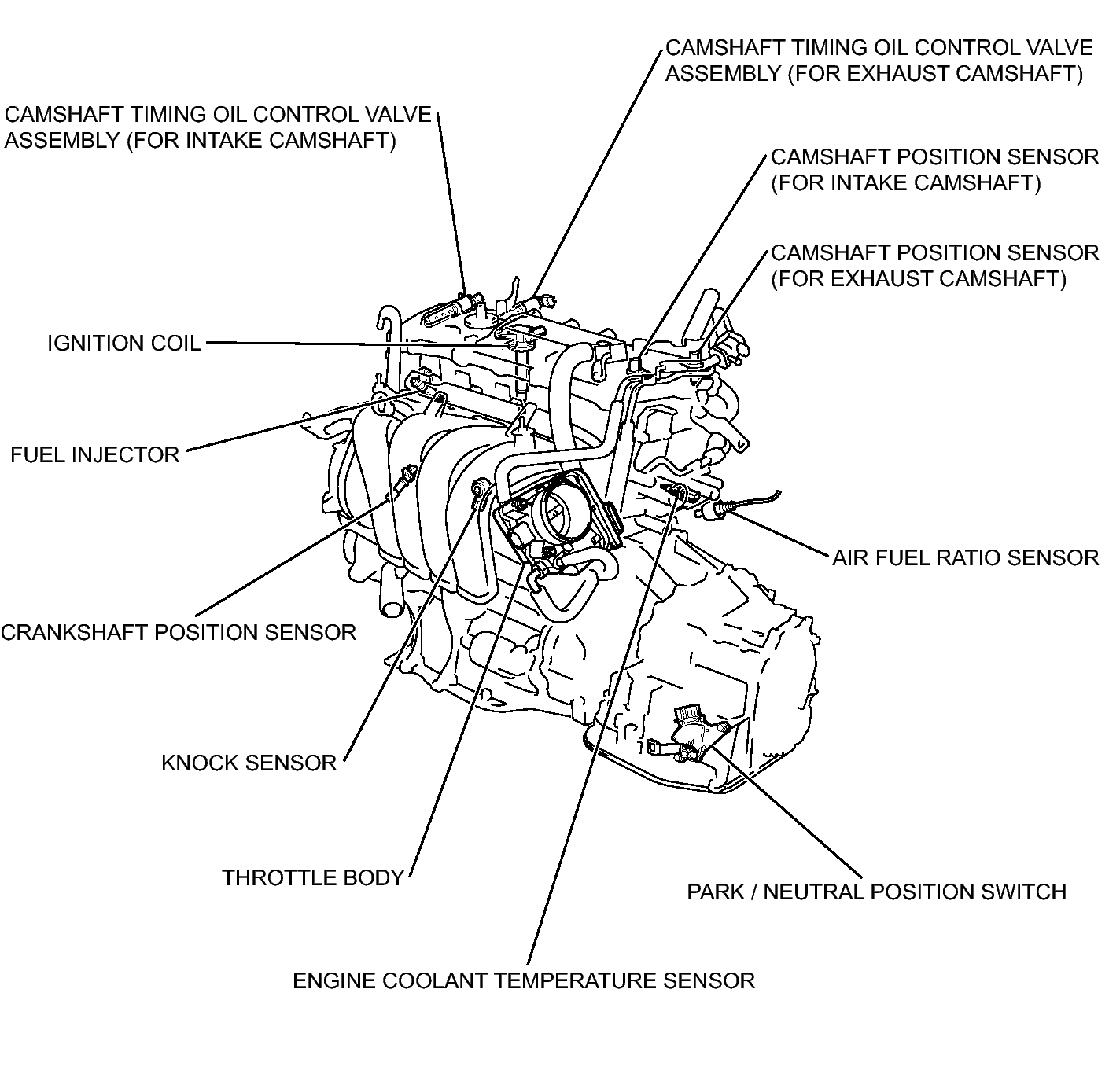

Fig 1: Identifying Engine Control System Components Location (3 Of 3)
GTY160767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
