Rear Window Defogger System Does Not Operate: Wiring Diagram

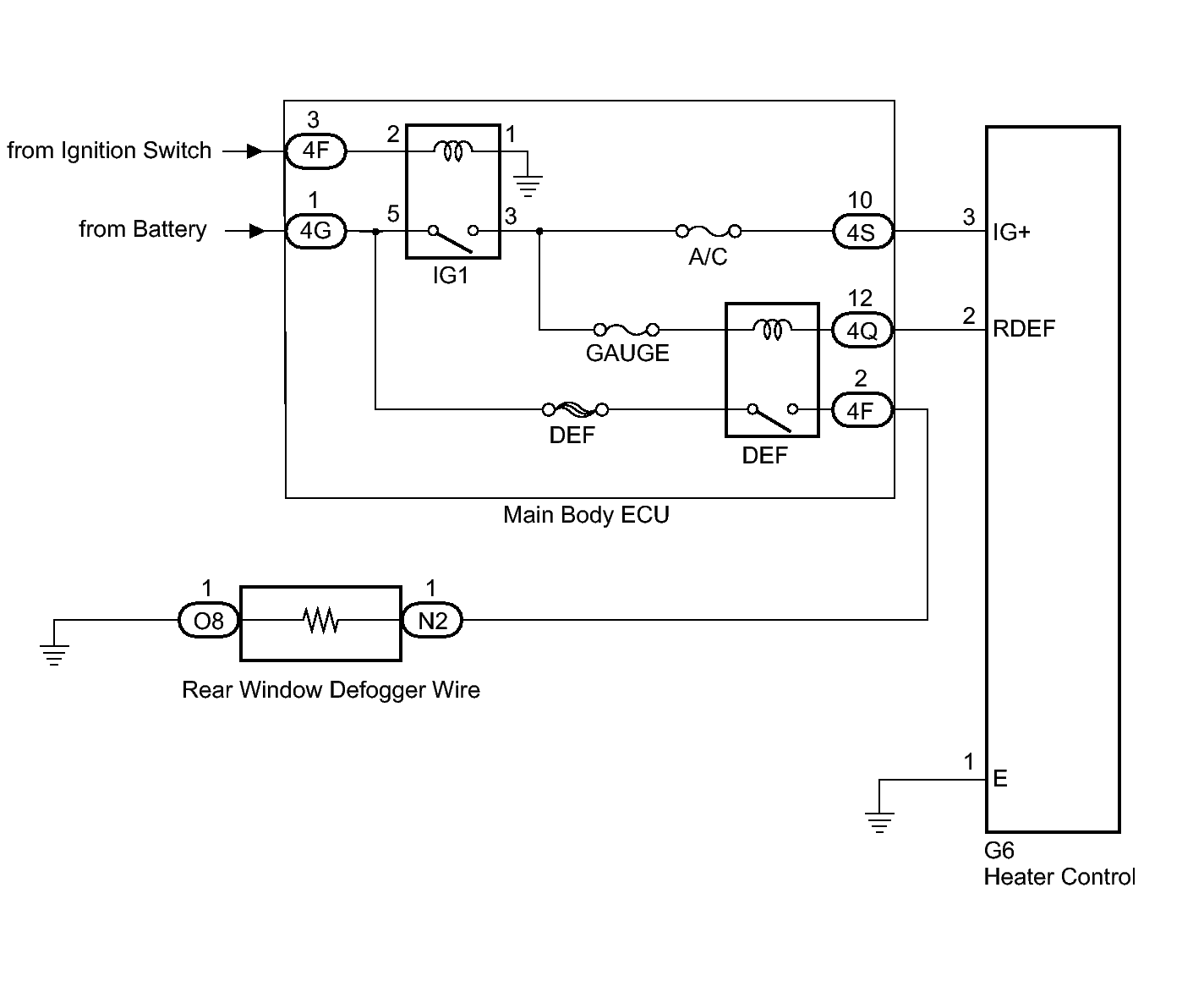

Fig 1: Rear Window Defogger System - Wiring Diagram

GTY162596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
