Keyless Entry Module: Testing and Inspection

DOOR LOCK: DOOR CONTROL RECEIVER: ON-VEHICLE INSPECTION

1. CHECK DOOR CONTROL RECEIVER

(a) Disconnect the D8 receiver connector.





(b) Measure the voltage and resistance of the wire harness side connector.

Standard resistance:





Standard voltage:





(c) If the result is not as specified, the receiver may have a malfunction.

(d) Reconnect the D8 receiver connector.

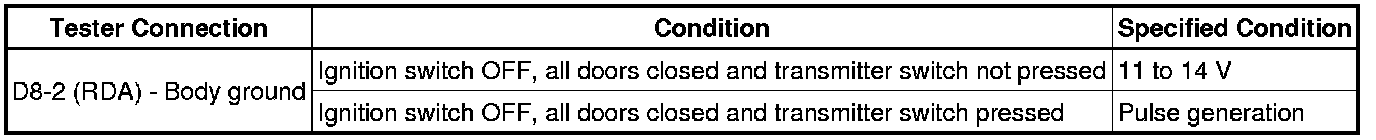

(e) Measure the voltage of the connector.





Standard voltage:





(f) If the result is not as specified, the receiver may have a malfunction.
