Main Relay (Computer/Fuel System)
>>
Locations
>>
Engine Room R/B, J/B
Engine Room R/B, J/B
Instrument Panel:

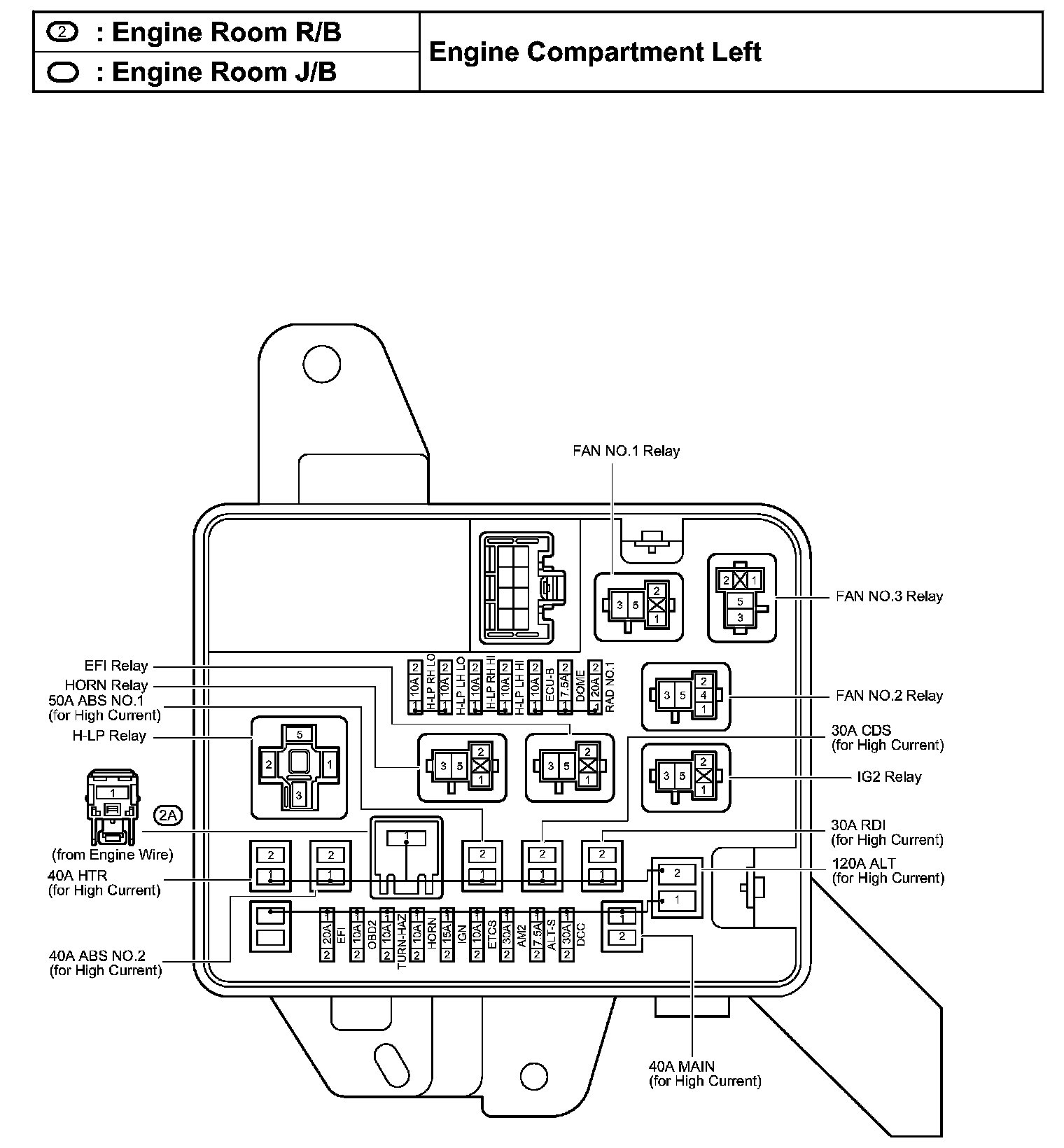

Engine Room R/B, J/B - Engine Compartment Left:

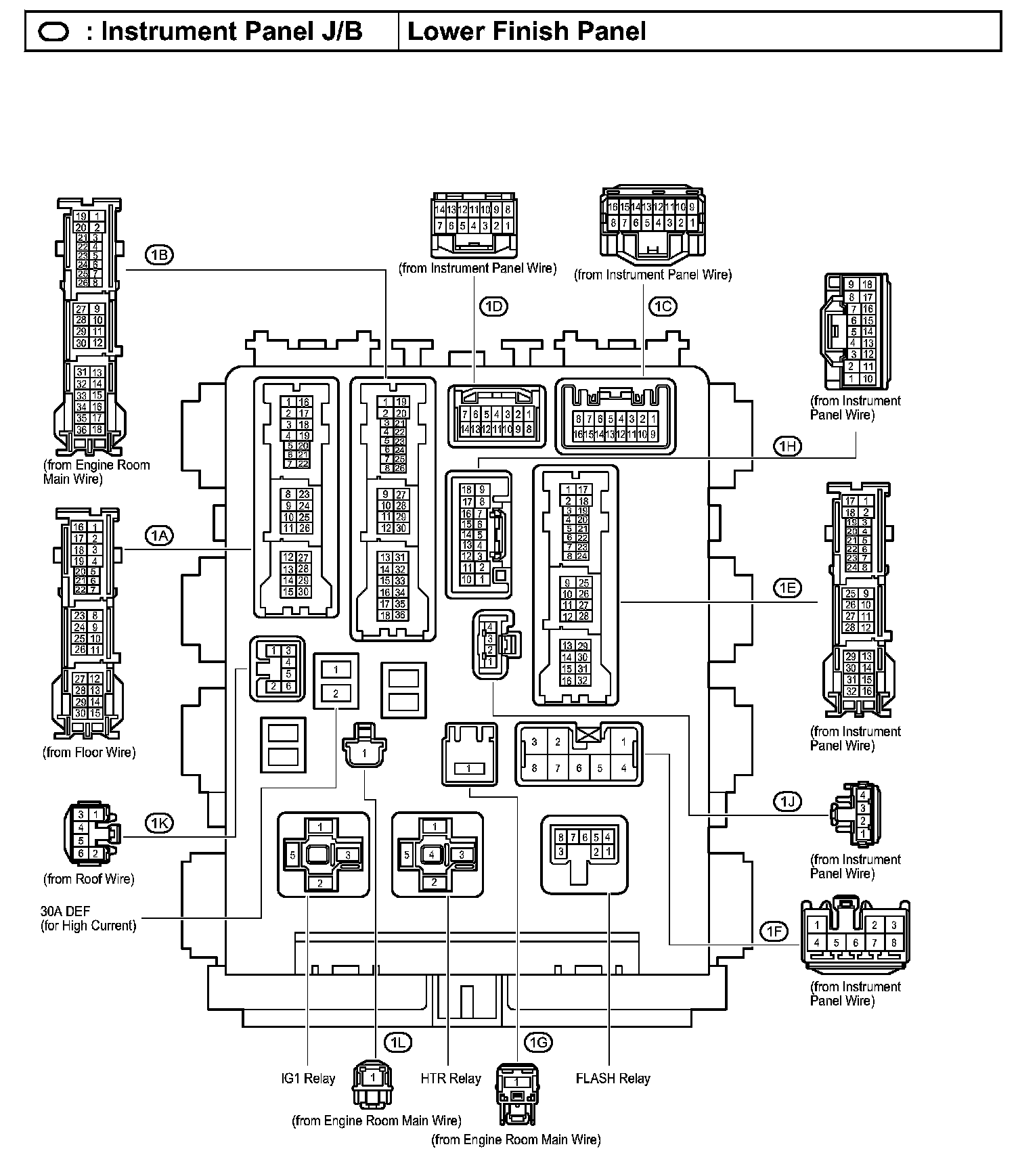

Instrument Panel J/B - Lower Finish Panel:
Instrument Panel J/B - Lower Finish Panel:
