Crankshaft Position Sensor: Testing and Inspection

2AZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSPECTION

1. INSPECT CRANKSHAFT POSITION SENSOR





(a) Measure the resistance of the sensor.

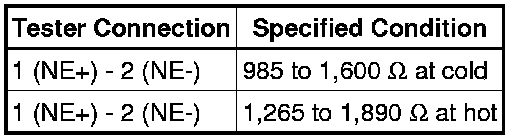

Standard resistance:





NOTICE:

Cold and Hot mean the temperature of the coils themselves. Cold is from -10 to 50°C (14 to 122°F) and Hot is from 50 to 100°C (122 to 212°F).

(b) If the result is not as specified, replace the crankshaft position sensor.
