Electrical Specifications

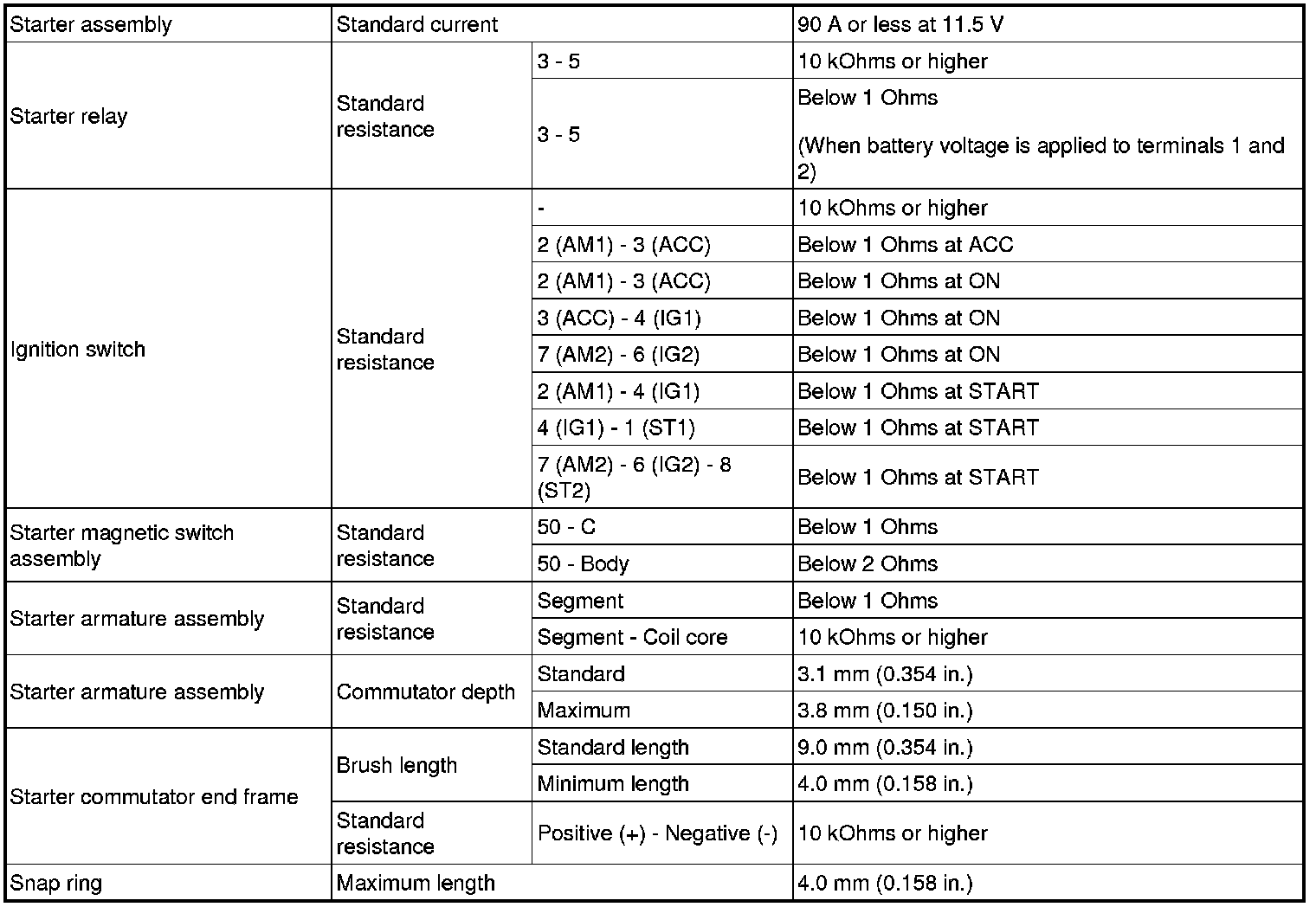

SERVICE SPECIFICATIONS: 2AZ-FE STARTING: SERVICE DATA

2AZ-FE STARTING: SERVICE DATA
