Specifications
>>
Mechanical Specifications
>>
Suspension
>>
System Specifications
System Specifications
SERVICE SPECIFICATIONS:
SUSPENSION
: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS

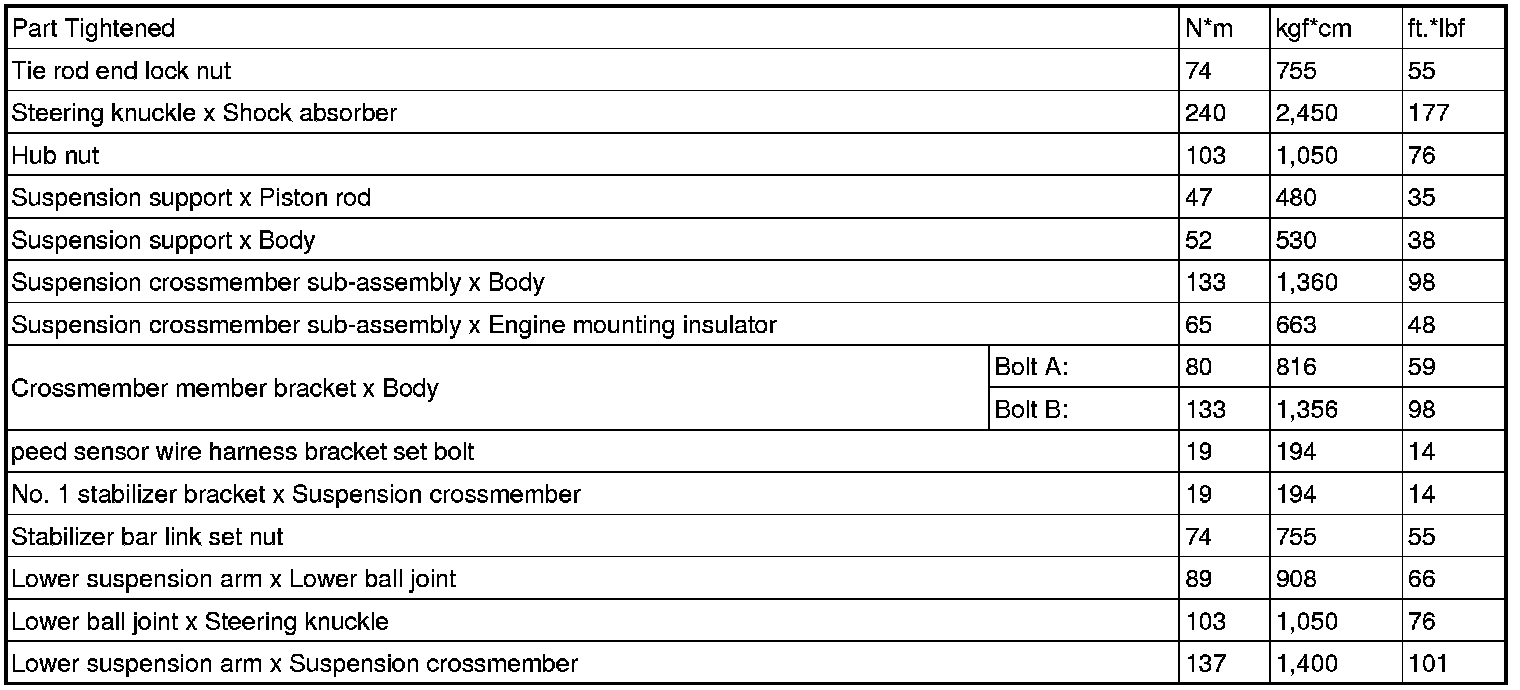

Front
suspension

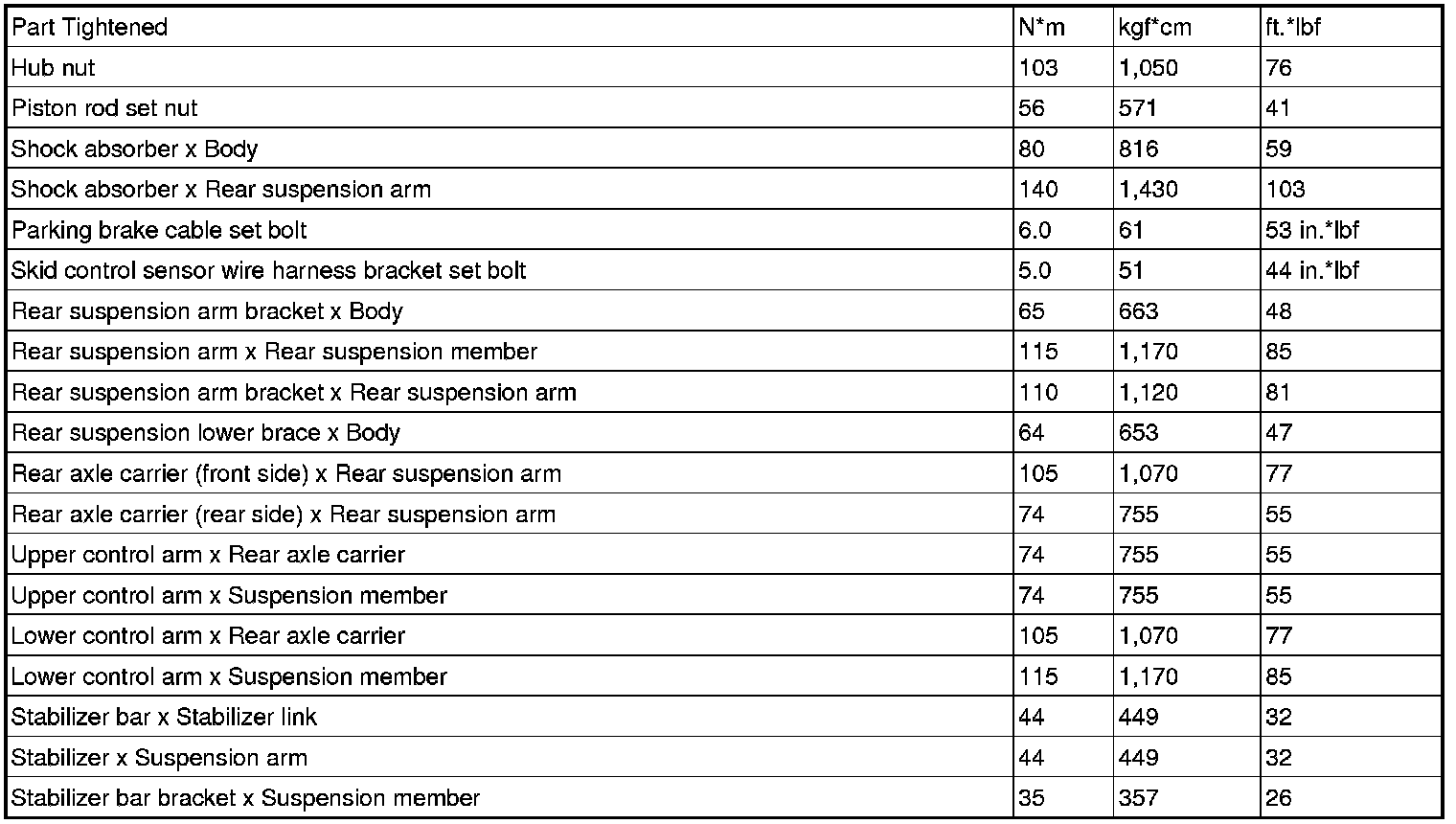

Rear
suspension
