Home >> Scion >> 2009 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering >> System Specifications >> Torque Specifications

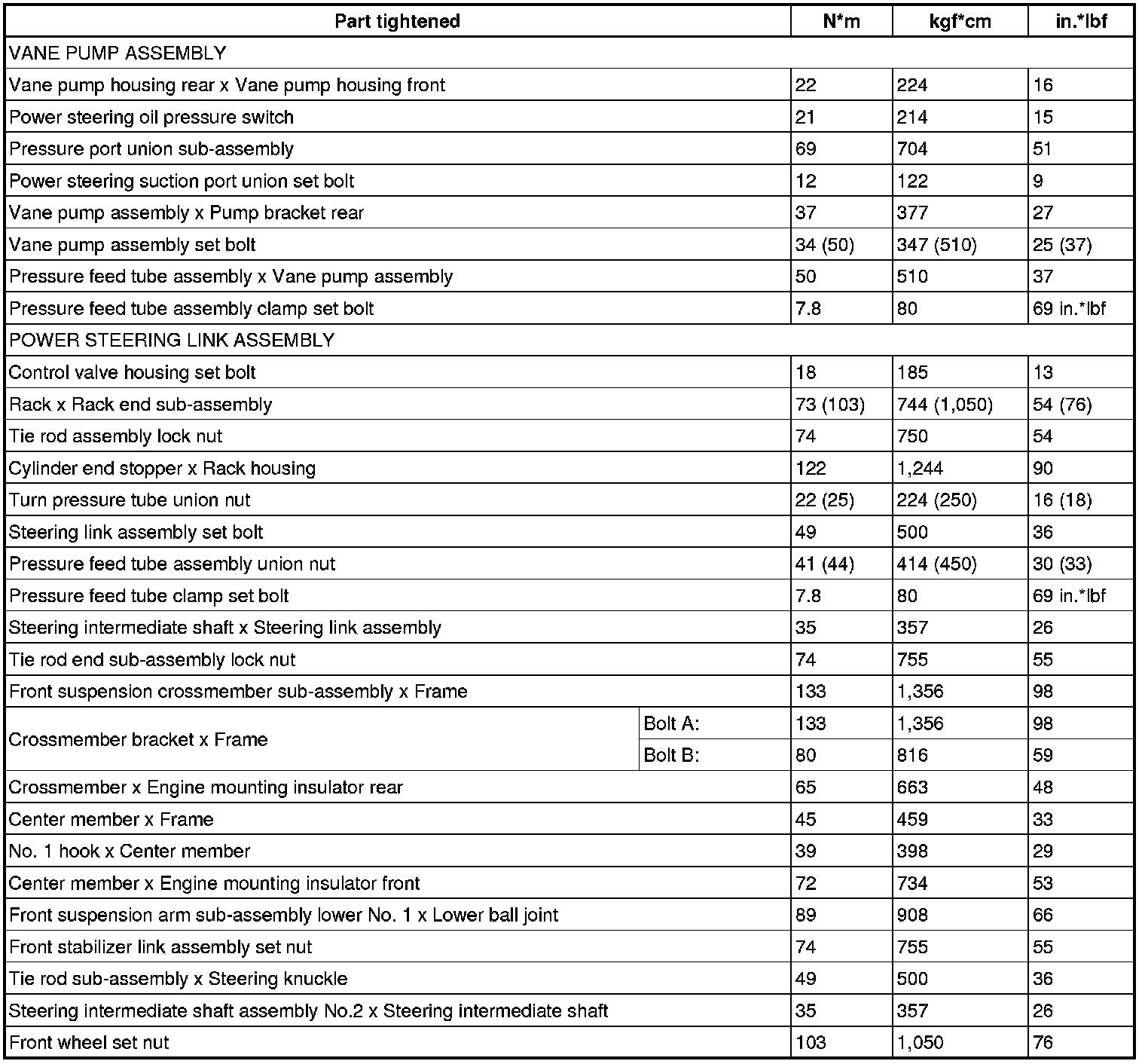

Torque Specifications

SERVICE SPECIFICATIONS: POWER STEERING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

( ): For use without SST
