Service Data

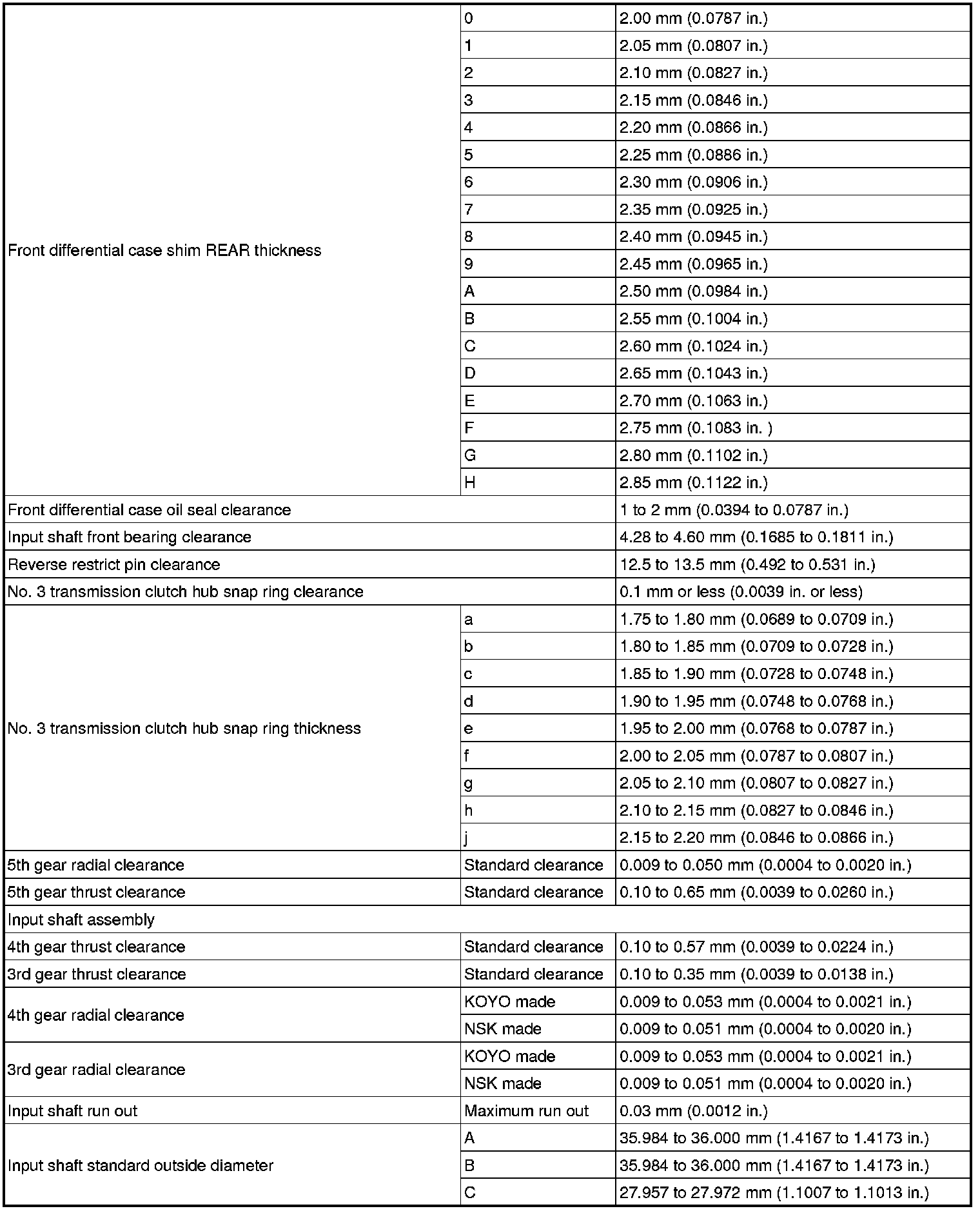

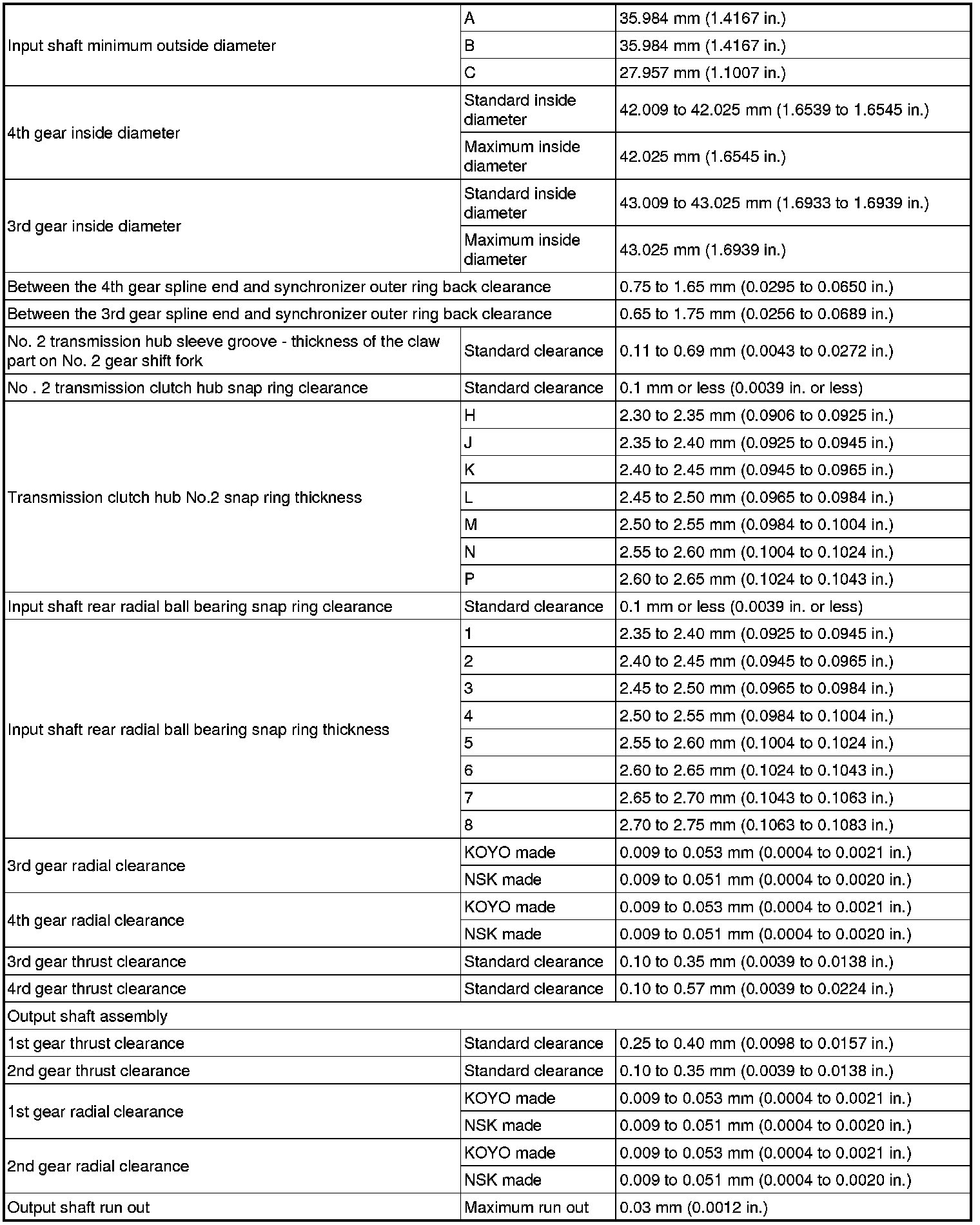

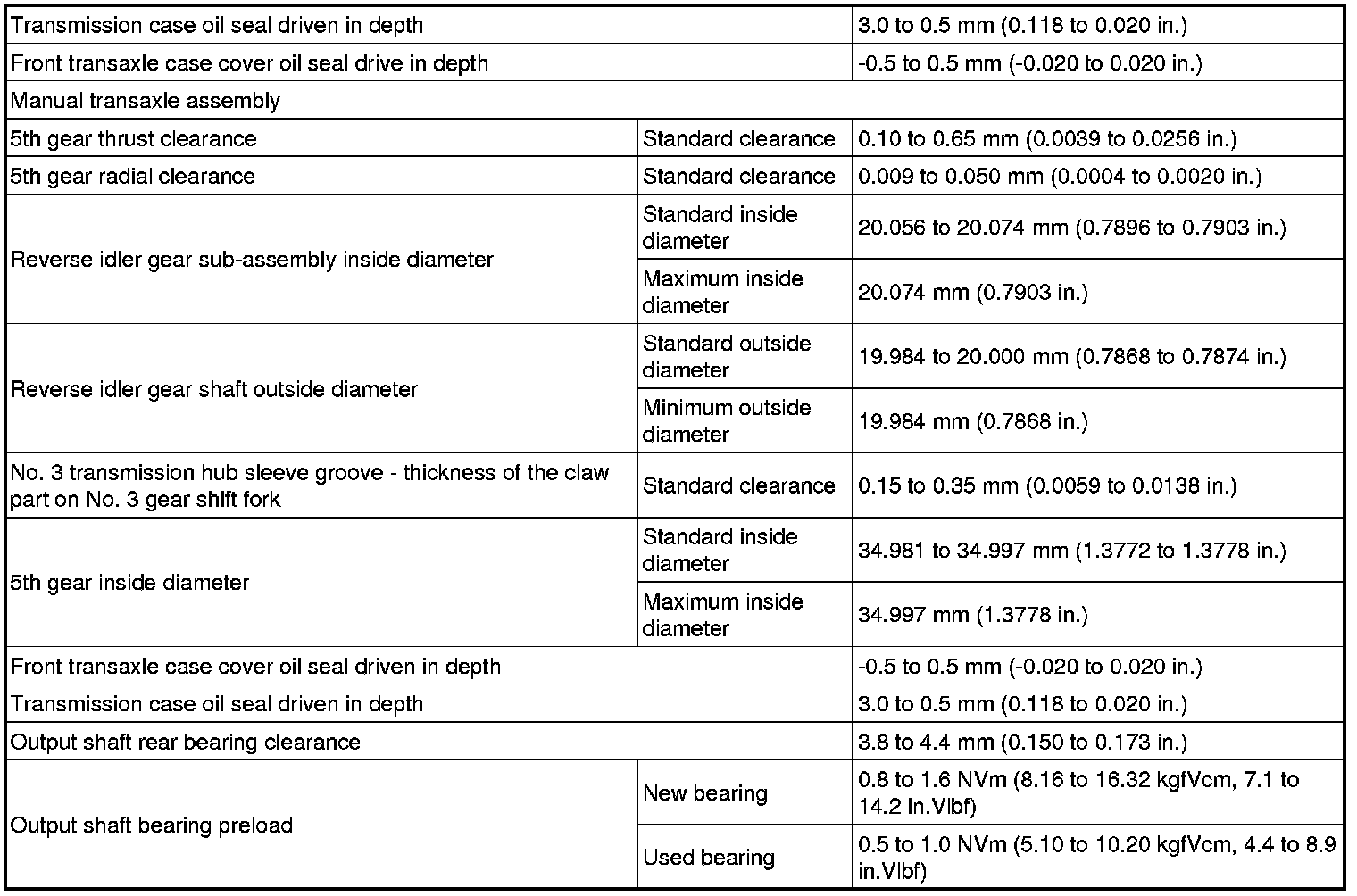

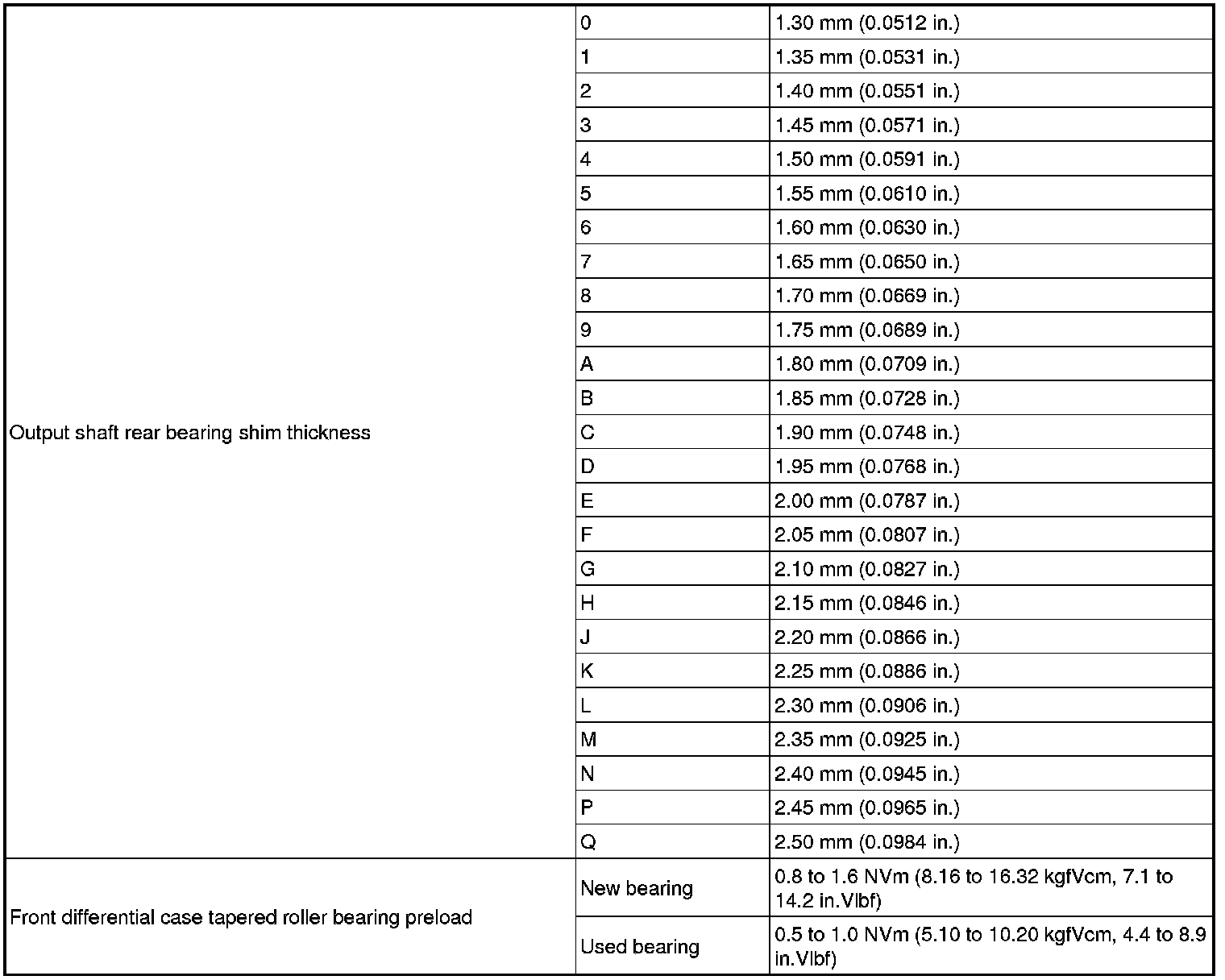

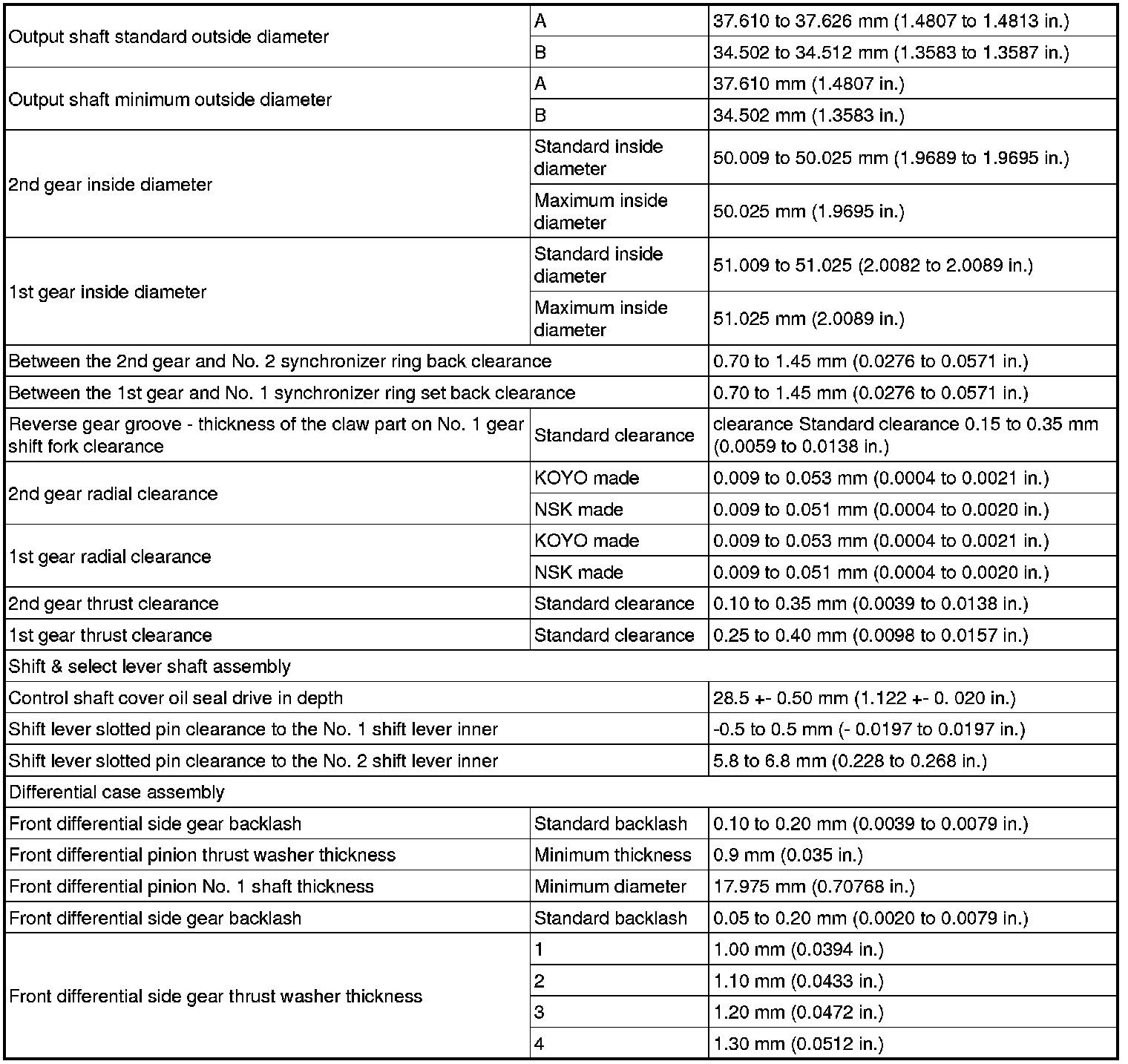

SERVICE SPECIFICATIONS: E350 MANUAL TRANSAXLE: SERVICE DATA

E350 MANUAL TRANSAXLE: SERVICE DATA
