Intake Manifold

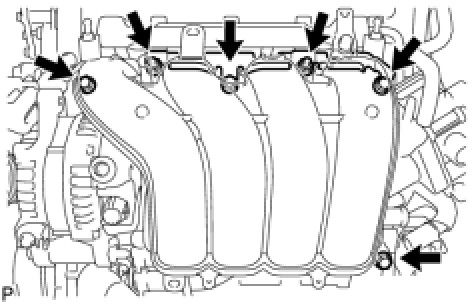

INTAKE MANIFOLD
Torque: 28 Nm (286 kgf-cm, 21 ft-lbf)

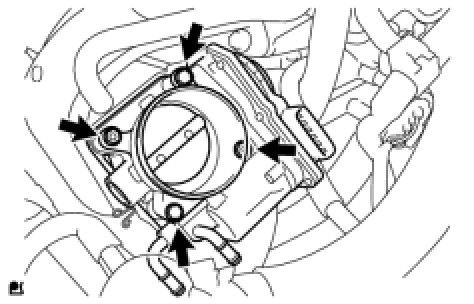

THROTTLE BODY ASSEMBLY
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
