Cranking Holding Function Circuit: Wiring Diagram

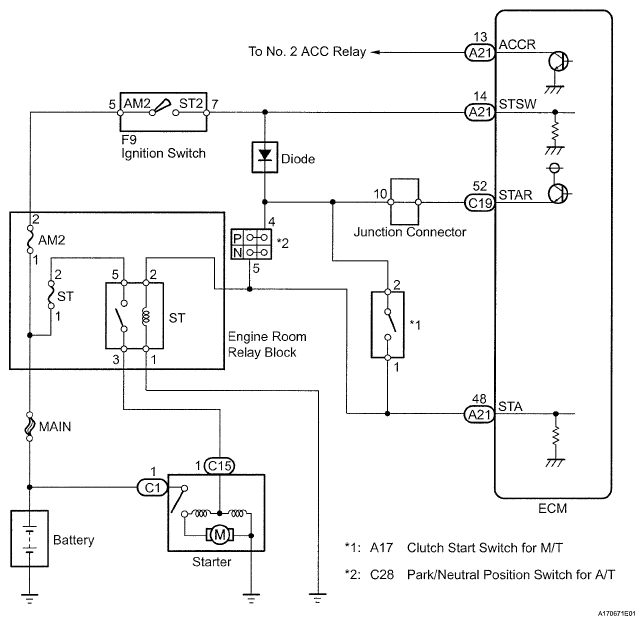

Fig 1: Starter Relay - Wiring Diagram

G05398567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
