Key Reminder: Notes

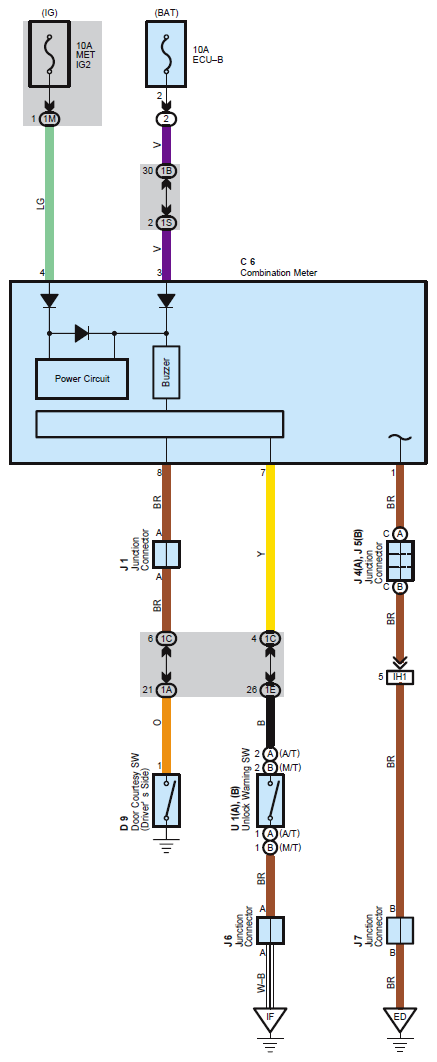

Fig 1: Key Reminder - Circuit Diagram
G07603215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
