Home >> Scion >> 2008 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Locations >> Power Window Control System (w/o Jam Protection Function)

Power Window Control System (w/o Jam Protection Function)

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function): PARTS LOCATION

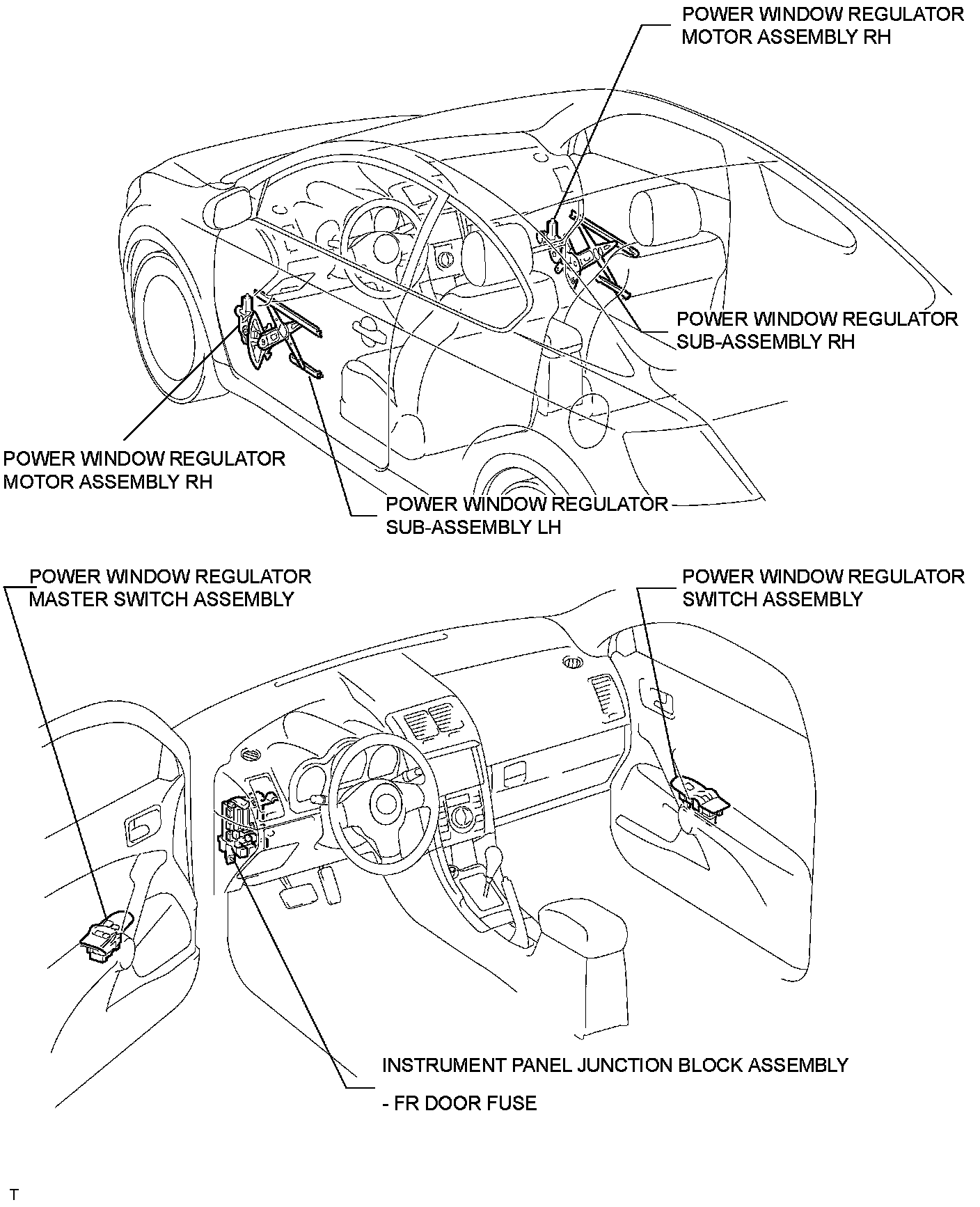

PARTS LOCATION

ILLUSTRATION
