Engine
>>
Intake Manifold
Intake Manifold
INTAKE MANIFOLD
Torque: 30 Nm (305 kgf-cm, 22 ft-lbf)

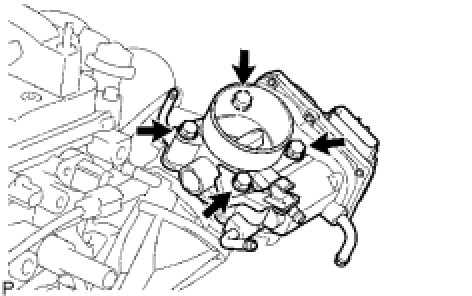

THROTTLE BODY
Torque: 30 Nm (305 kgf-cm, 22 ft-lbf)
