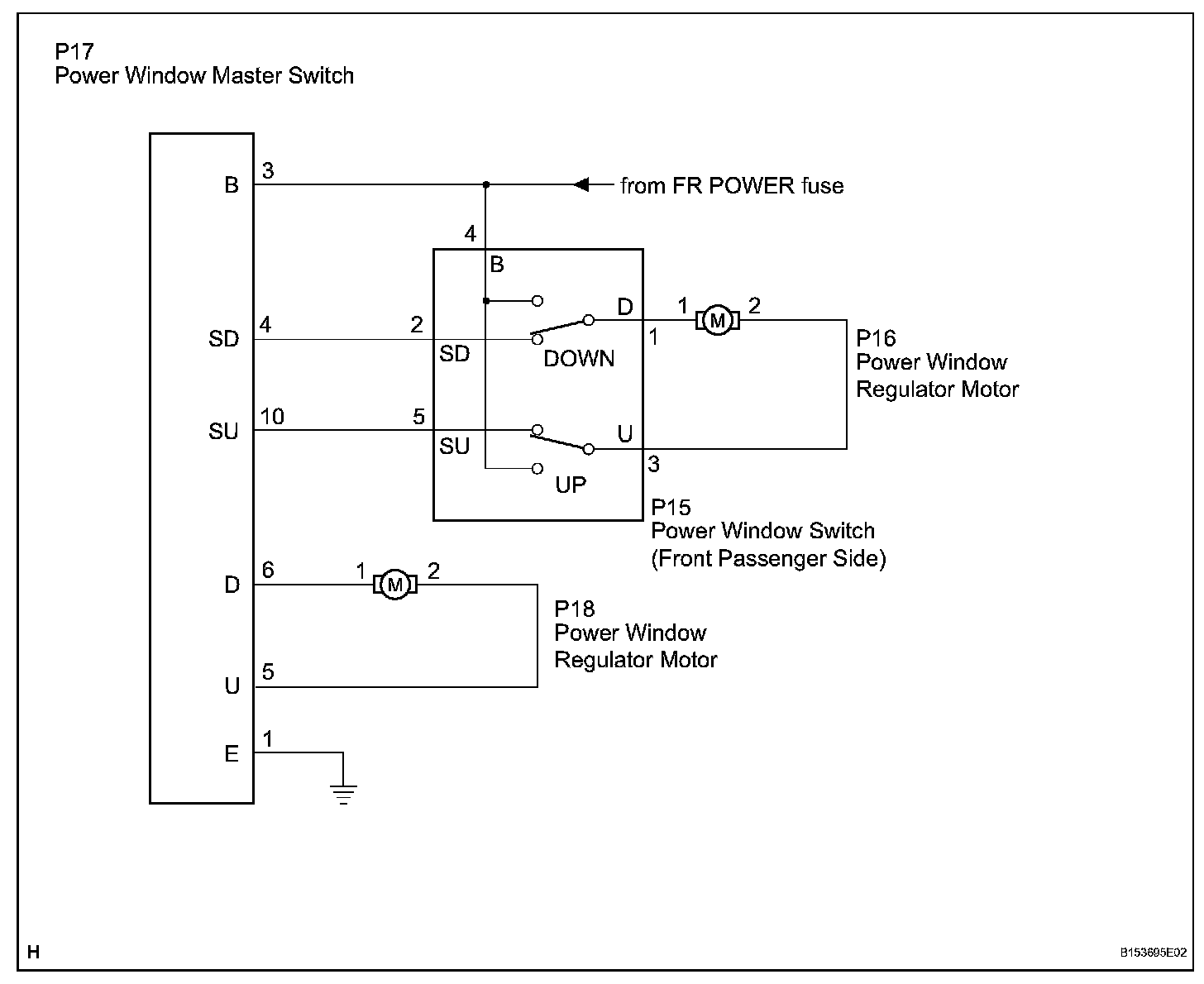

Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Description and Operation >> Power Window Control System (w/o Jam Protection Function) >> System Diagram
