Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications >> Torque

Torque

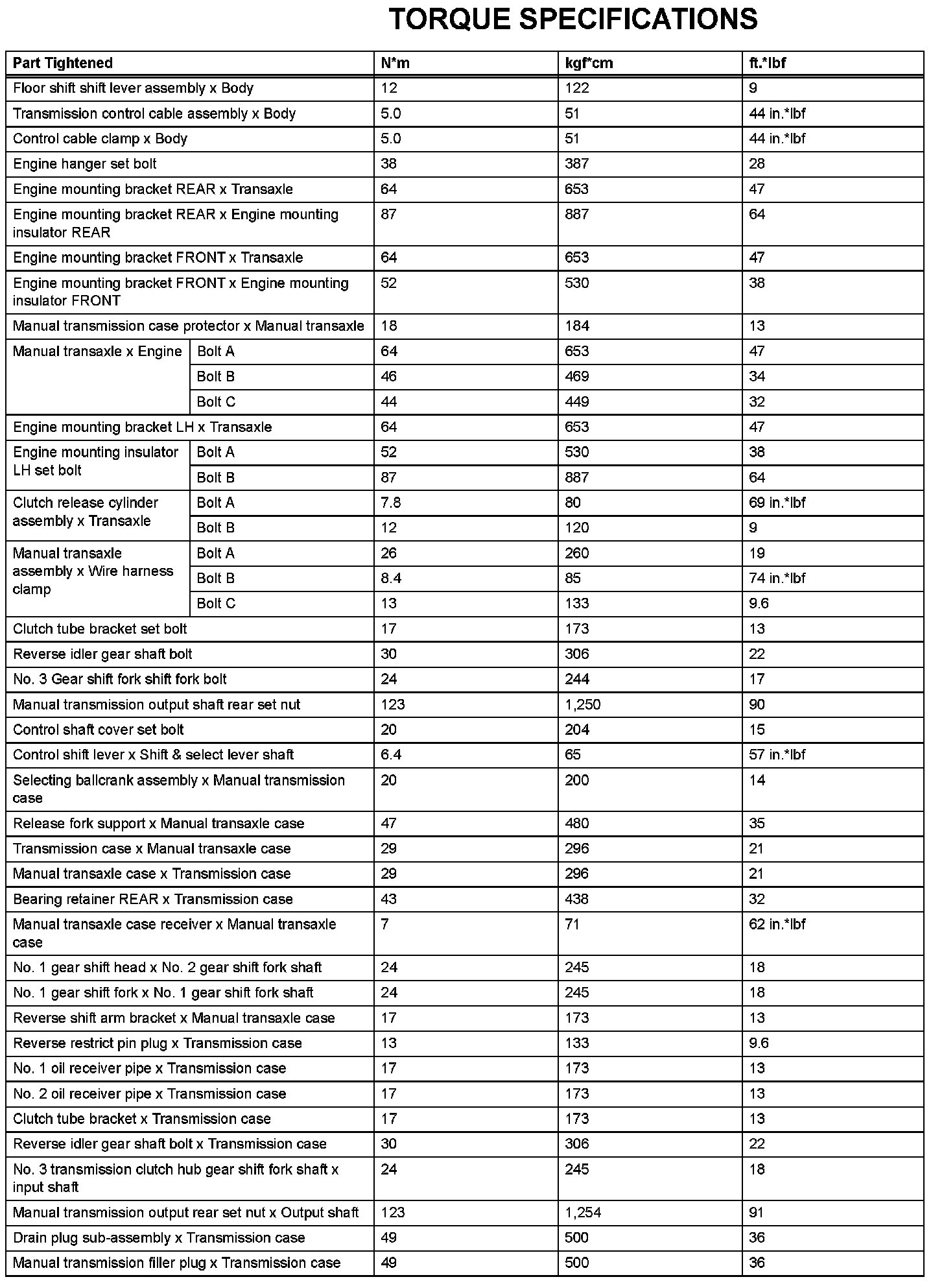

Manual Transaxle - Torque Specifications (Part 1):

Manual Transaxle - Torque Specifications (Part 2):
