Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Data

Service Data

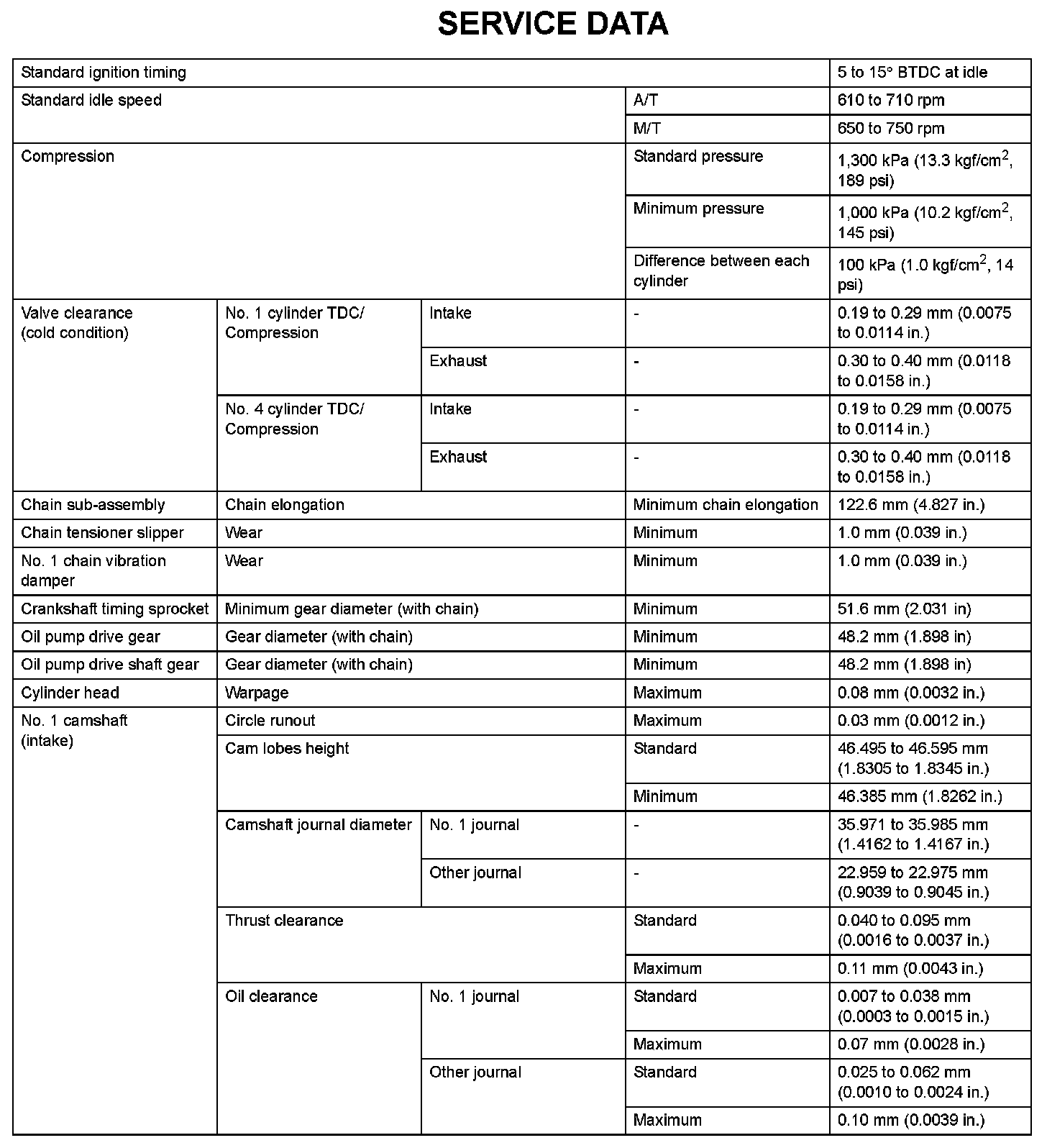

Engine Mechanical - Service Data (Part 1):

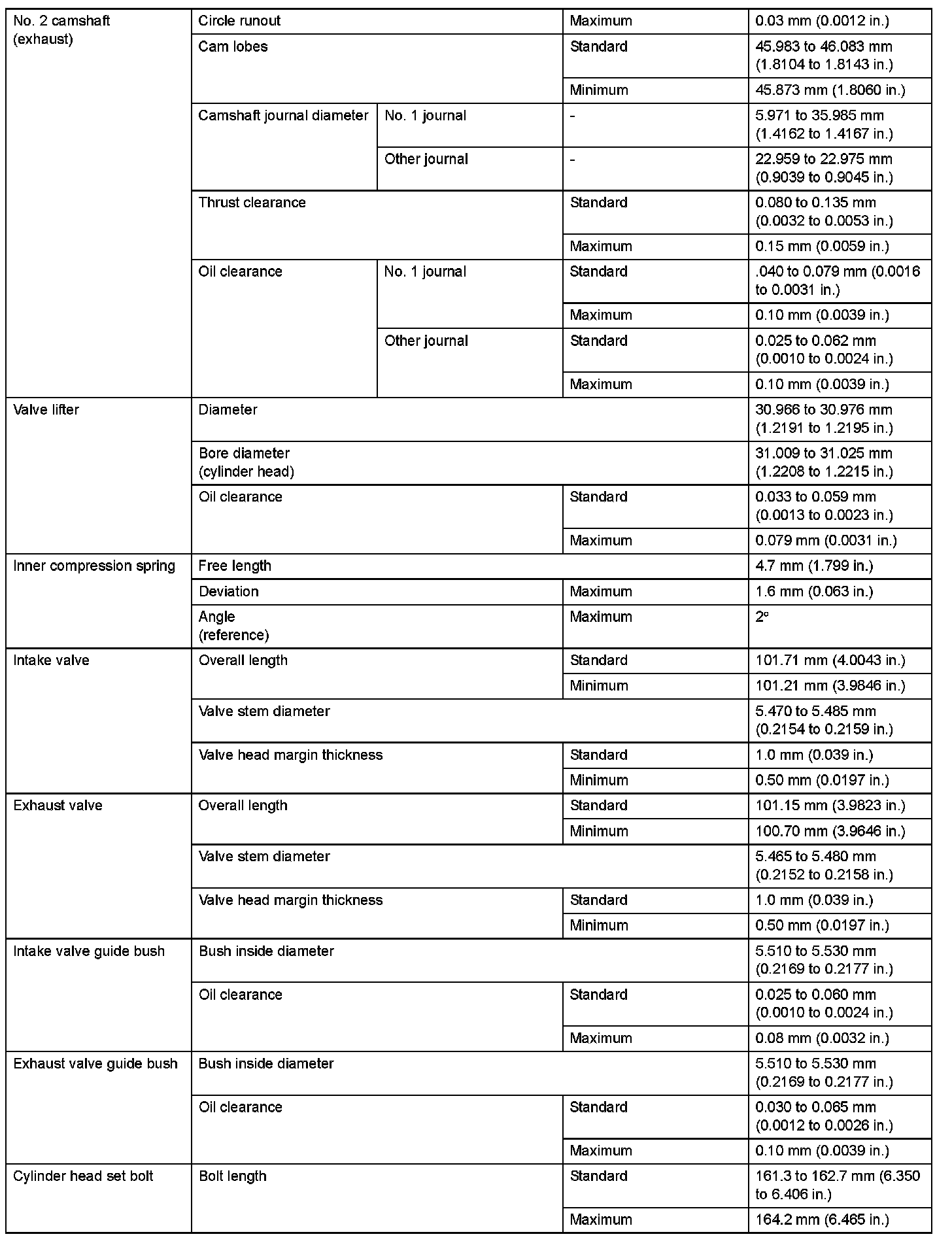

Engine Mechanical - Service Data (Part 2):

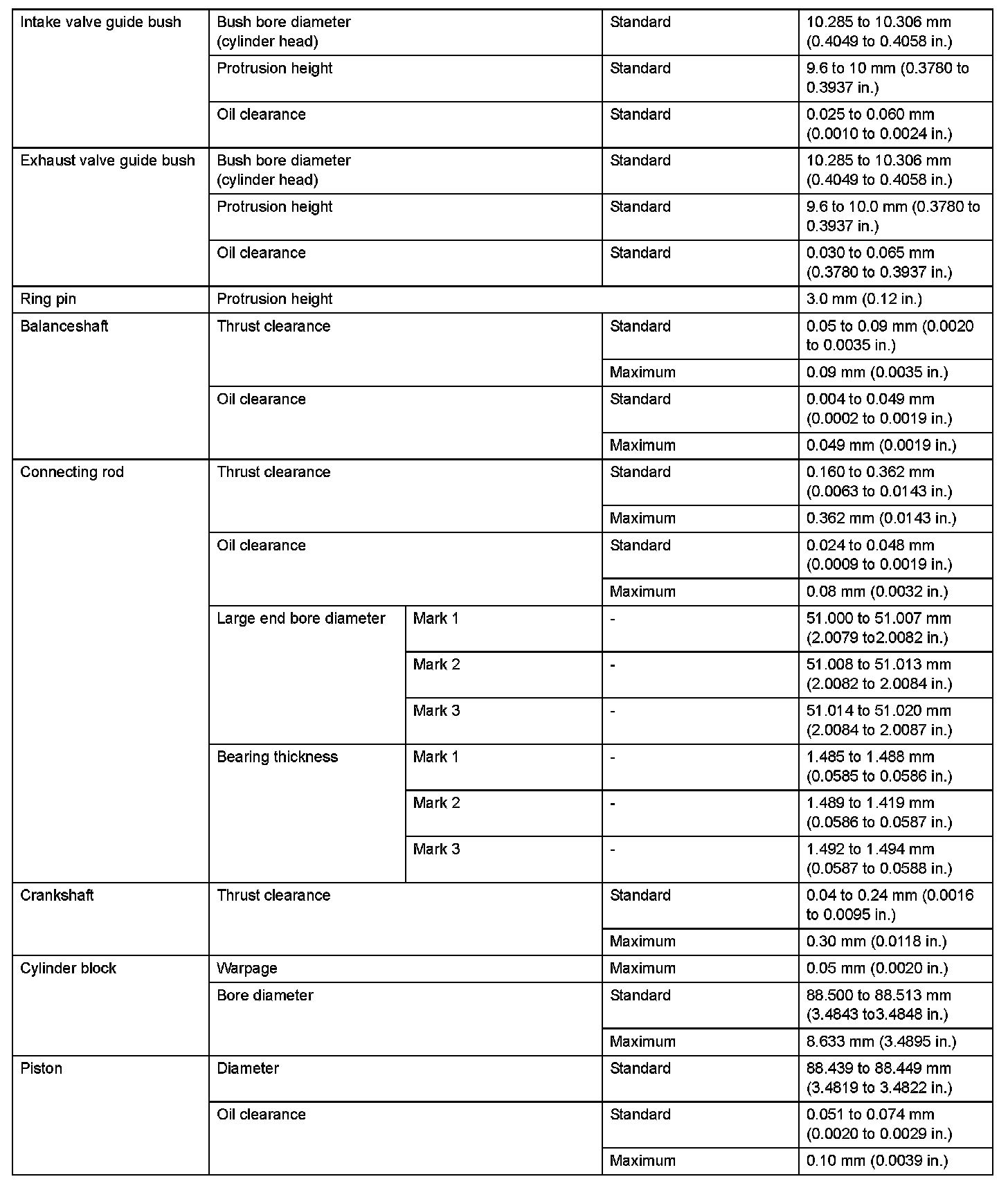

Engine Mechanical - Service Data (Part 3):

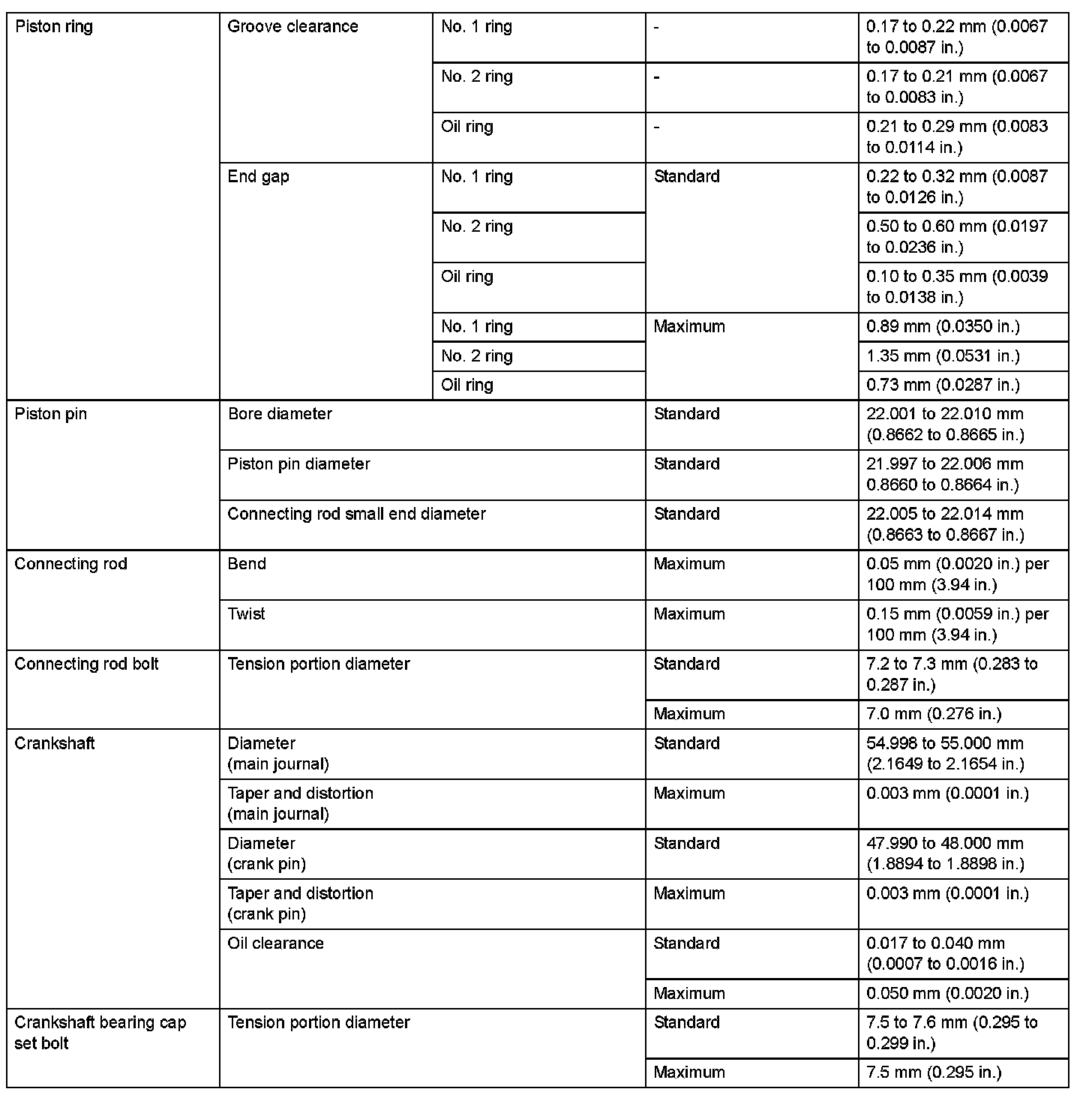

Engine Mechanical - Service Data (Part 4):
