Home >> Scion >> 2006 >> xB Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U340E Automatic Transaxle >> Input Shaft >> Components

Input Shaft: Components

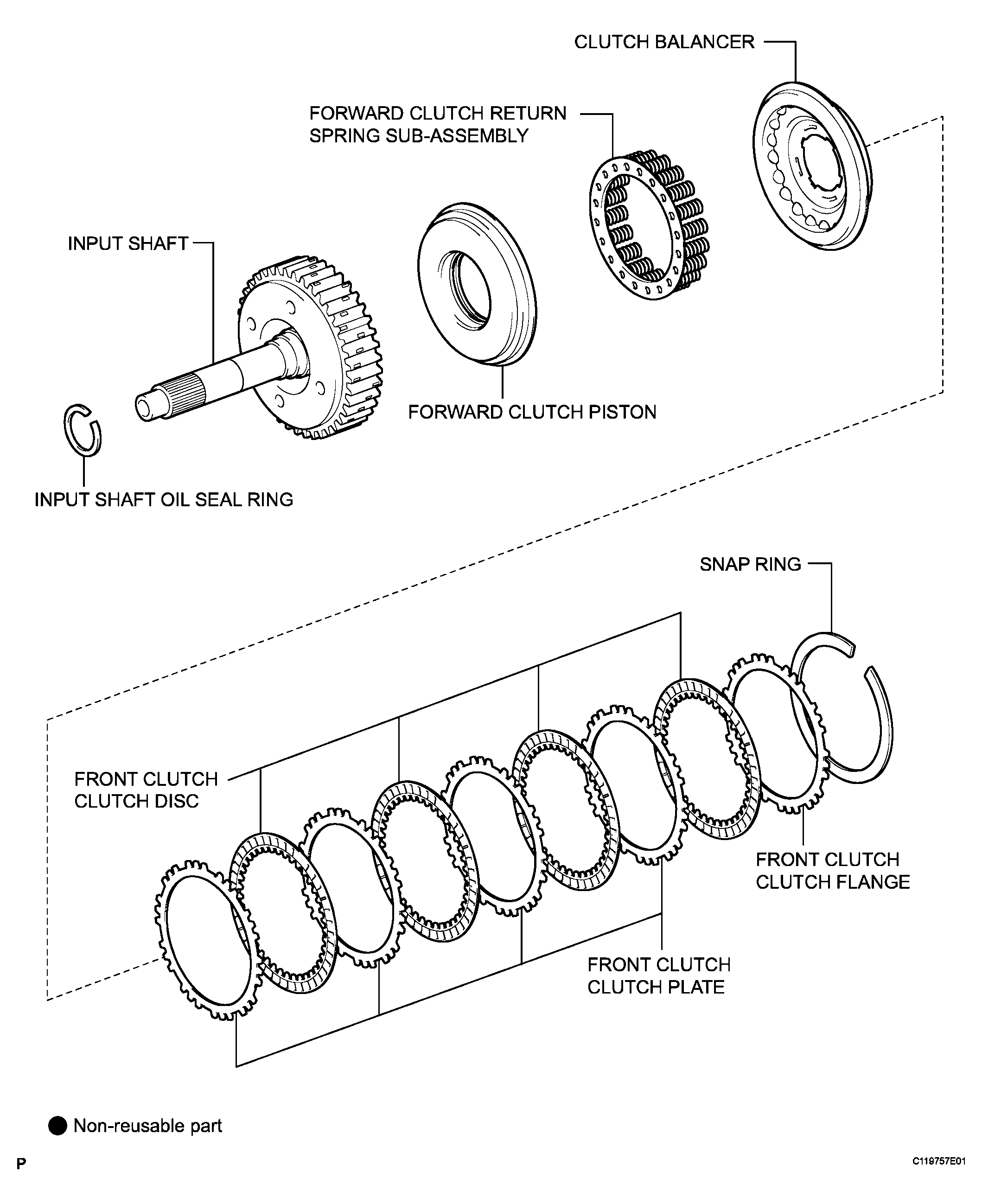

Fig 1: Identifying Input Shaft Components

G04227874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
