Throttle Position Sensor: Testing and Inspection

INSPECTION

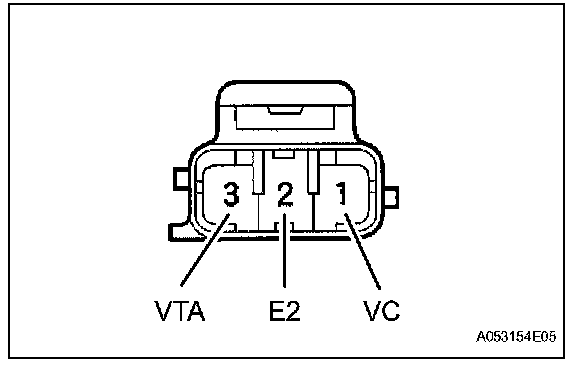

1. INSPECT THROTTLE POSITION SENSOR

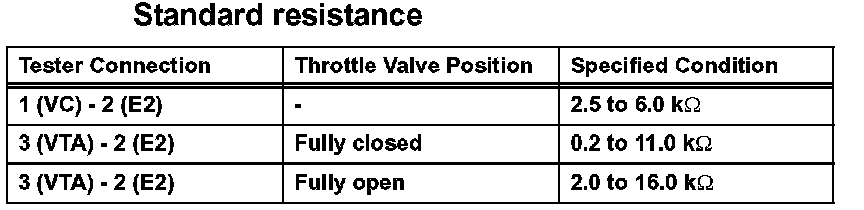

a. Measure the resistance of the sensor.

If the resistance is not as specified, replace the throttle position sensor.
