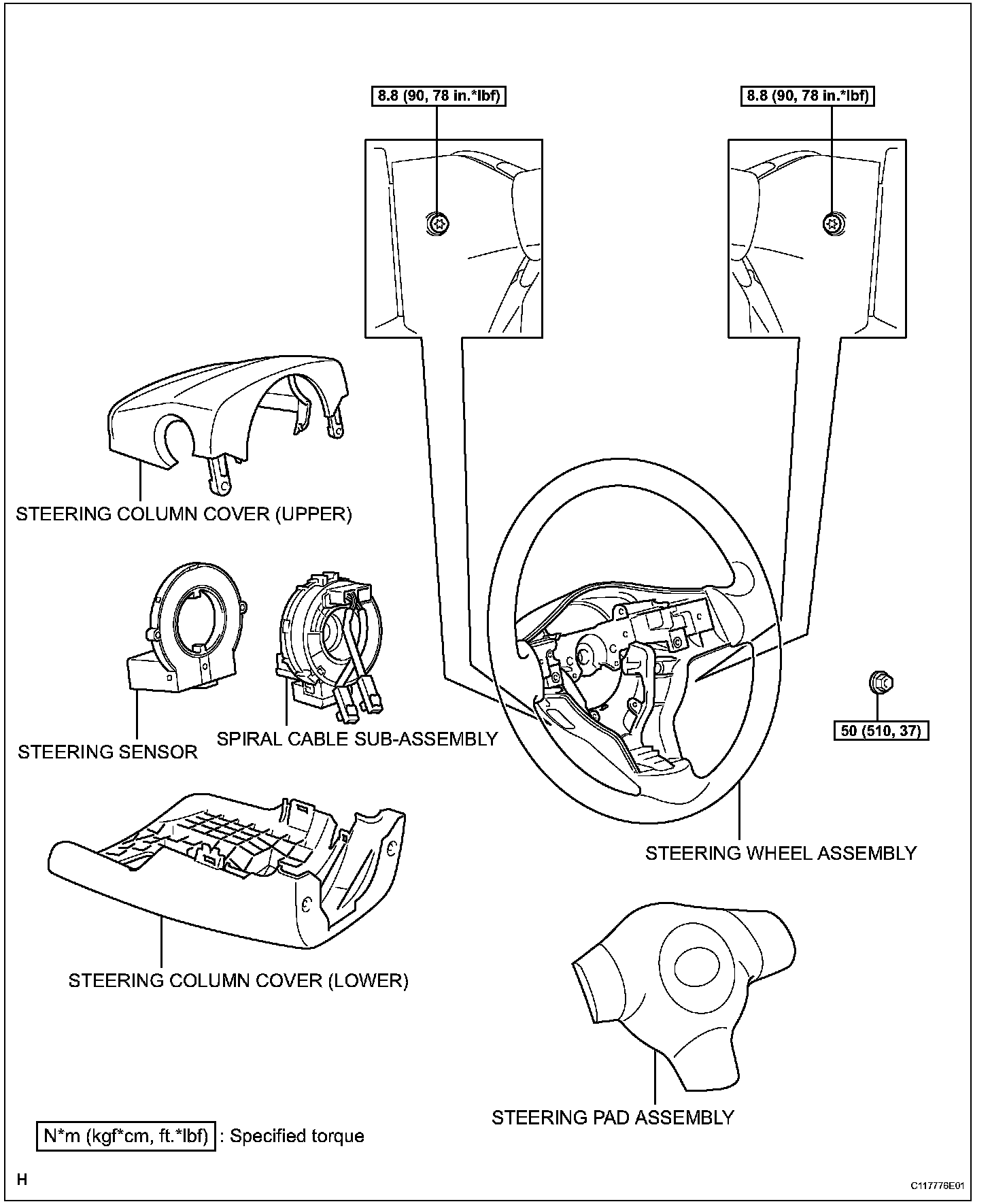

Steering Angle Sensor, Traction Control
Steering Angle Sensor, Traction Control
Steering Sensor (w/VSC):
