Impact Sensor
Impact Sensor

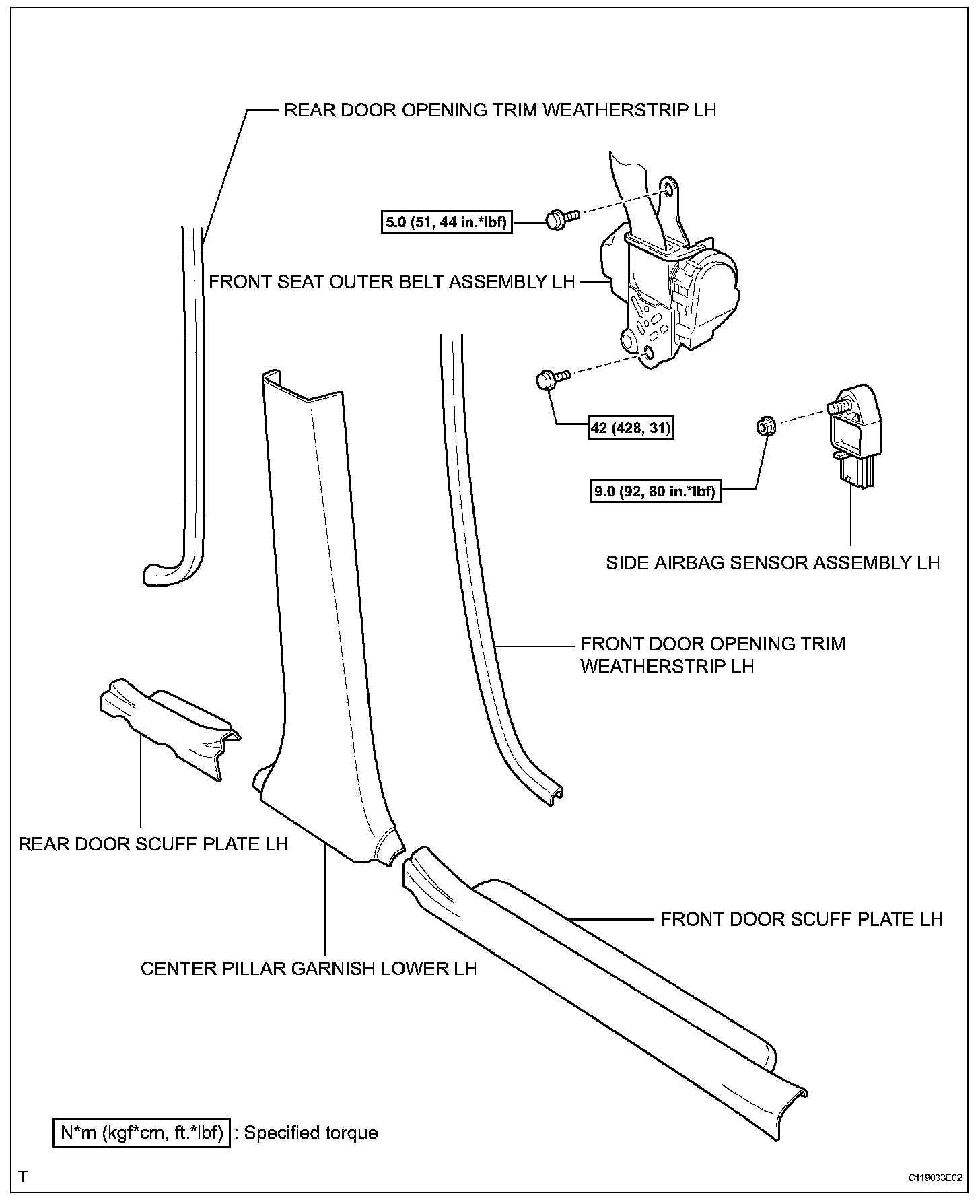

Side Airbag Sensor:

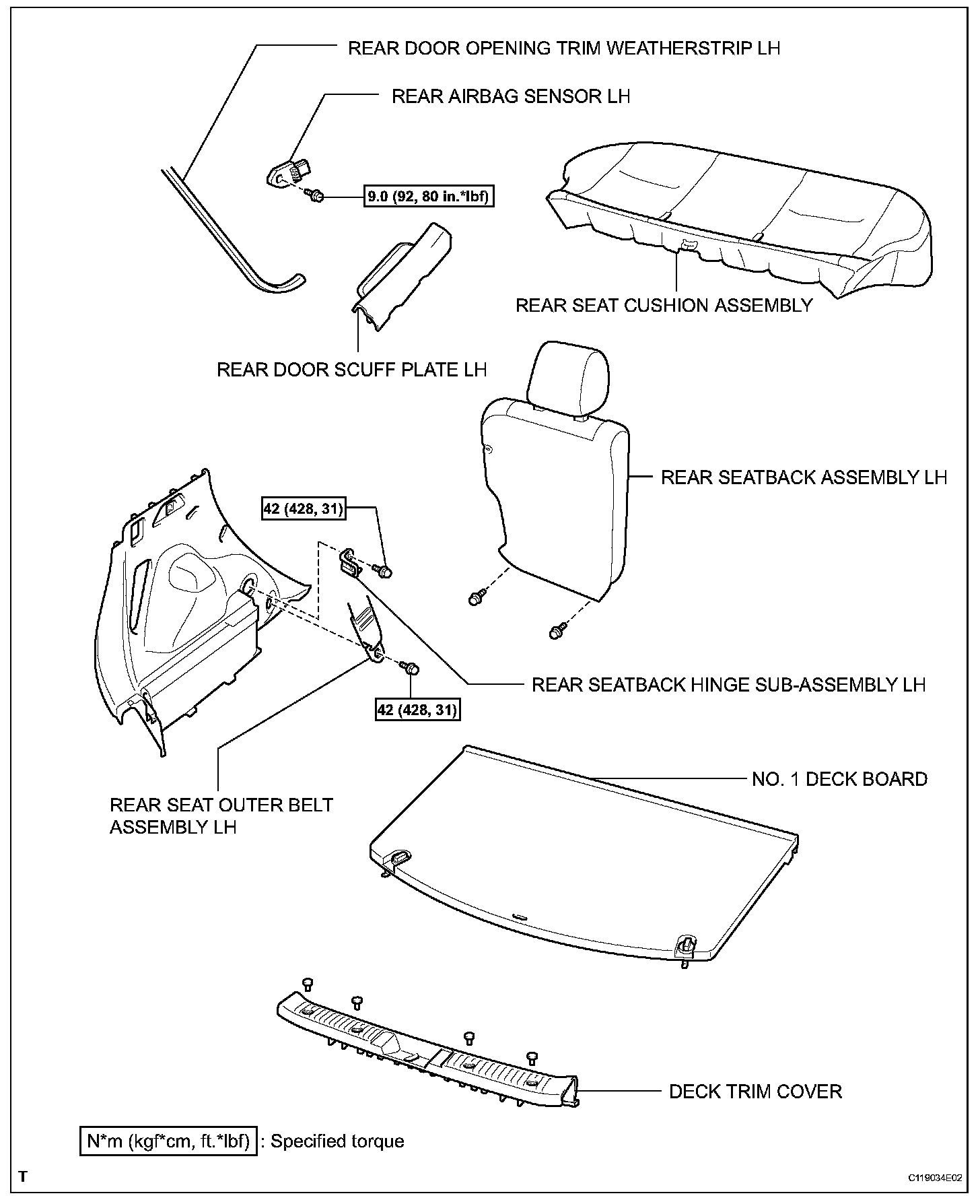

Rear Airbag Sensor:

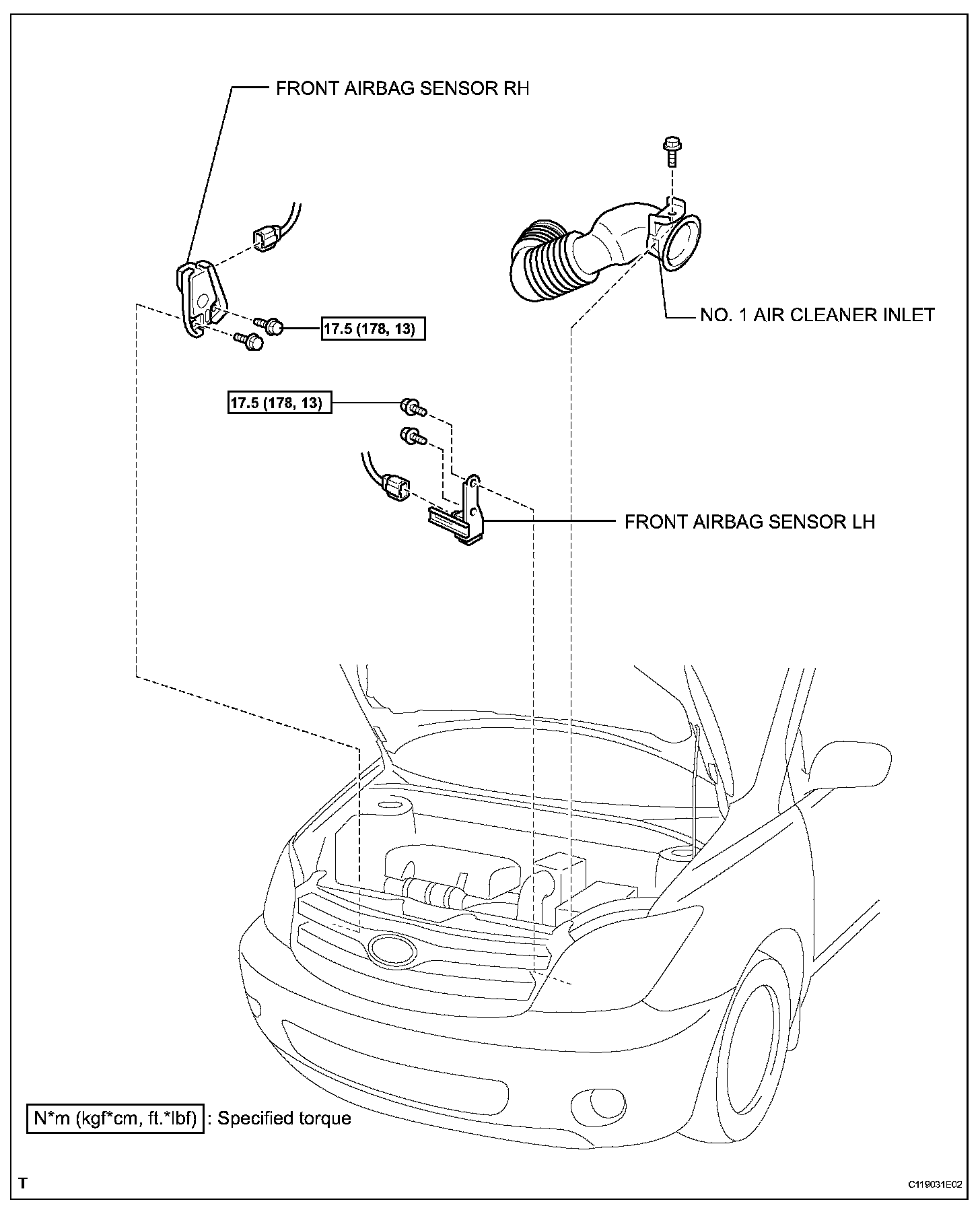

Front Airbag Sensor:

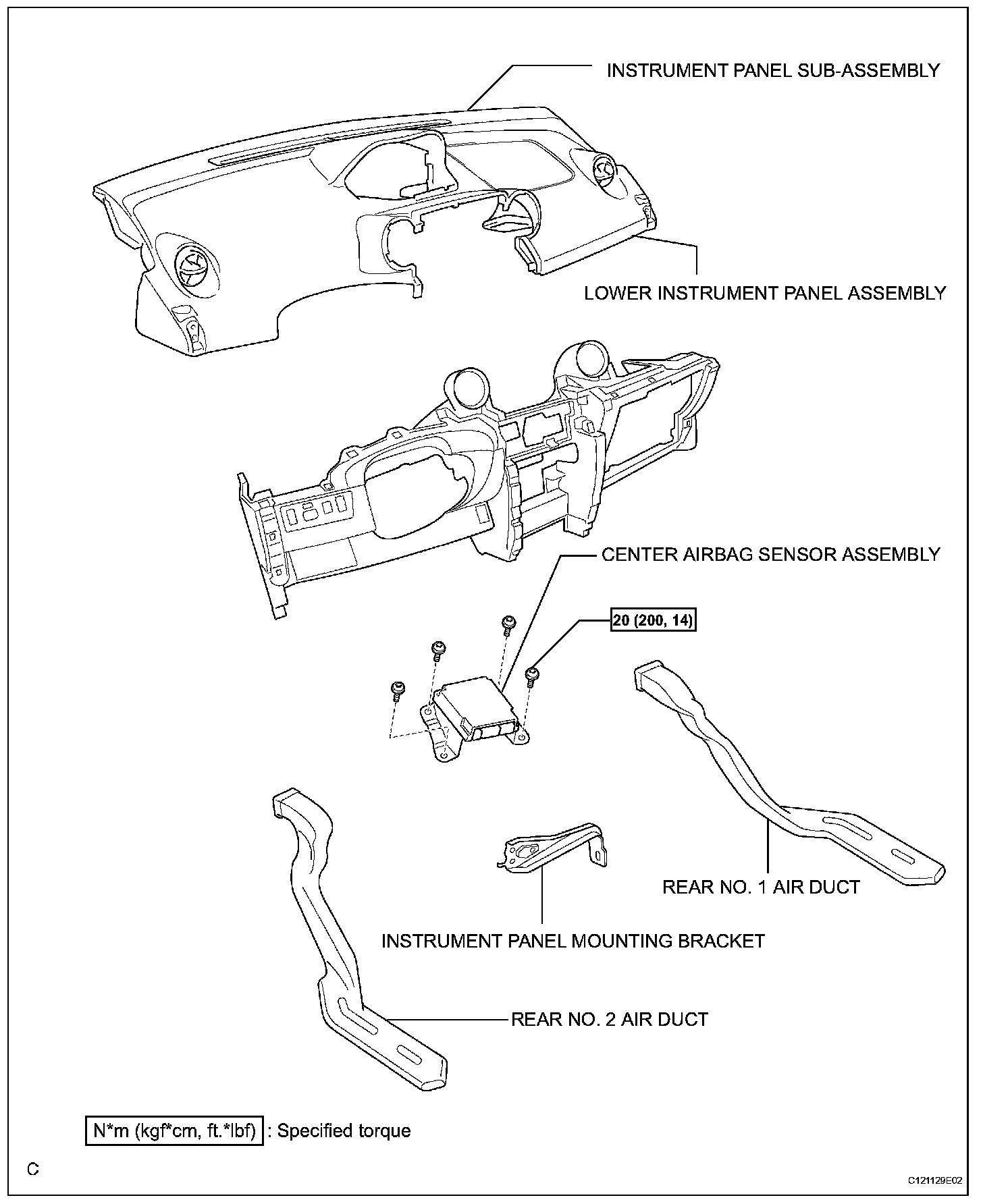

Center Airbag Sensor Assembly:
