Home >> Scion >> 2006 >> xA Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U340E Automatic Transaxle >> Park / Neutral Position Switch >> Components

Park / Neutral Position Switch: Components

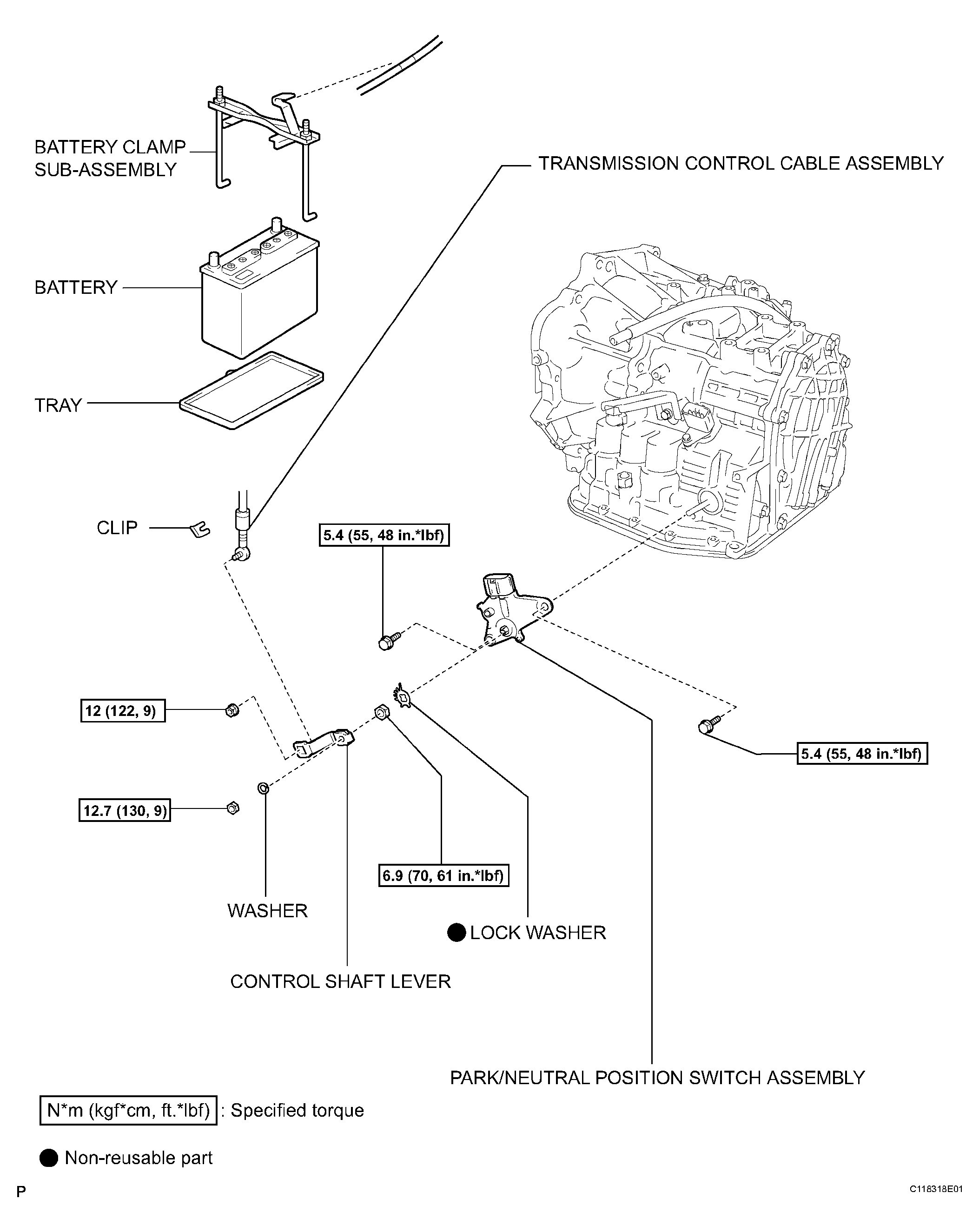

Fig 1: Identifying Park / Neutral Position Switch Components

G04153969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
