How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING

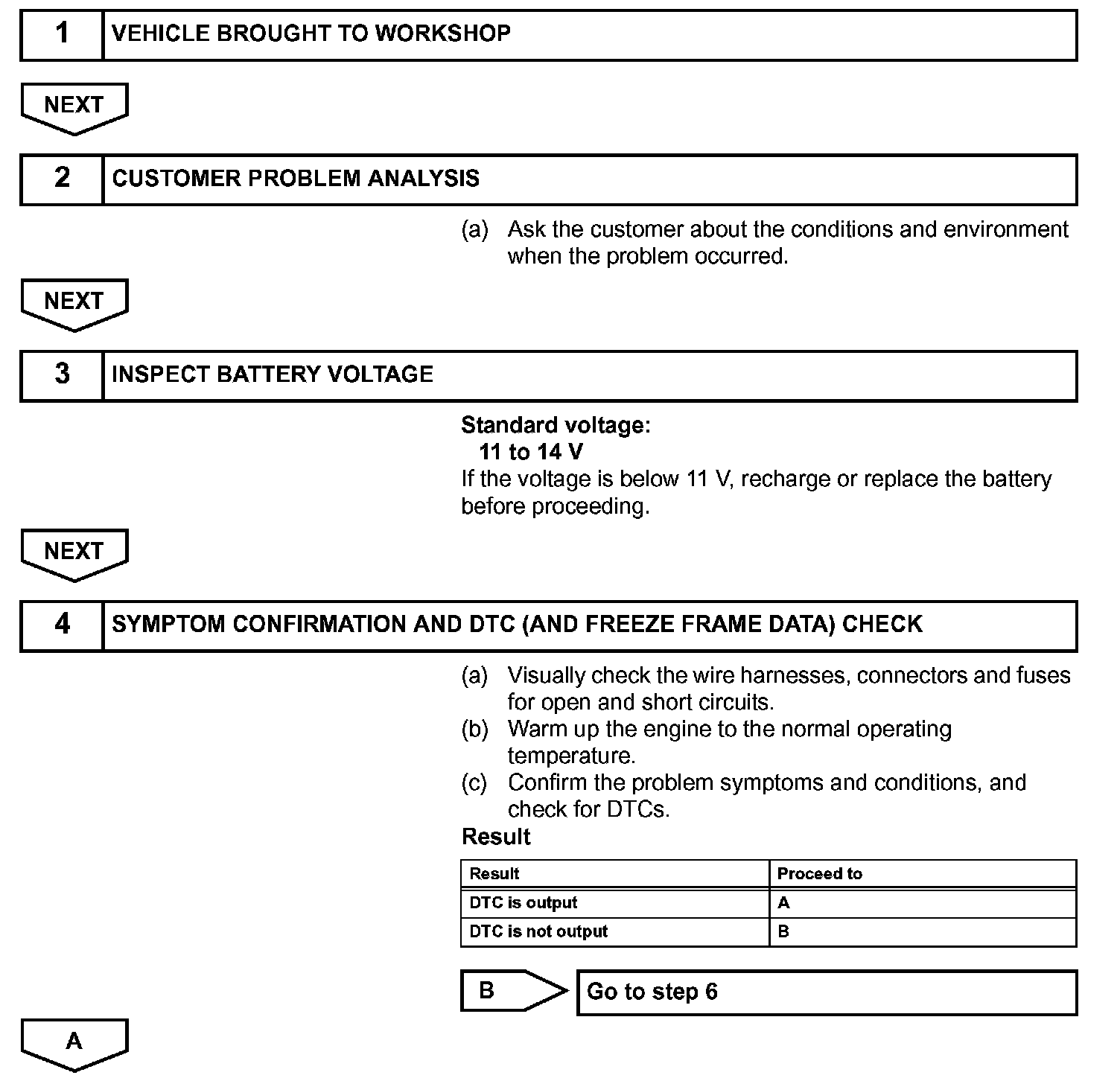

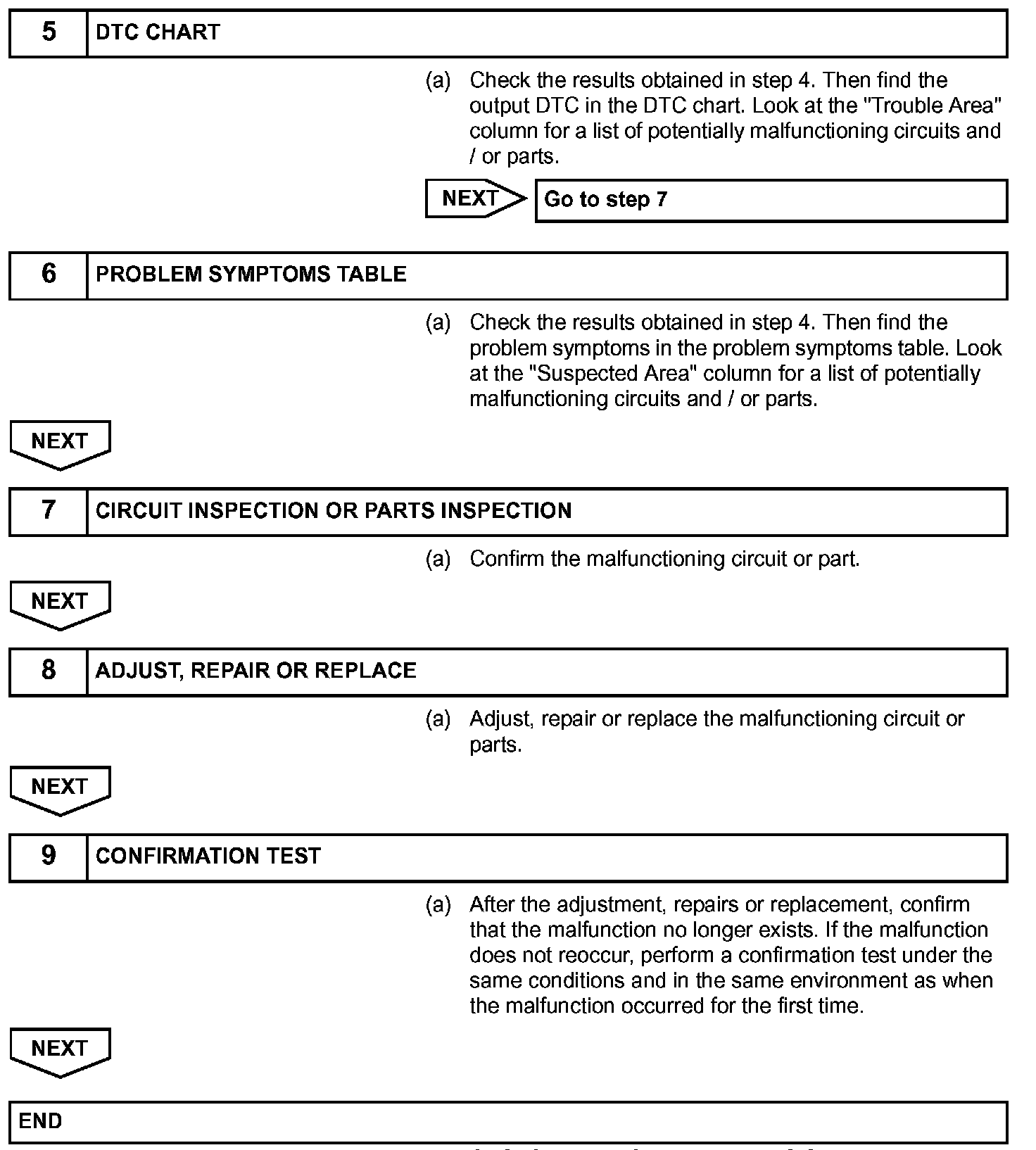

OPERATION FLOW









HINT: Perform troubleshooting in accordance with the procedures. The given is an outline of basic troubleshooting procedures. Confirm the troubleshooting procedures for the circuit you are working on before beginning troubleshooting.
