Scion
>>
2006
>>
tC L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Window Glass
Window Glass

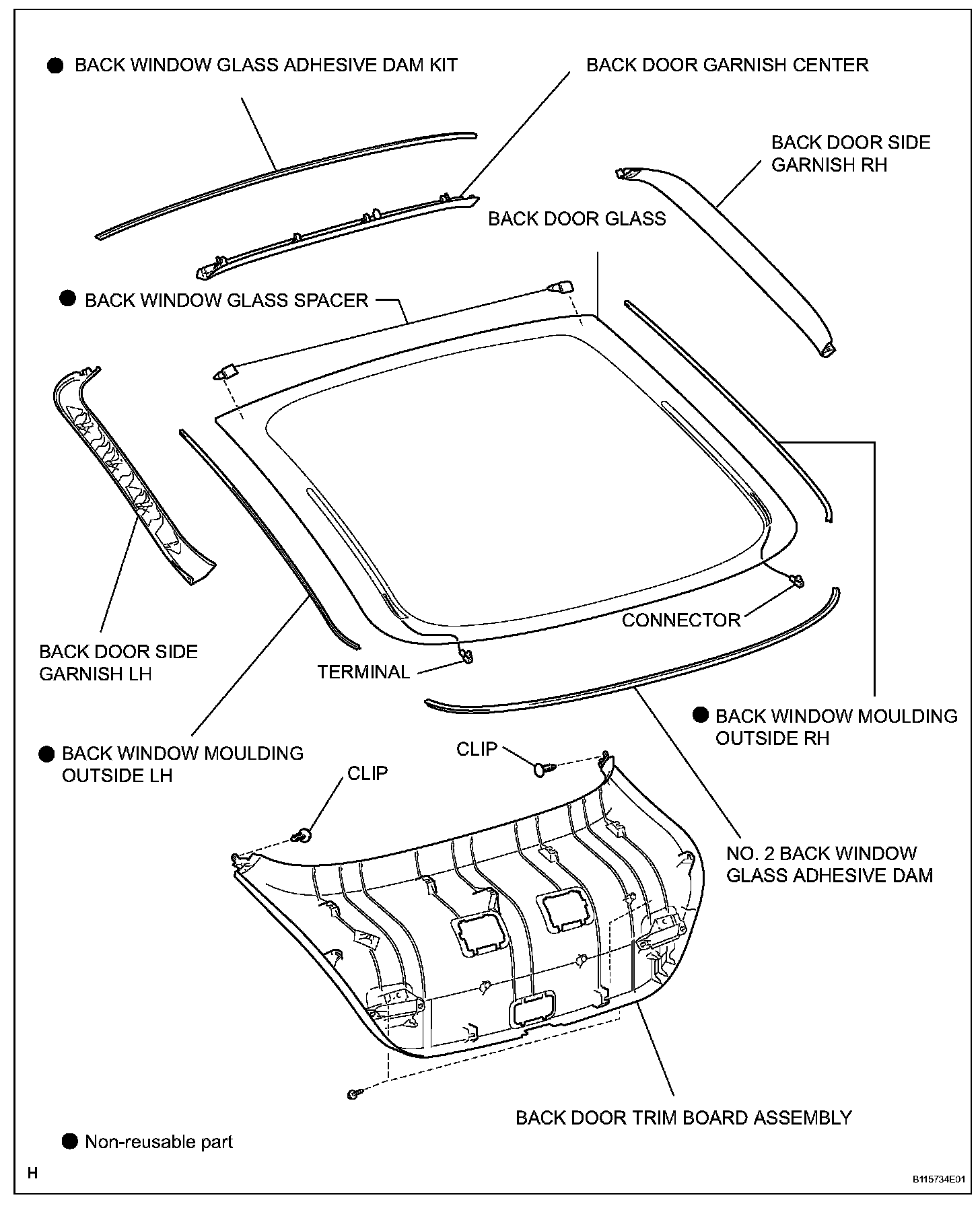

Back Door Glass:

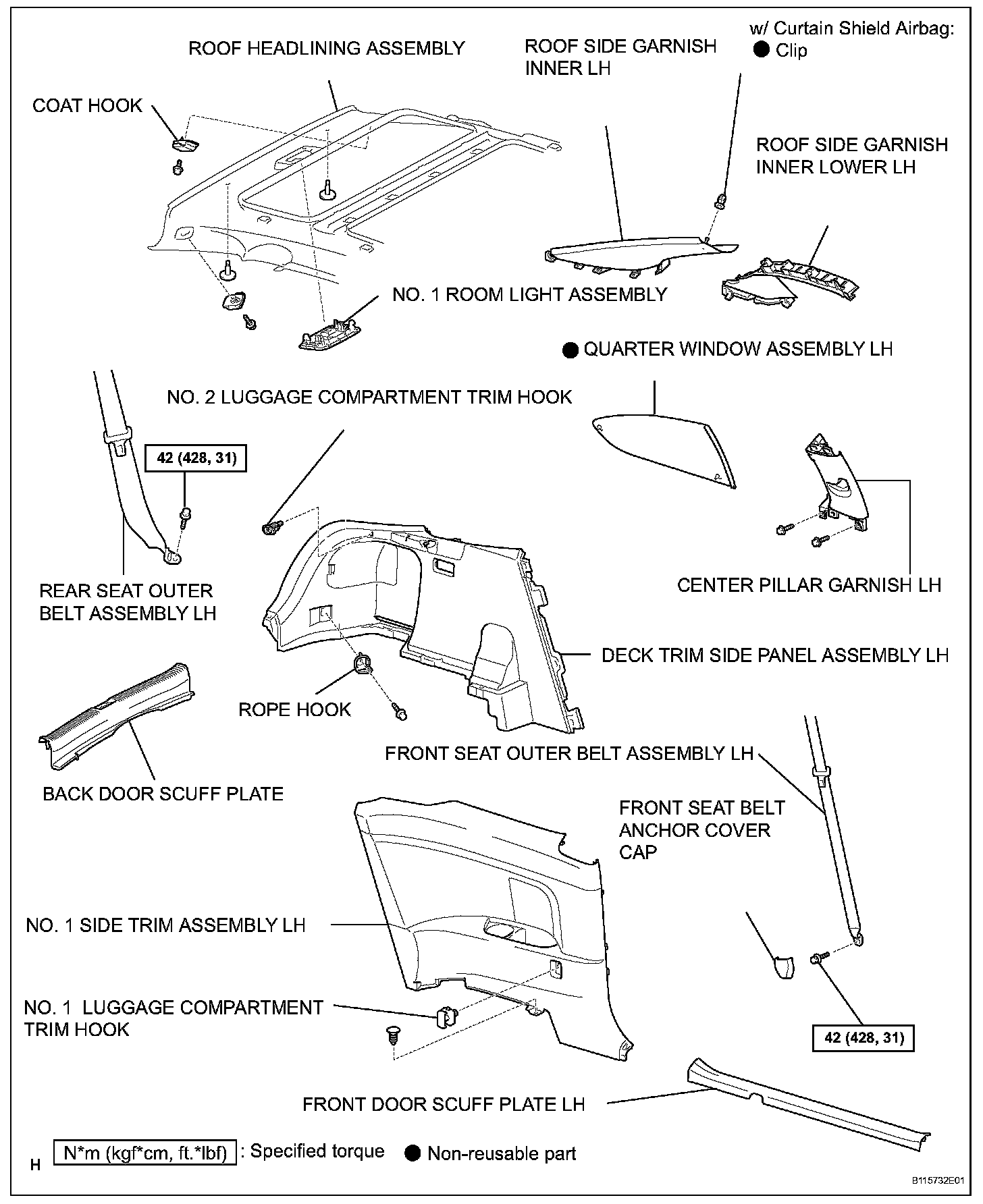

Quarter Window Glass:
Quarter Window Glass:
