Engine Control Module

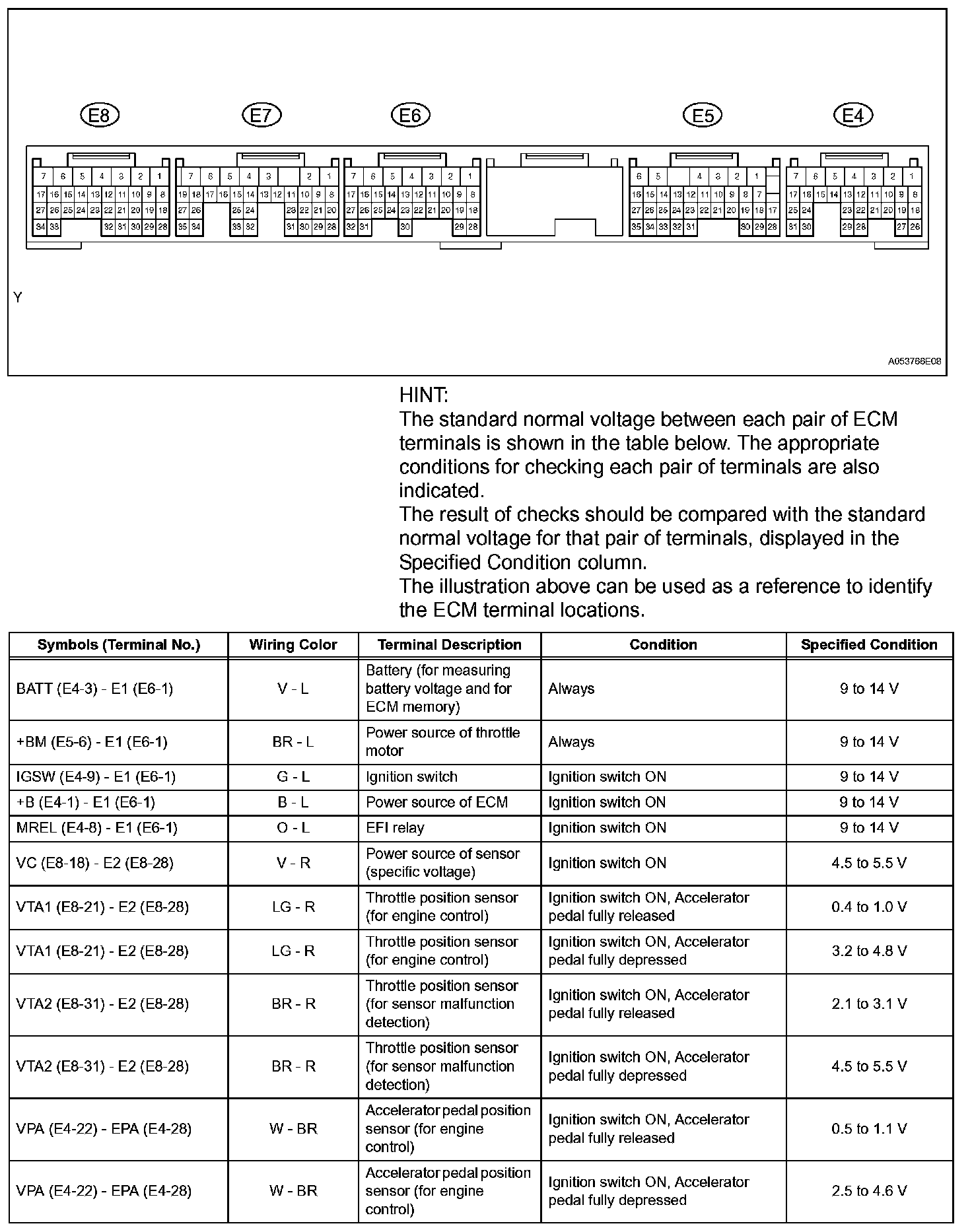

Terminals Of ECM/Pinouts (Part 1):

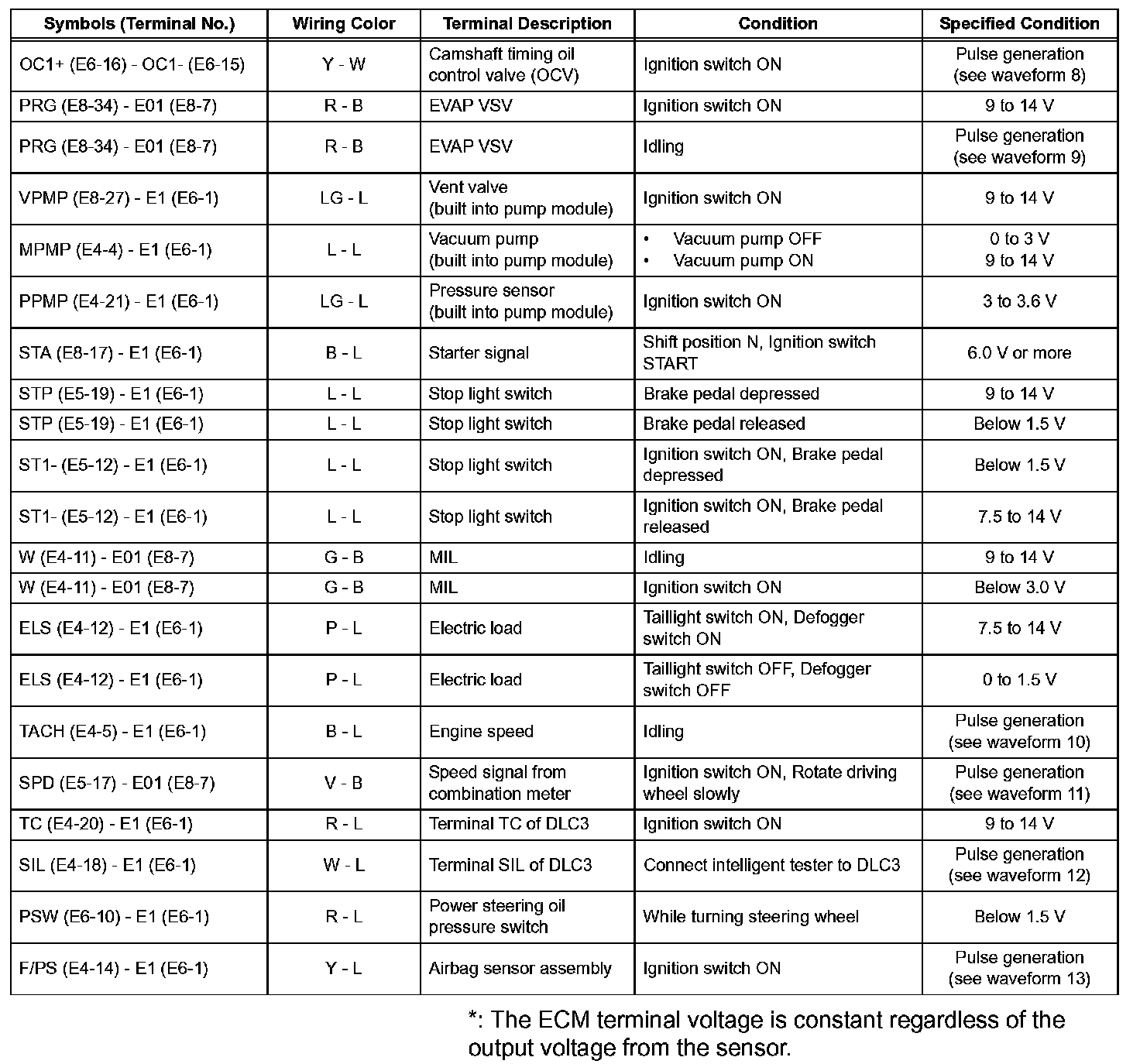

Terminal Of ECM/Pinouts (Part 2):

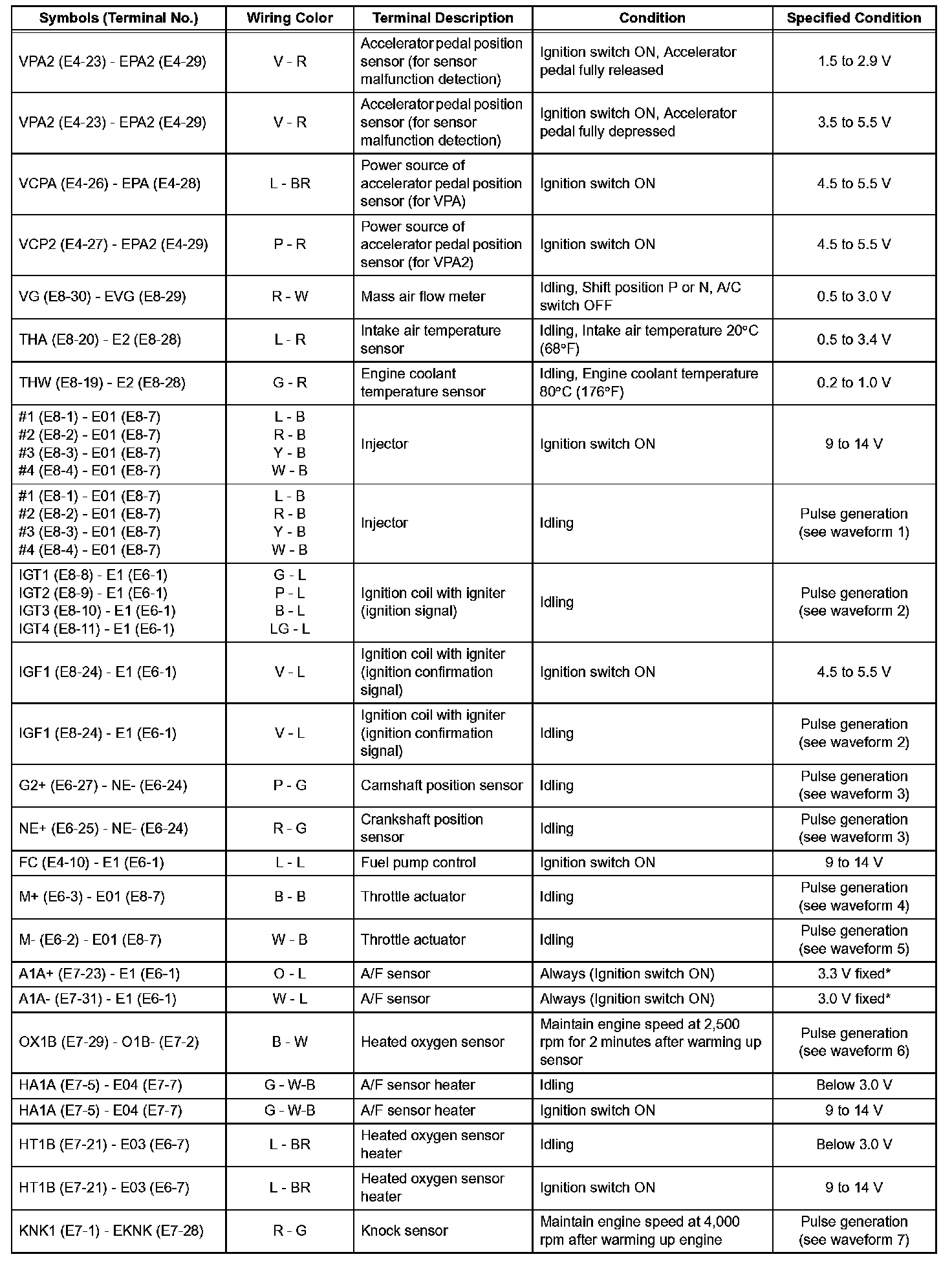

Terminal Of ECM/Pinouts (Part 3):



Oscilloscope Waveform (Part 1):

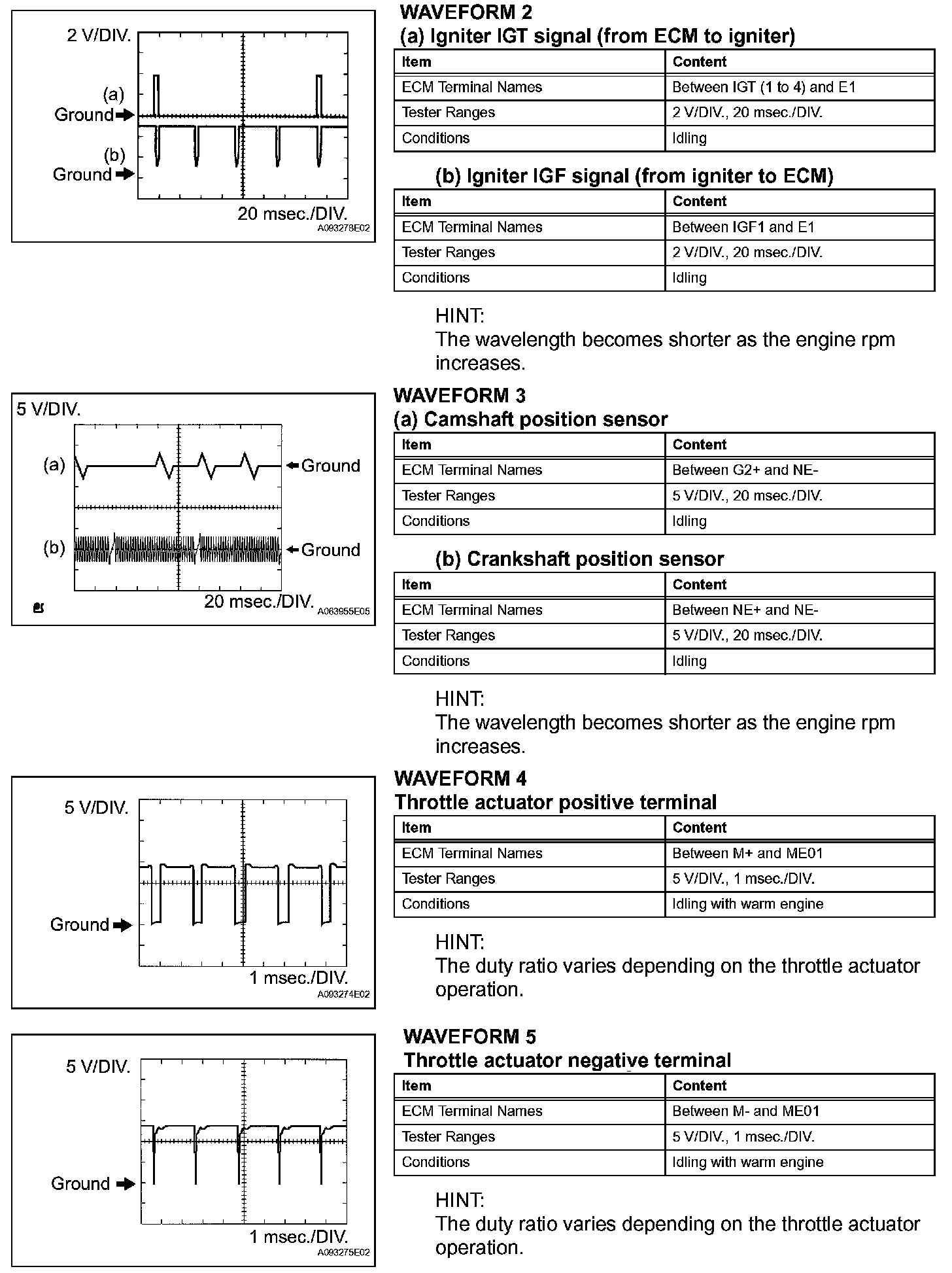

Oscilloscope Waveforms (Part 2):

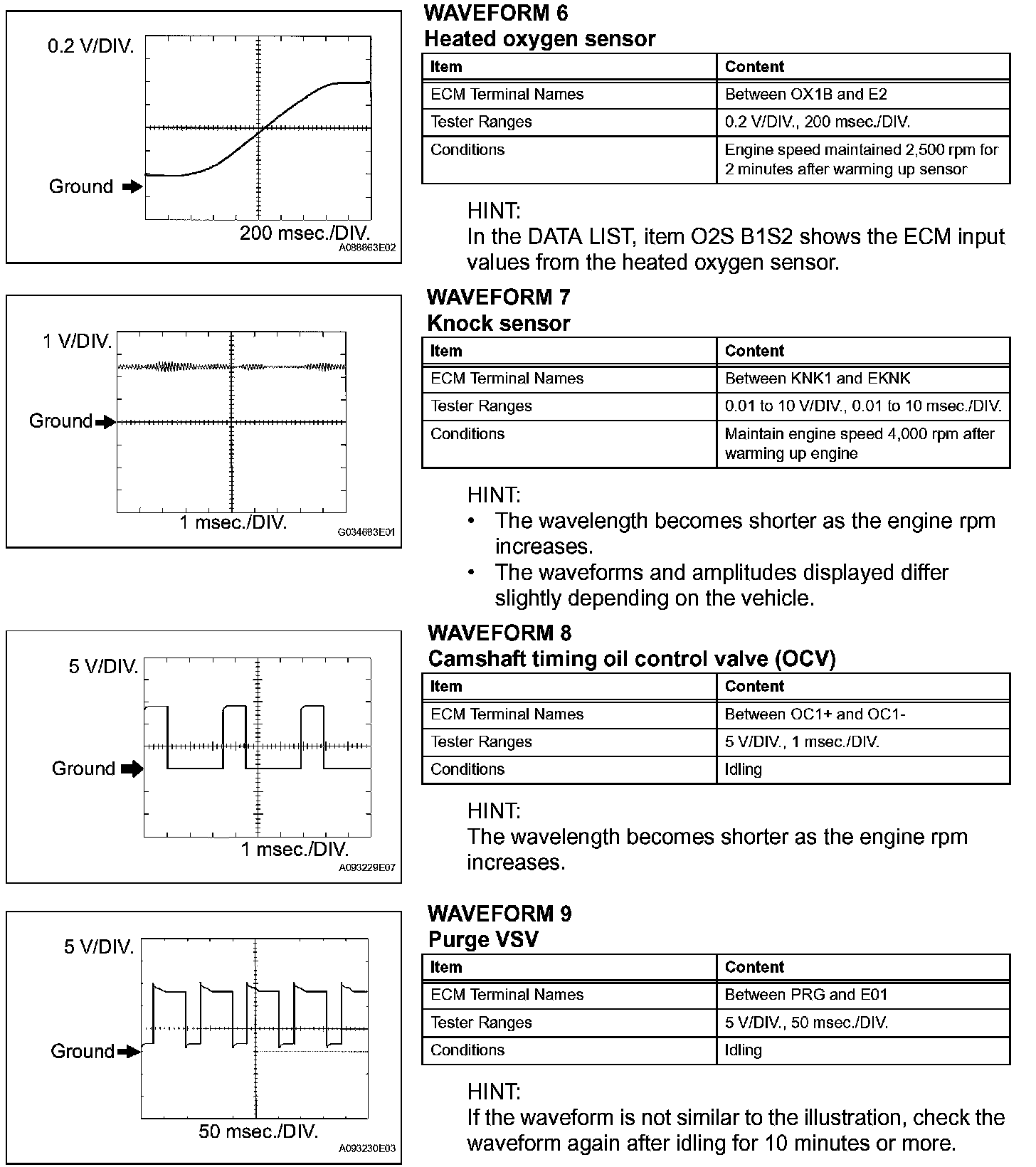

Oscilloscope Waveforms (Part 3):

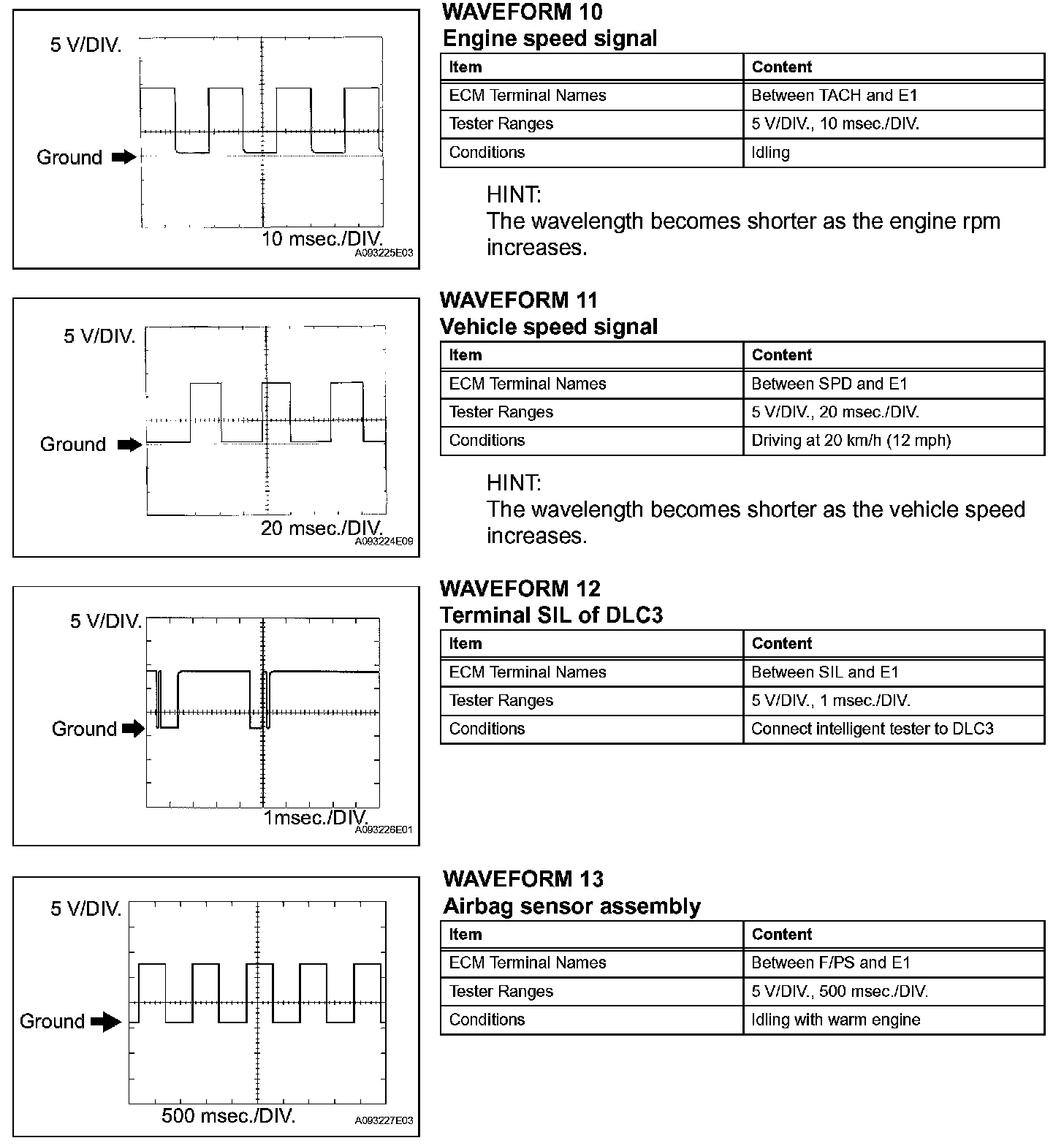

Oscilloscope Waveforms (Par 4):
