Home >> Scion >> 2006 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Diagrams >> Exploded Views

Exploded Views

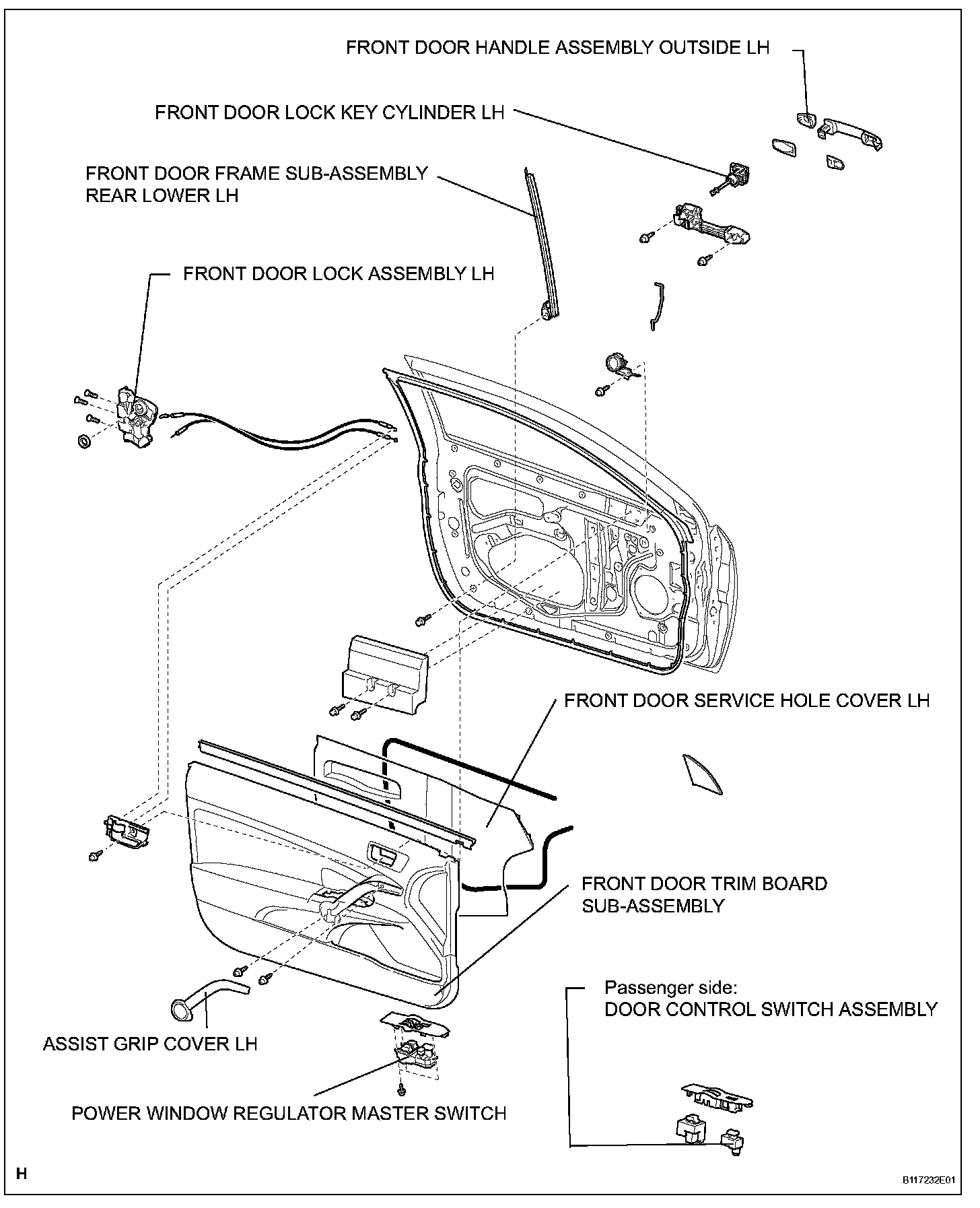

Front Door Lock:

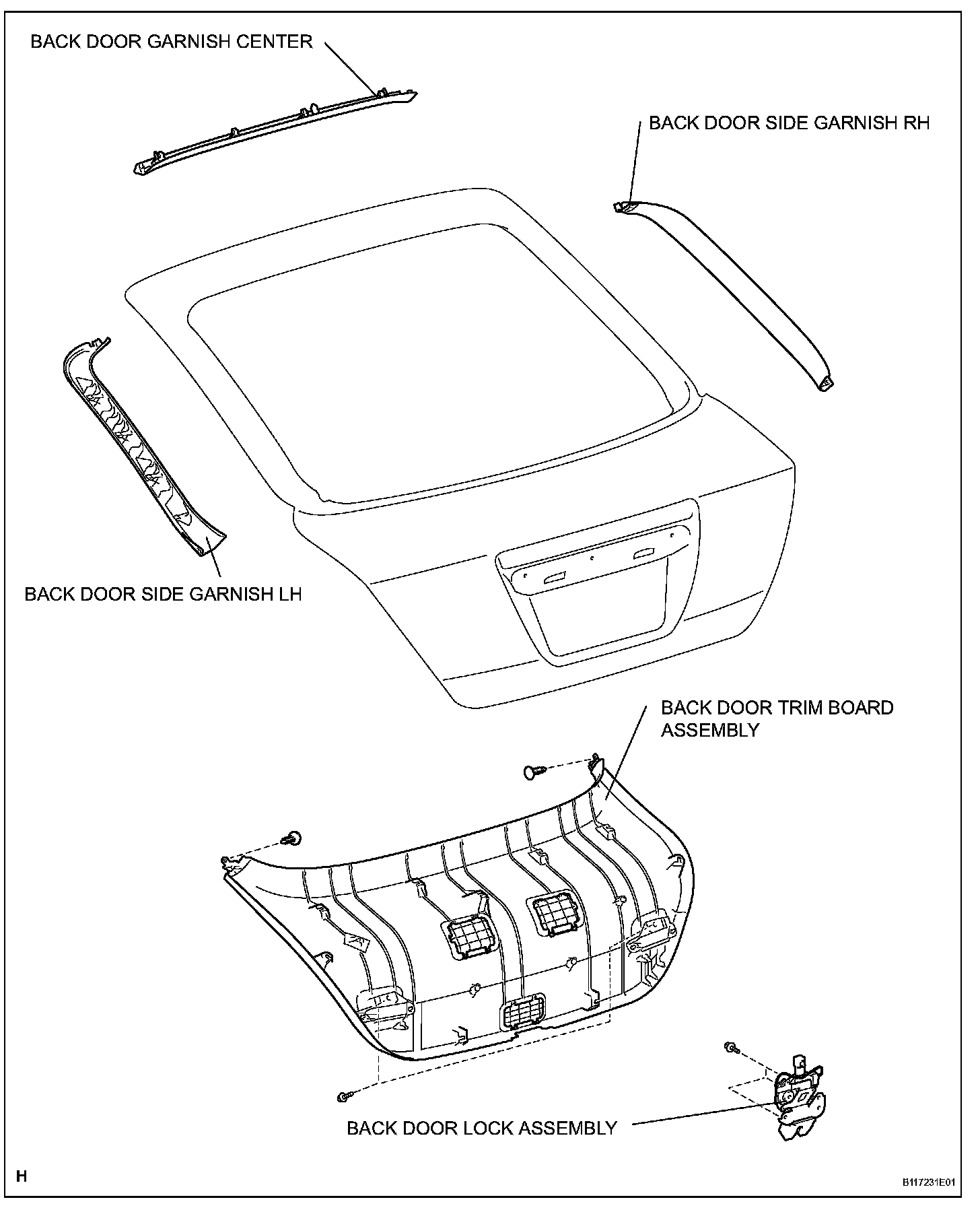

Back Door Lock:
