Scion
>>
2005
>>
xB L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Exploded Views
Exploded Views

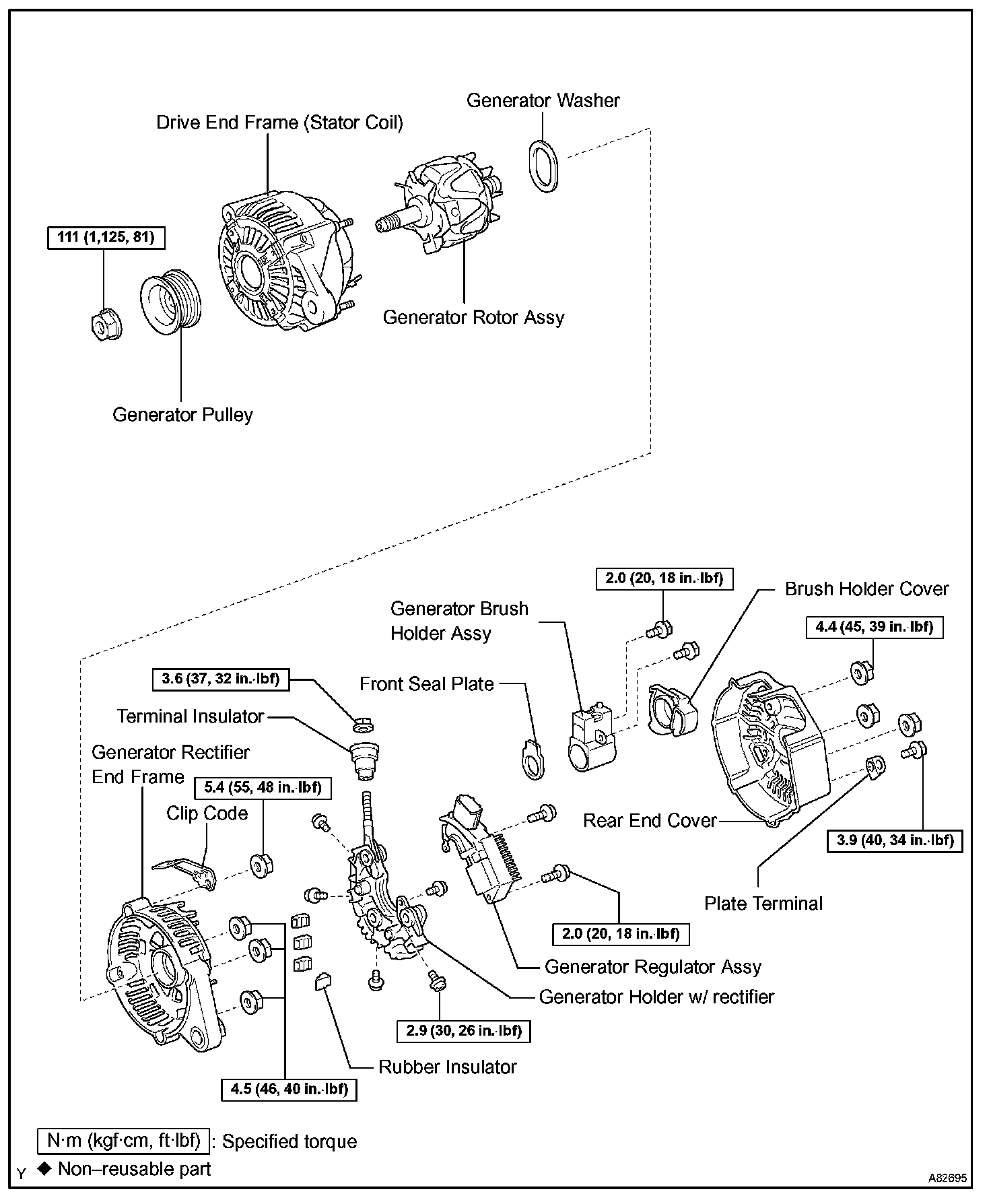

Generator Assy:
