Home >> Scion >> 2005 >> xA L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

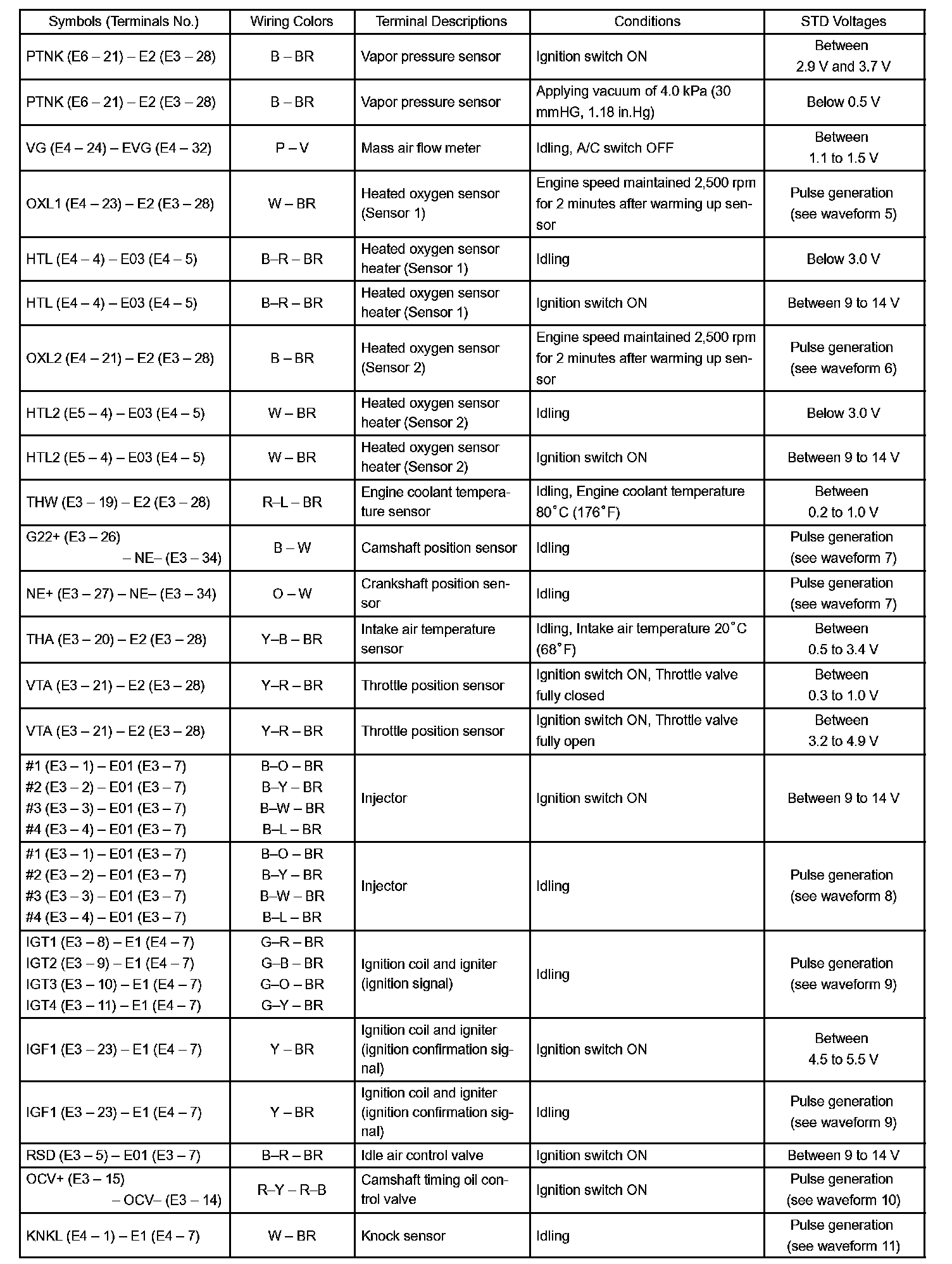

Terminals Of ECM/Pinouts Part 1:

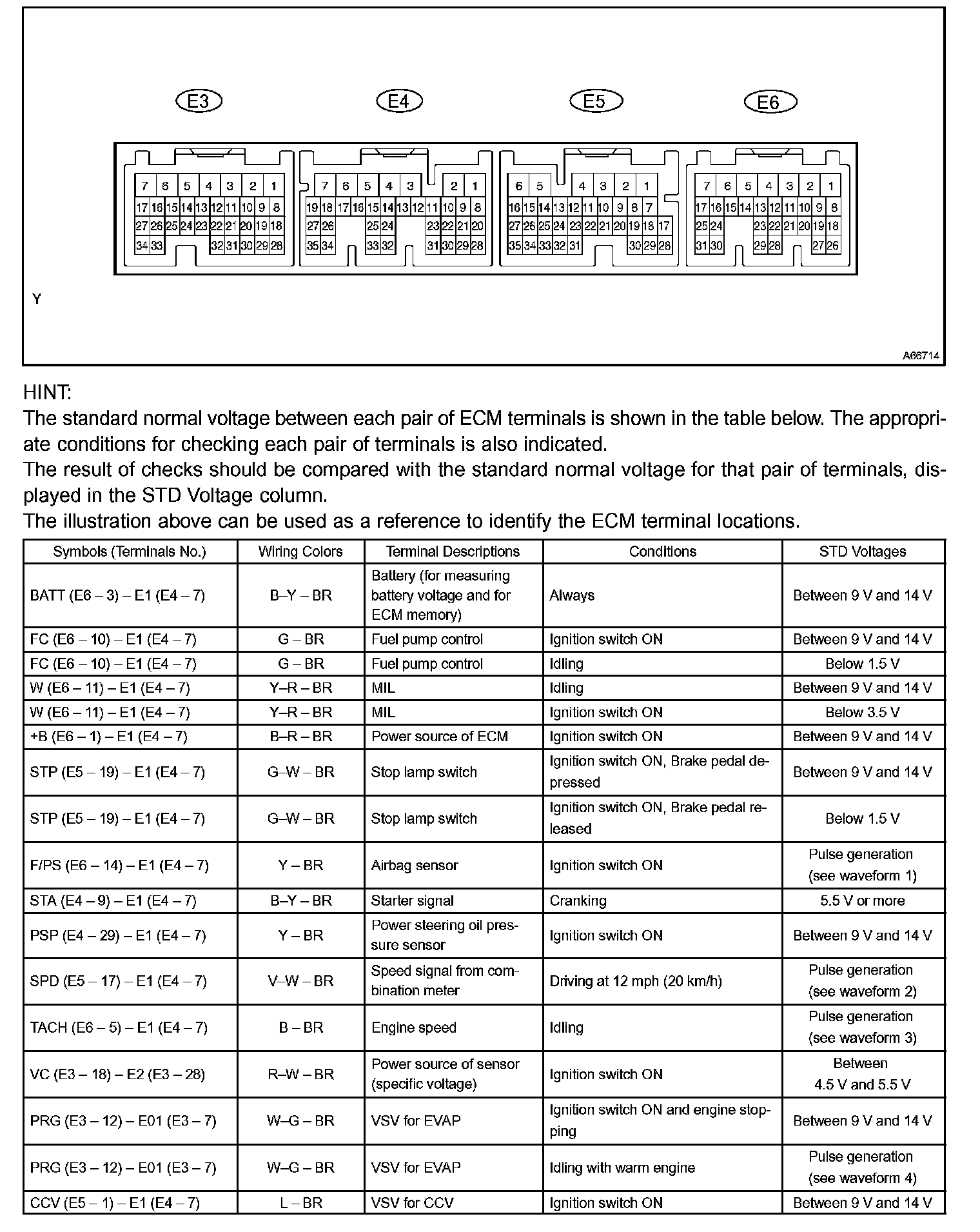

Terminals Of ECM/Pinouts Part 2:



Terminals Of ECM/Pinouts Part 3:

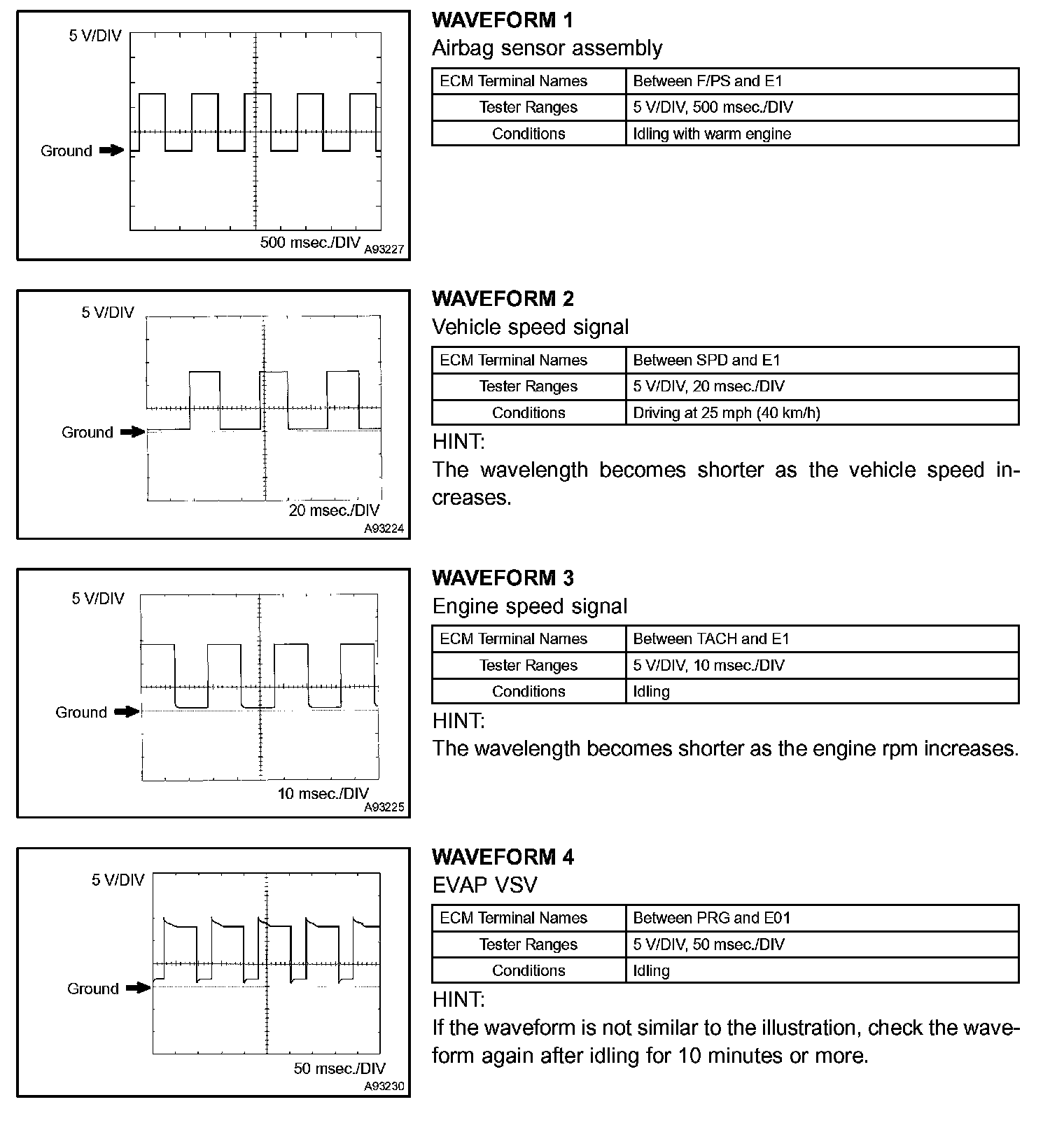

Oscilloscope Waveforms Part 1:

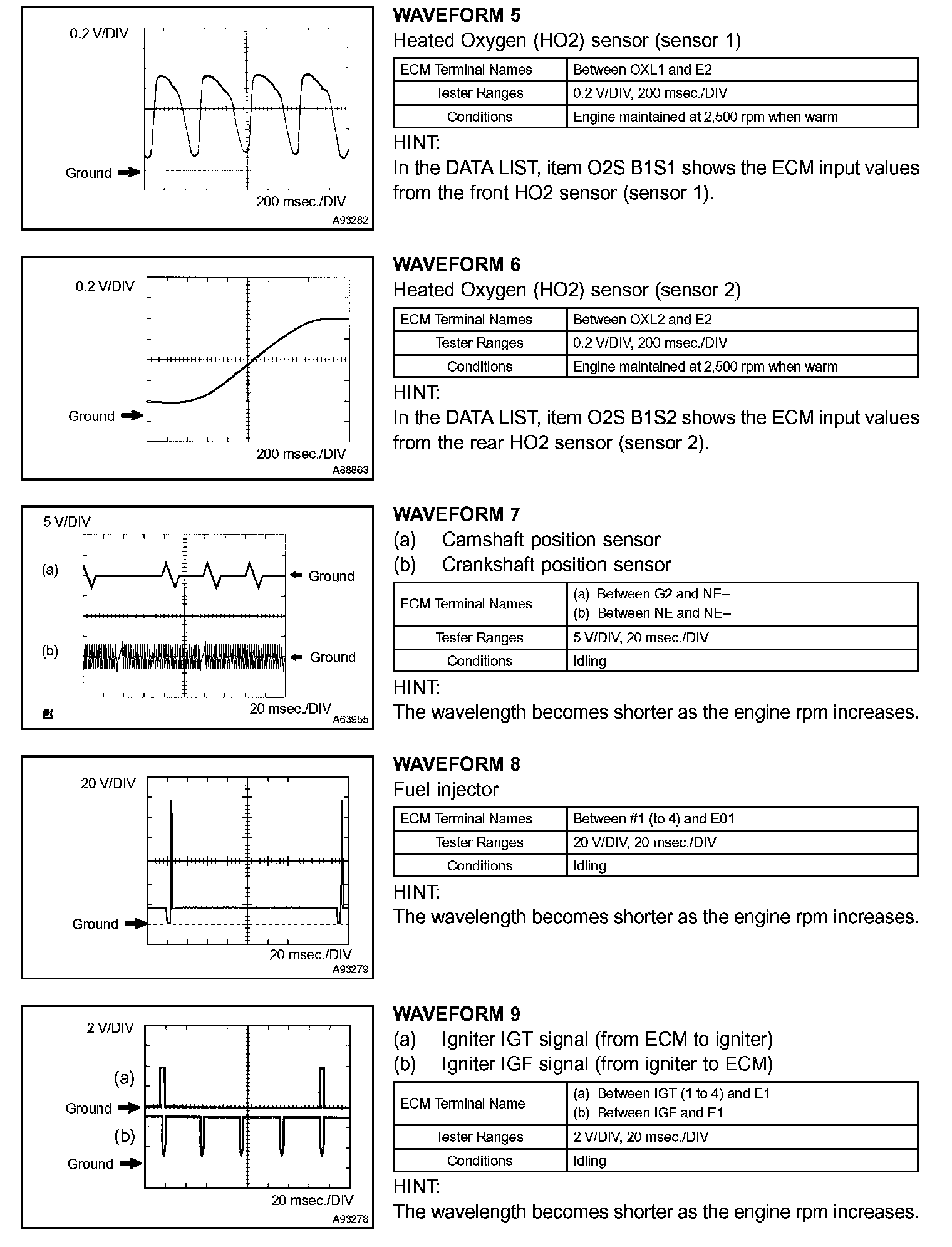

Oscilloscope Waveforms Part 2:

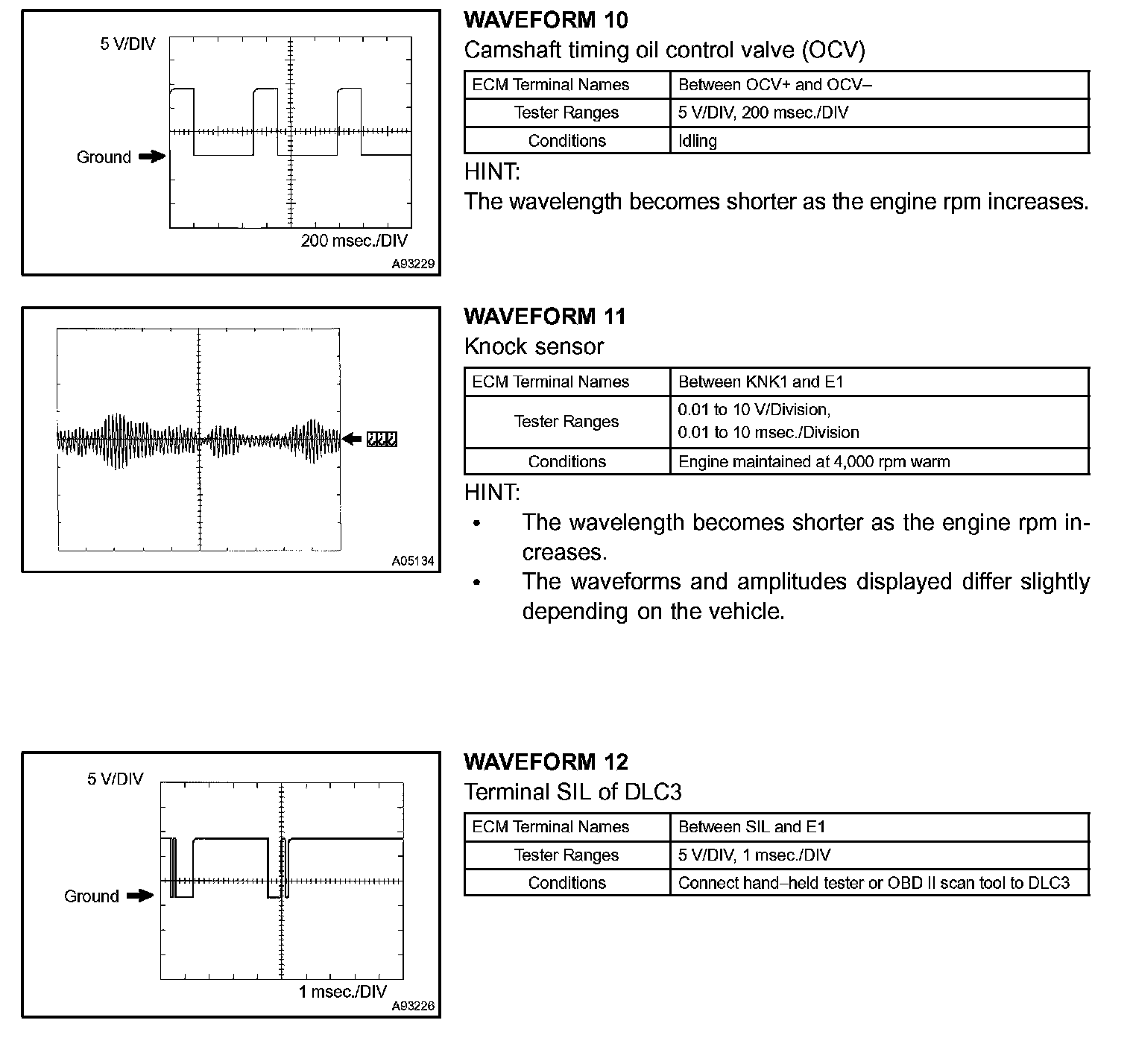

Oscilloscope Waveforms Part 3:
