Only Wireless Control Function Is Inoperative: Wiring Diagram

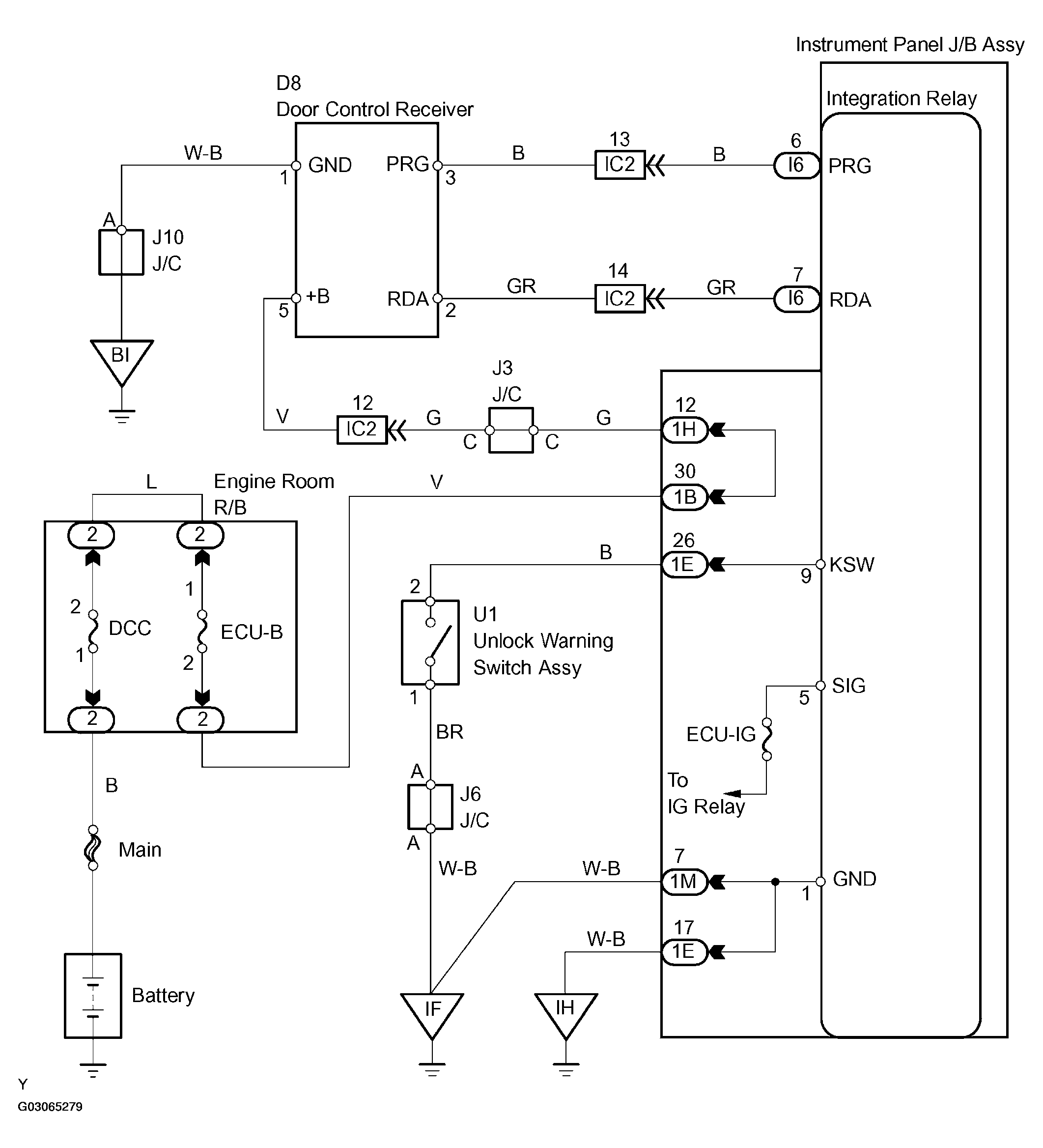

Fig 1: Identifying Wireless Control Function Wiring Diagram

G03065279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
