Terminals Of ECM

1. ECM

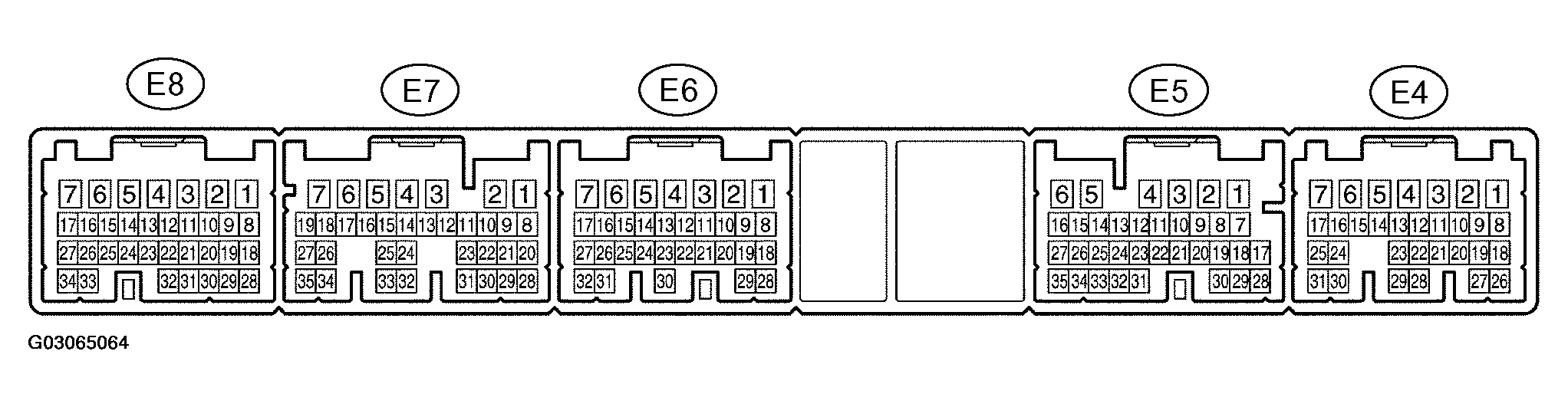

   Fig 1: Identifying Terminals Of ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Each ECM terminal's standard voltage is shown in Fig 2 .

   In the table shown in Fig 2, first follow the information under "Condition". Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specific Condition".

   Use Fig 1 as a reference for the ECM terminals.

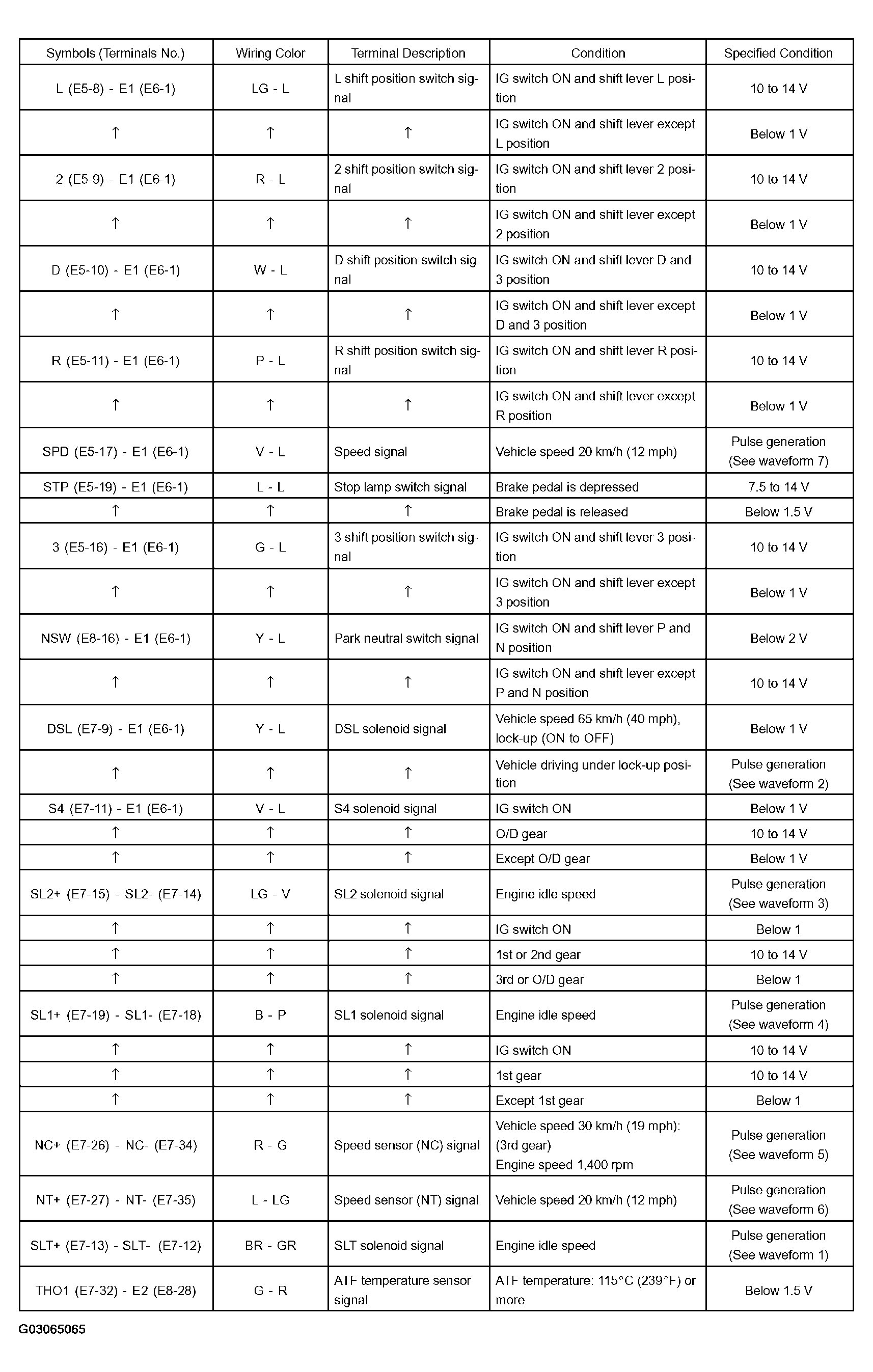

   Fig 2: Checking Voltage Between Terminals Of ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Waveform 1

REFERENCE:

Terminal	SLT+ - SLT-
Tool setting	5 V/DIV, 1 ms/DIV
Vehicle condition	Engine idle speed

Waveform 2

REFERENCE:

Terminal	DSL - E1
Tool setting	10 V/DIV, 100 ms/DIV
Vehicle condition	Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF)

Waveform 3

REFERENCE:

Terminal	SL2+ - SL2-
Tool setting	5 V/DIV, 1 ms/DIV
Vehicle condition	Engine idle speed

Waveform 4

REFERENCE:

Terminal	SL1+ - SL1-
Tool setting	5 V/DIV, 1 ms/DIV
Vehicle condition	Engine idle speed

Waveform 5

REFERENCE:

Terminal	NC+ - NC-
Tool setting	1 V/DIV, 1 ms/DIV
Vehicle condition	Vehicle speed 30 km/h (19 mph): (3rd gear)
	Engine speed 1,400 rpm

Waveform 6

REFERENCE:

Terminal	NT+ - NT-
Tool setting	5 V/DIV, 0.5 ms/DIV
Vehicle condition	Vehicle speed 20 km/h (12 mph)

Waveform 7

REFERENCE:

Terminal	SPD - E1
Tool setting	5 V/DIV, 20 ms/DIV
Vehicle condition	Vehicle speed 20 km/h (12 mph)
