Home >> Scion >> 2004 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

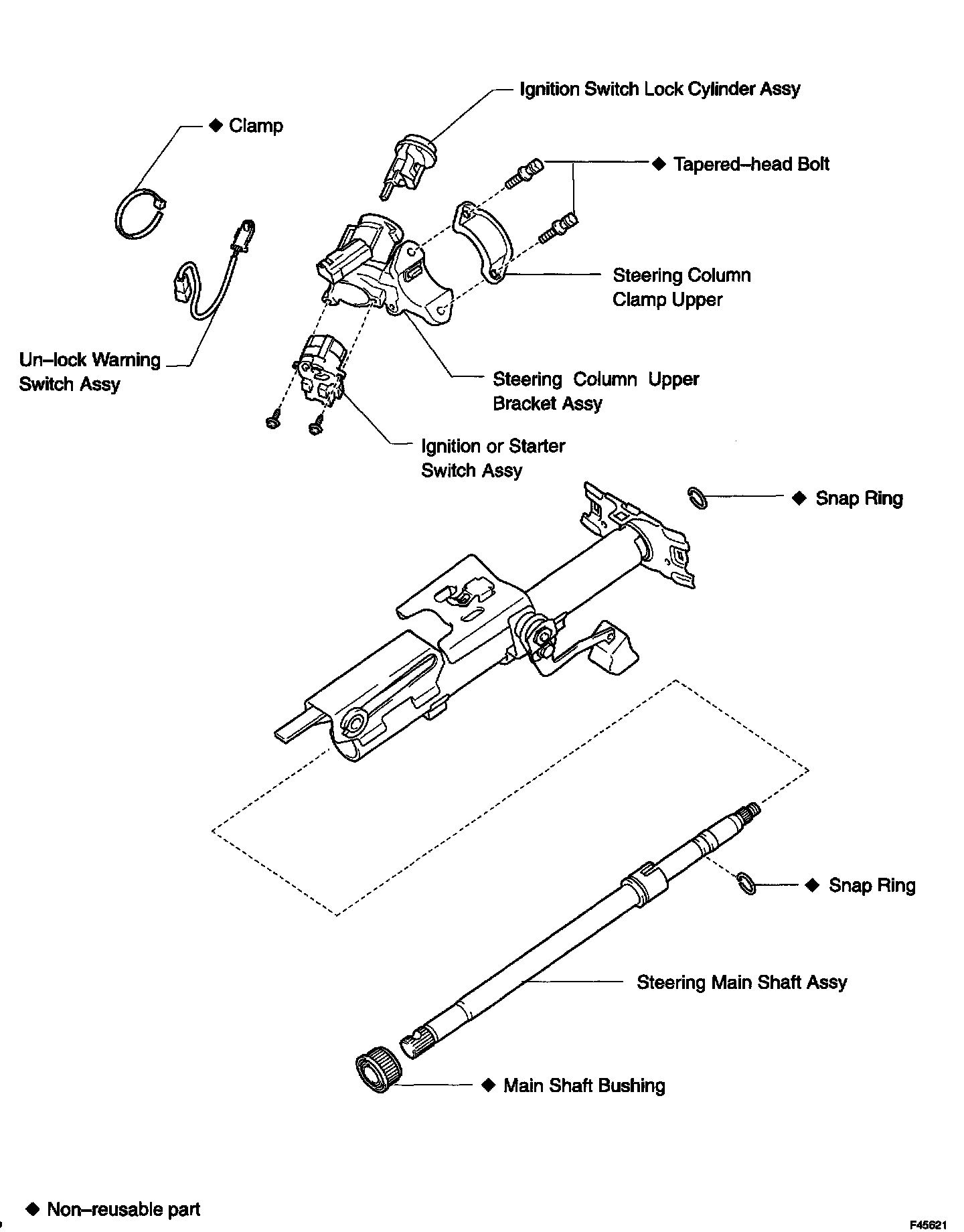

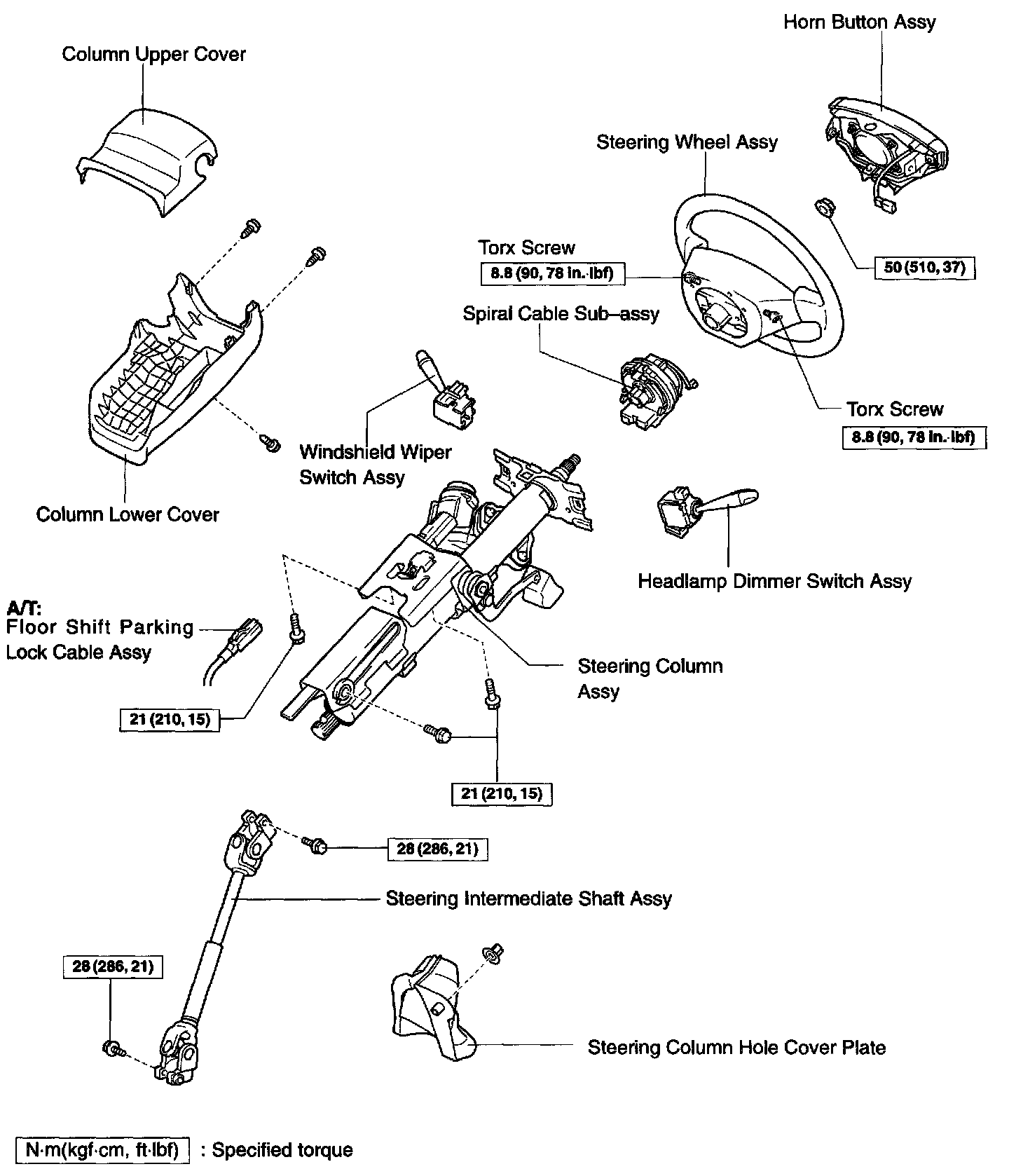

STEERING COLUMN ASSY OVERHAUL W/ RELATED COMPONENTS
