Shift Lock Control Switch (ATM): Inspection

INSPECT SHIFT LOCK CONTROL SWITCH
1. Disconnect the connector of the shift lock control switch.
2. Measure the resistance according to the value(s) in the table below.

  Fig 1: Identifying Connector A And Connector B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Resistance Measuring Specified Value Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect terminal STP to the battery positive (+) terminal and terminal E to the battery negative (-) terminal, and apply about 12 V between terminals STP and E.
4. Measure the resistance according to the value(s) in the table below.

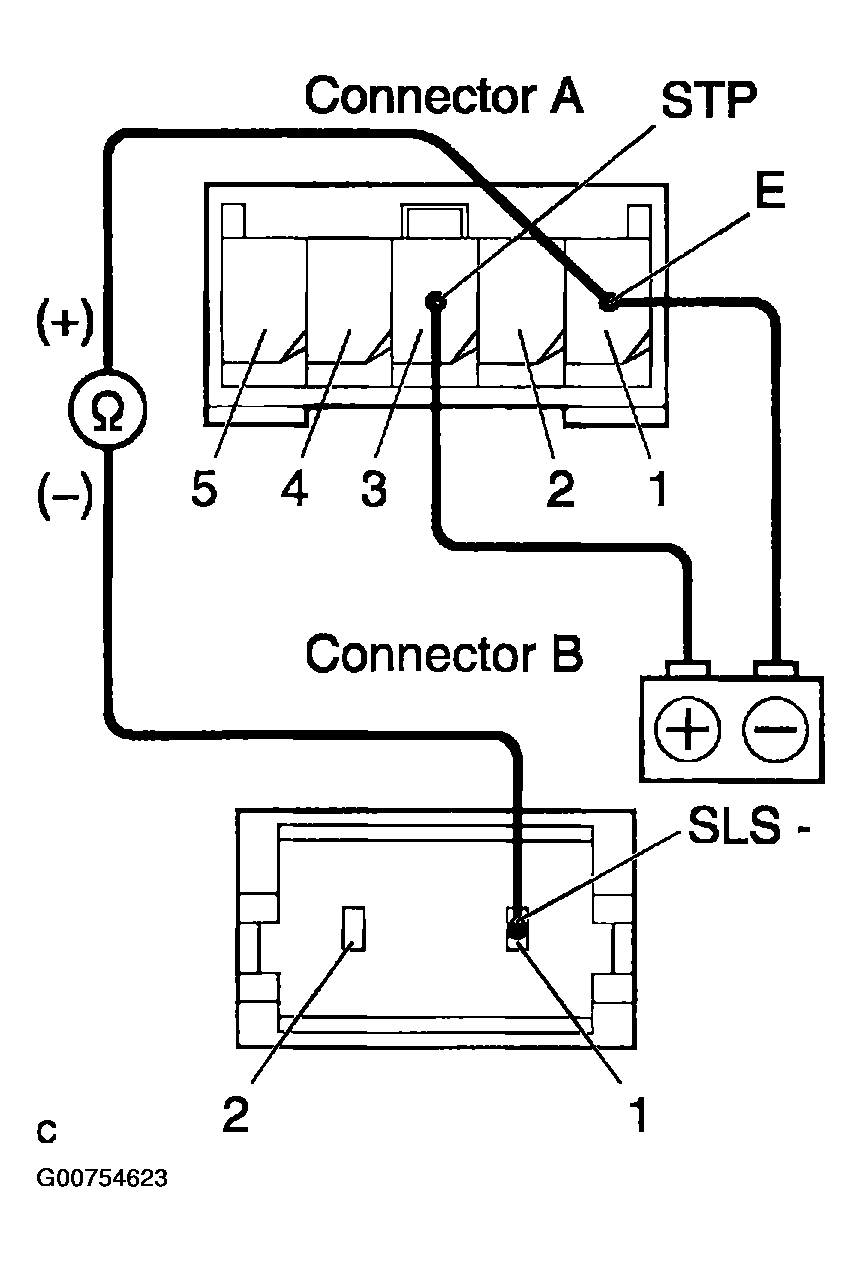

Fig 3: Connecting Terminal STP To Battery Positive (+) Terminal And Terminal E To Battery Negative (-) Terminal, And Apply About 12 V Between Terminals STP And E
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Measuring Resistance Specified Value Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
